Description

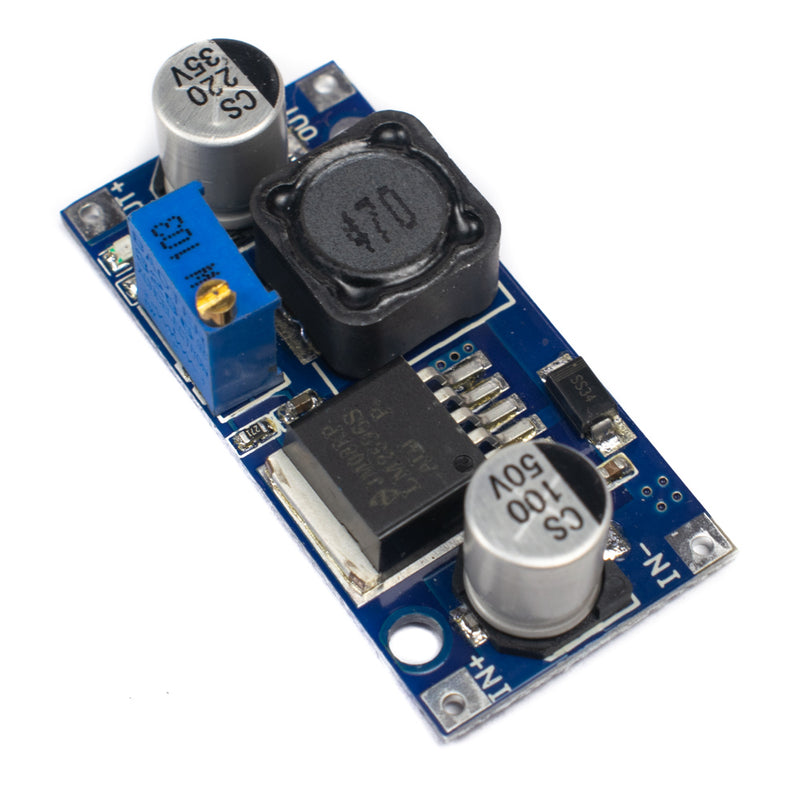

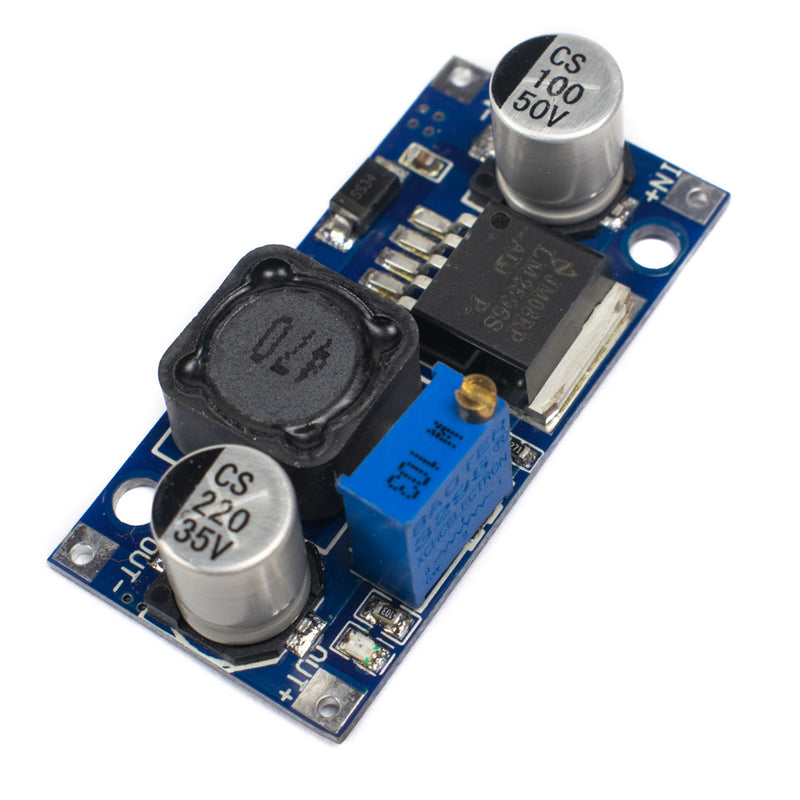

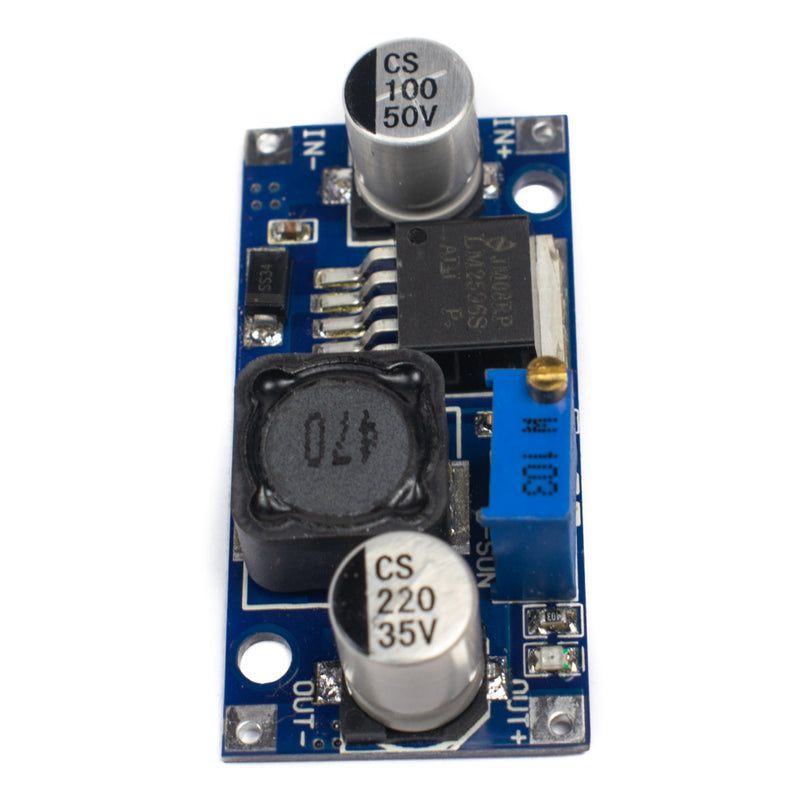

DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.
Specifications:
- Input voltage: 3-40V
- Output voltage: 1.5-35V(Adjustable)
- Output current: Rated current is 2A, maximum 3A
- Switching Frequency: 150KHz
- Operating temperature:Industrial grade (-40 to +85 )
- Conversion efficiency: 92%(highest)
