Description
It is a Dual Operational Transconductance Amplifiers With Linearizing Diodes and Buffers. Each of the two current 2 regulated transconductance amplifiers in the LM13700 series has differential inputs and a push-pull output. The two amplifiers share a common power supply but are otherwise independent.
At the inputs, linearizing diodes are used to reduce distortion and allow for larger input levels. High-impedance buffers are included, which are specifically designed to complement the amplifiers' dynamic range.
Features
- gm Adjustable over 6 Decades
- Excellent gm Linearity
- Excellent Matching between Amplifiers
- Linearizing Diodes
- High Impedance Buffers
- High Output Signal-to-Noise Ratio
Specification

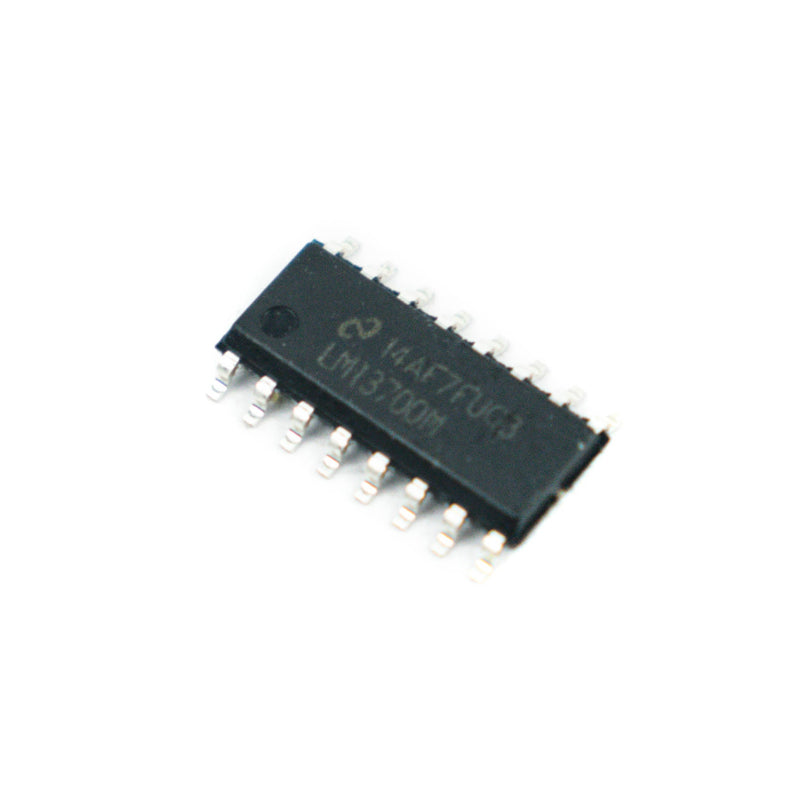

| Model | LM13700 |
| MOUNTING STYLE | SMD |
| Type | Transconductance Amplifiers |
| Supply Voltage | 18V |
| Output Current per Channel | 20 mA |
| Quantity | 100 |
| Country of Origin | China |
