Description

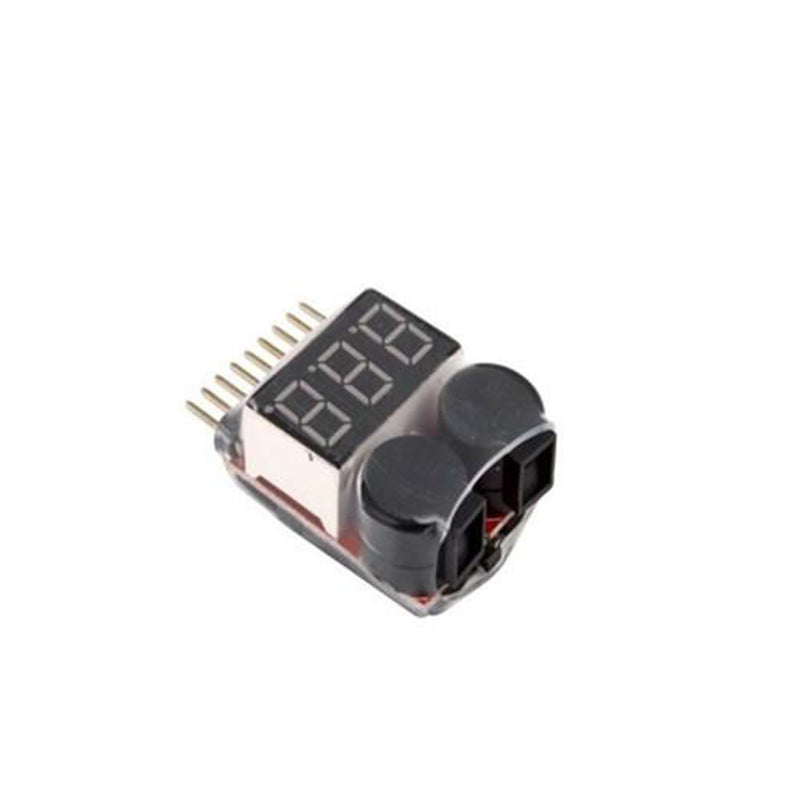

LiPo Battery Voltage Checker 1S-8S comes with a buzzer and a red LED light which alerts when the output voltage of the Lithium Polymer battery packs drops below the set threshold. 1S-8S Battery Voltage checker displays the output voltage of the LiPo battery pack and output voltage of the individual battery cells on a LED Display. This Battery Voltage Checker can check the voltage of batteries with up to 8 cells in them. The alarm is set for each of the battery cells in the range of 2.7V to 3.8V by increments of 0.1V by pressing the mode button present on the top of the voltage checker. The alarm can be turned OFF if not required. It is also compatible with several Li-Fe, Li-Ion and LiMn batteries. Voltage Checker 1S-8S has 9 male pins for connecting batteries to it. While connecting the battery to the voltage checker make sure ground is connected to the first pin(leftmost) of the voltage checker.
Specifications
| Alarm Set Range(V) | 2.7-3.8 |
| Battery Input | 1S-8S Battery |
| Battery Type | LiPO/LiFe/Li-Ion/LiMn |
| Cell Voltage Display Range(V) | 0.5-4.5 |
| Total Voltage Display Range | 3.7V-36V DC |
| Dimension (LxWxH) | 40x25x12 (mm) |
| Country of Origin | China |
