4inch IPS Capacitive Touch Display, 480×480 Pixels for Luckfox Pico Ultra

Save 6%
Sold By: HNHSKU: THR-362

Price:
Sale price₹ 2,530.00 Regular price₹ 2,699.99

Tax included Shipping calculated at checkout

Out of stock

Description

4inch IPS Capacitive Touch Display

480x480 Pixels, RGB Communication Interface,
Compatible With Luckfox Pico Ultra Development Board

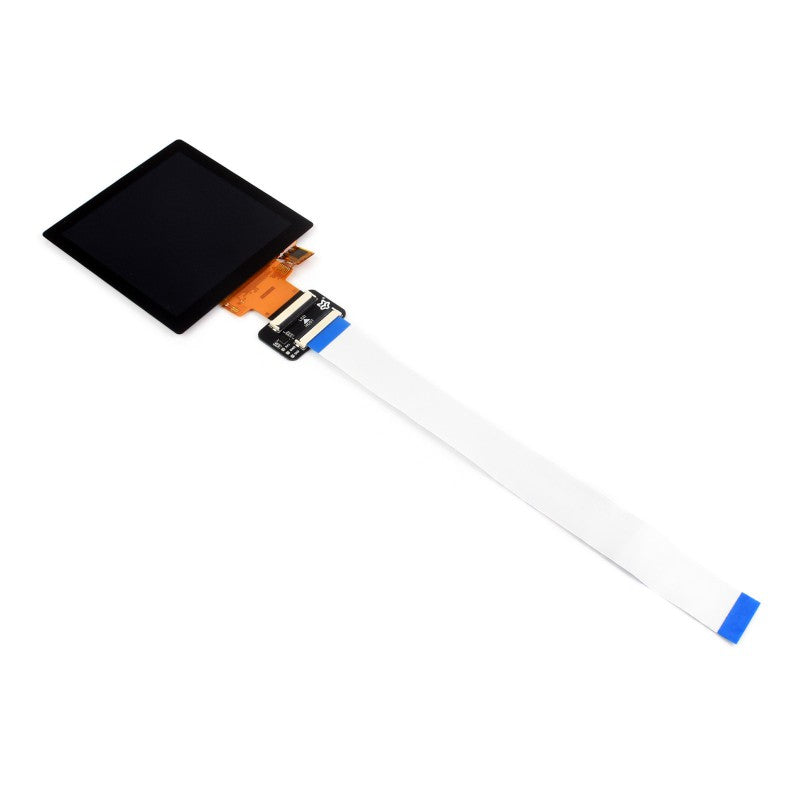

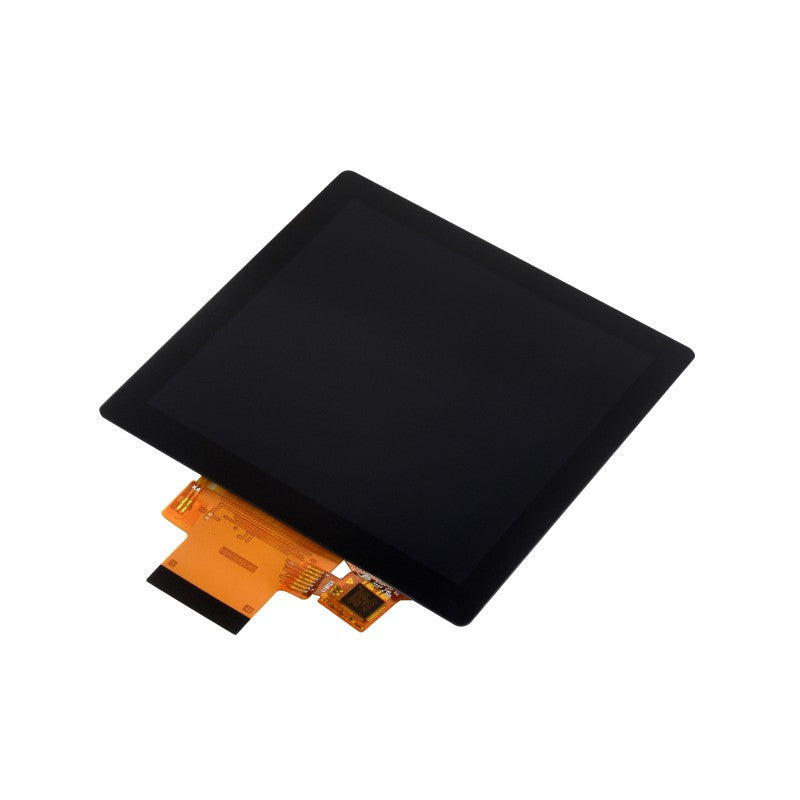

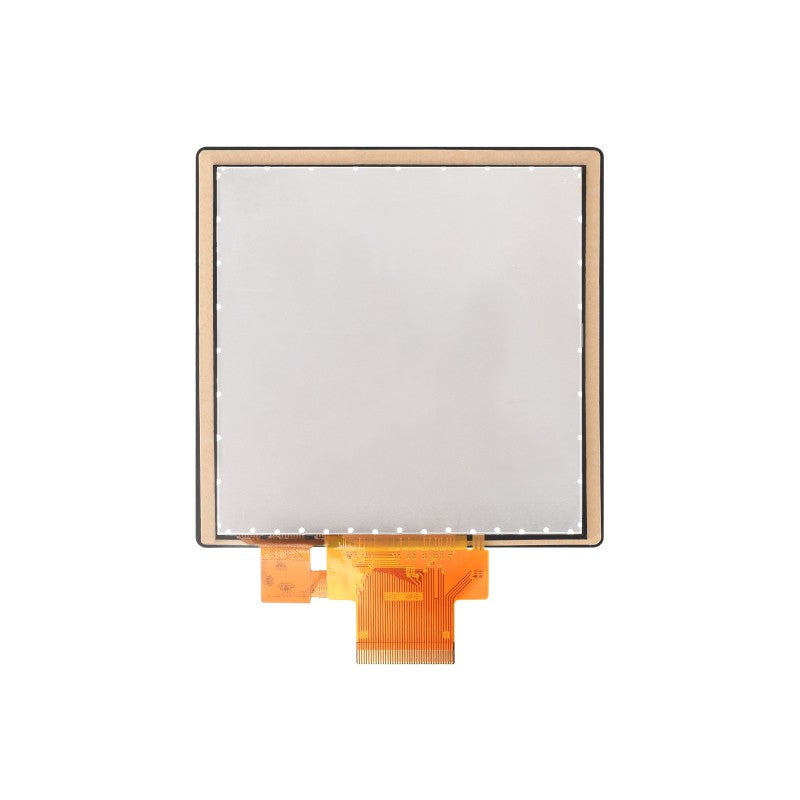

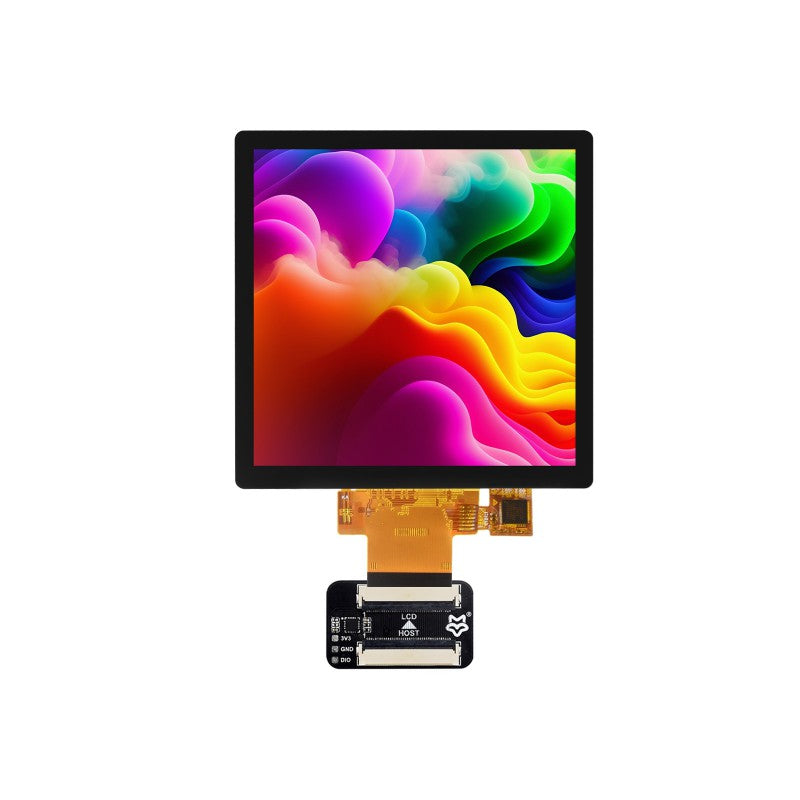

LF40 480480 ARK, front view LF40 480480 ARK, features



Product Specifications

Size 4" Resolution 480×480
Display Panel IPS Viewing Angle 160°
Touch Type Capacitive Touch Chip GT911
Brightness 400cd/m² Contrast ratio 380:1
Outline Dimension 84.2×84.2mm (H×V) Display area 71.86×70.18mm (H×V)
Pixel pitch 0.1497×0.1462mm (H×V) Operation temperature -20~70°C
Communication Interface RGB666 - -



Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 480480 ARK, capacitive touch



Usage example

* for reference only, the Luckfox Pico Ultra W is NOT included

LF40 480480 ARK, usage example


Outline dimensions

LF40 480480 ARK, dimensions



Selection Guide

PRODUCT SIZE RESOLUTION DISPLAY PANEL DISPLAY COLOR GAMUT BRIGHTNESS CONTRAST RATIO OUTLINE DIMENSION (mm) DISPLAY AREA (mm) COMMUNICATION INTERFACE
LF40-480480-ARK
LF40-480480-ARK
4" 480×480 IPS - 400cd/m² 380:1 84.2×84.2 71.86×70.18 RGB666
LF40-720720-ARK
LF40-720720-ARK
4" 720×720 IPS 68% NTSC 400cd/m² 1000:1 84.0×84.0 71.93×71.93 RGB666



Resources

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-Ultra-RGB-Screen/



Package Contains:

Weight: 0.041 kg

LF40-480480-ARK ×1

LF40 480480 ARK
