Description

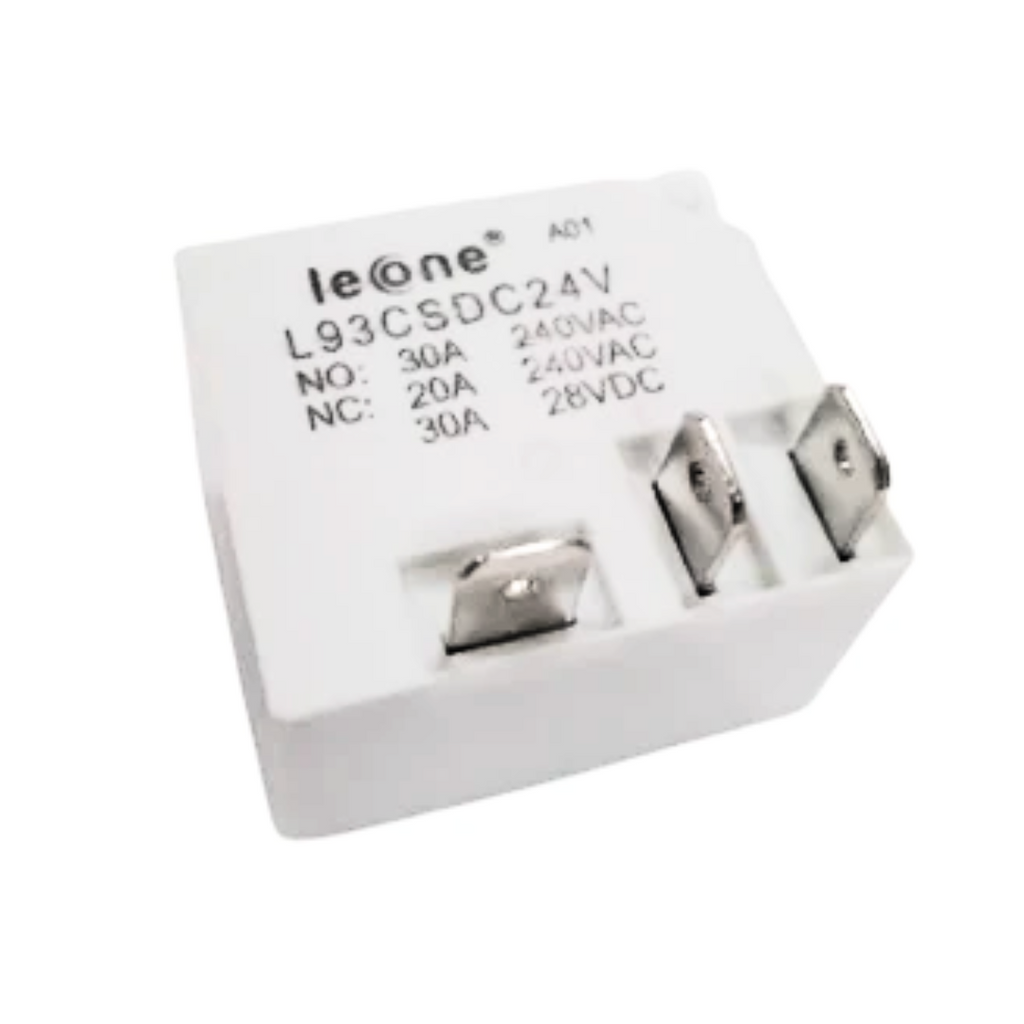

It's a Box Type general-purpose Relay 24V DC 30A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
| Specifications | |
|---|---|
| Colour | White |
| Input Voltage | 240V AC |
| Model No | L93CSDC24V |
| Voltage rating | 24V DC |
| Type | Relay |
| Current | 30A |
| Mounting Style | Through Hole |
| Dimension | 32x31x26mm |
| No of Pins | 5 |
