Description

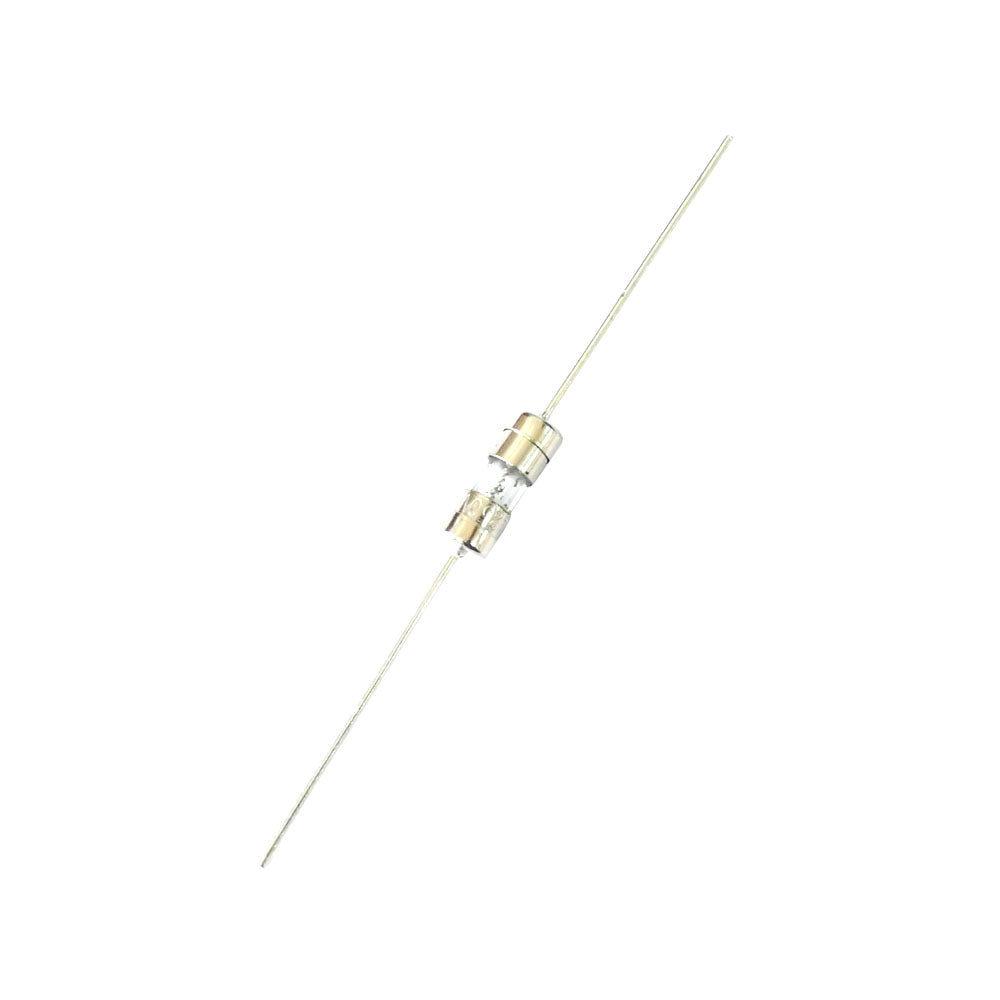

A miniature fuse is an electrical safety device that is used to protect electronic circuits and equipment from overcurrent conditions. Miniature Glass fuses are ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown, it will need replacing to make the circuit complete and allow the flow of current. Miniature fuses are commonly used in electronic devices such as computers, audio equipment, and power supplies, as well as in automotive and medical applications.
Features:
- High Current Ratings
- Fast-Acting
- Reliable Protection
- Protects electronic circuits and equipment from overcurrent conditions.
Application:
- Power Supplies
- Industrial Control Systems
- Automotive
- Consumer Electronics
- Audio equipment
Specifications
| Brand | Leone |
| Model | Leone T5A/250VUL 3610 |
| Type | Miniature Fuse |
| Rated voltage | 250V AC |
| Rated Current | 5A |
| Resistance | 0.3 Ohm |
| Mounting | Through-hole |
| Material | Glass |
| Leads Material | Tin-plated Copper |
| Terminal Type | Ferrule |
| Size | 3.6x10mm |
| Quantity | 20 pcs |
| Country of Origin | China |
