Description

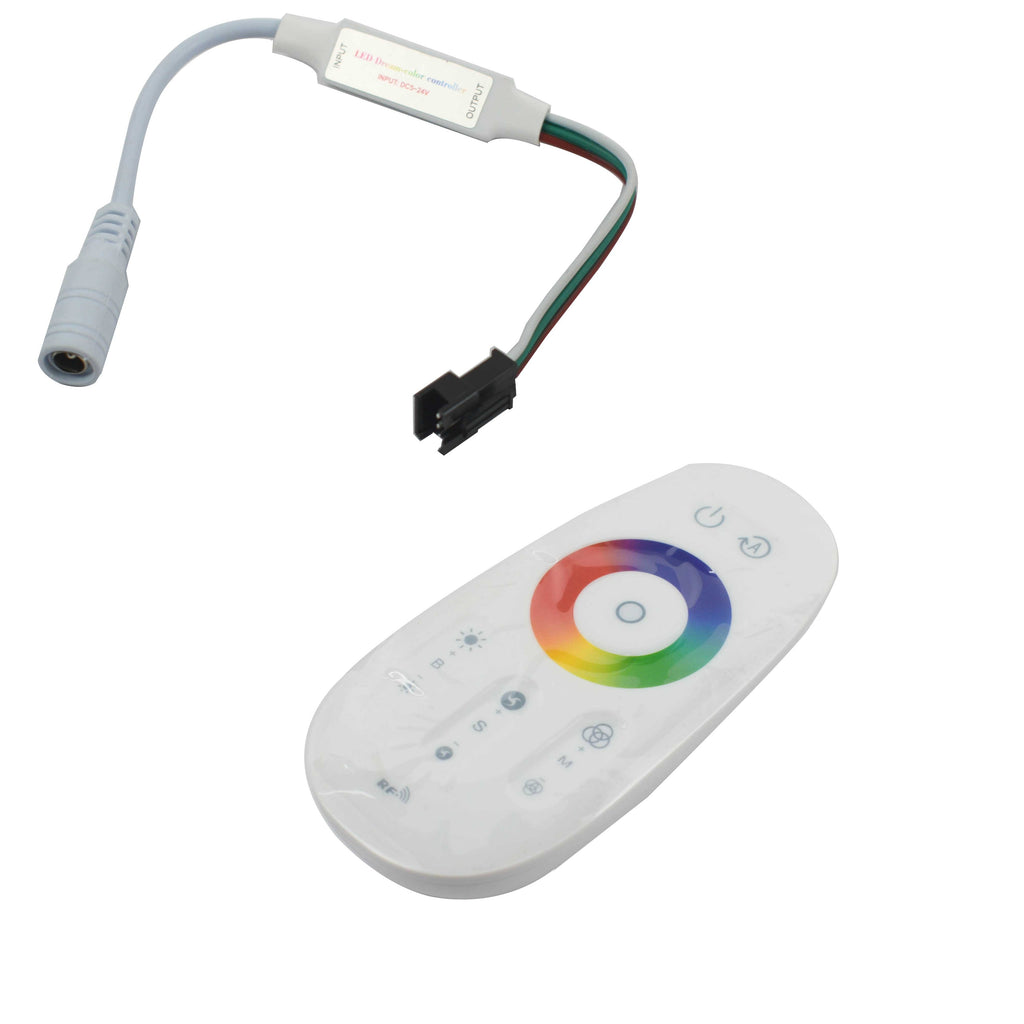

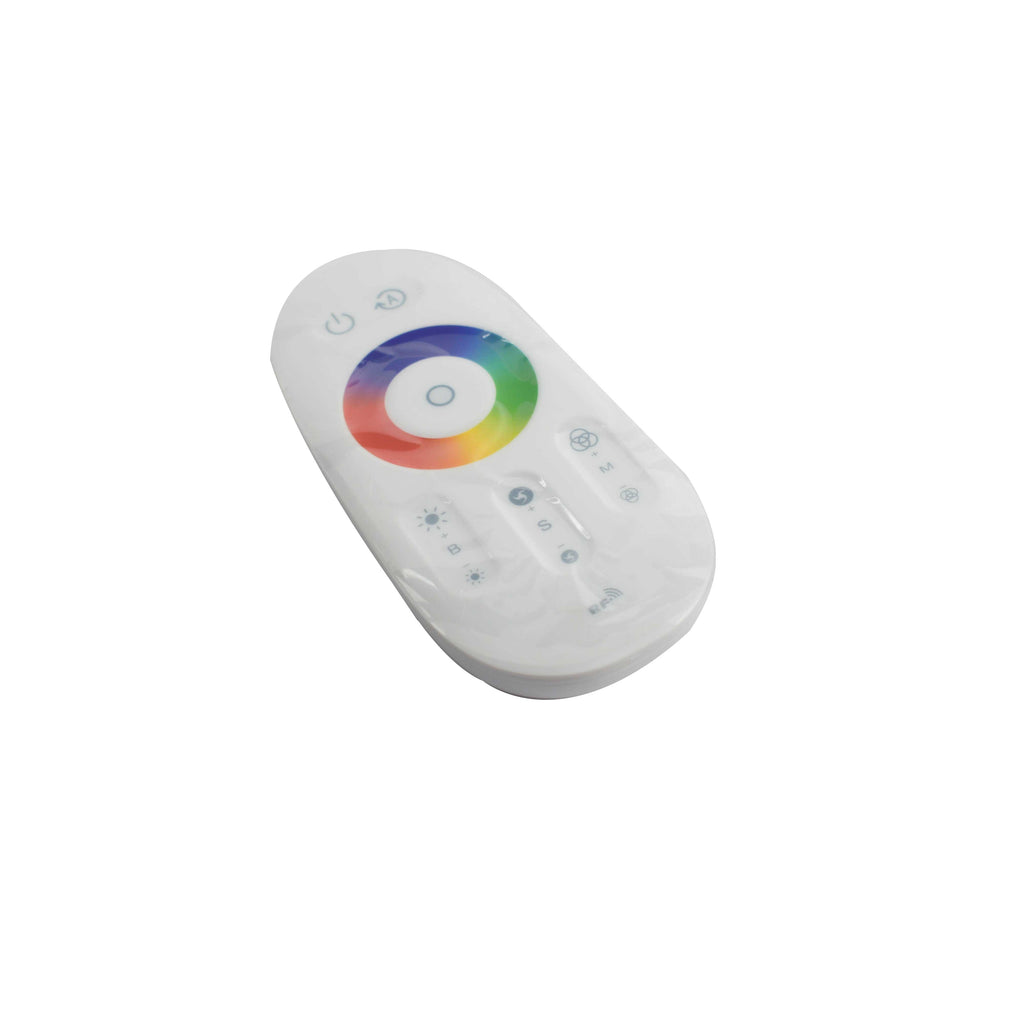

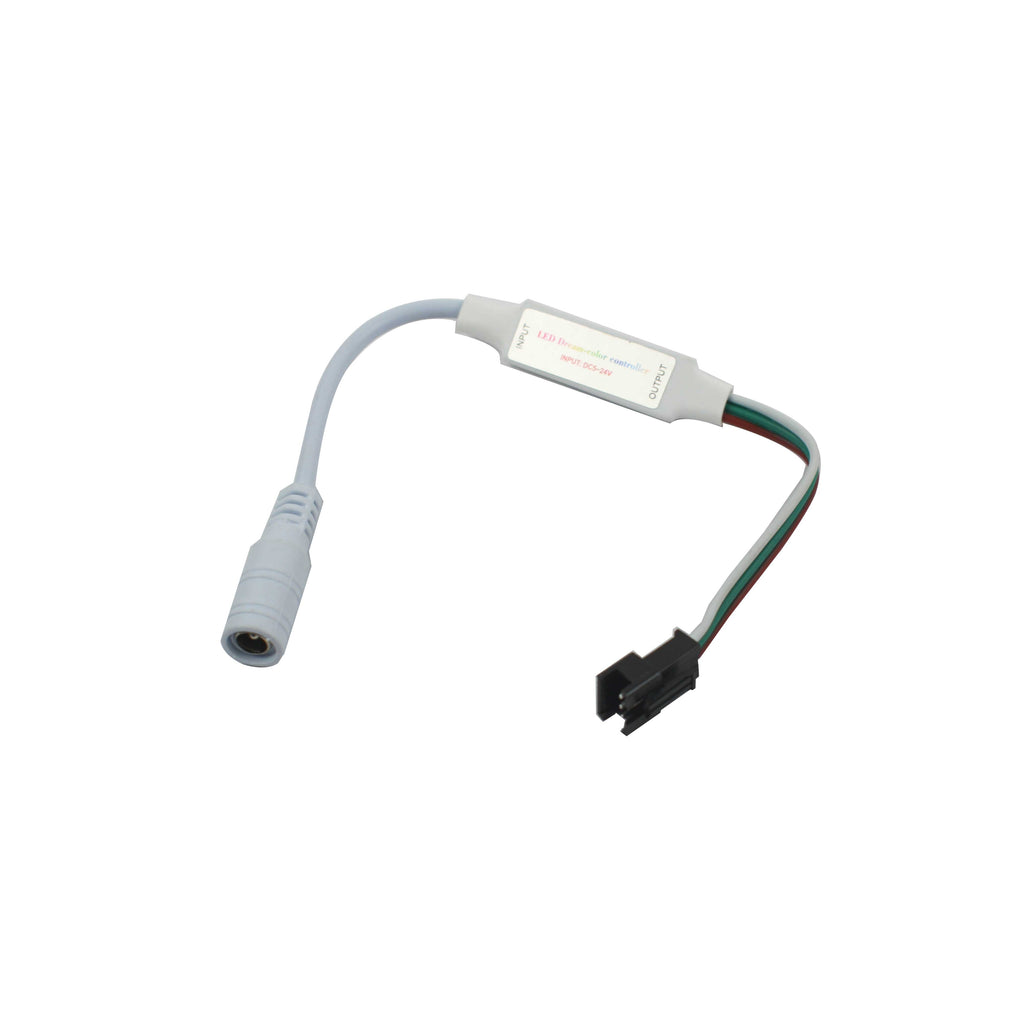

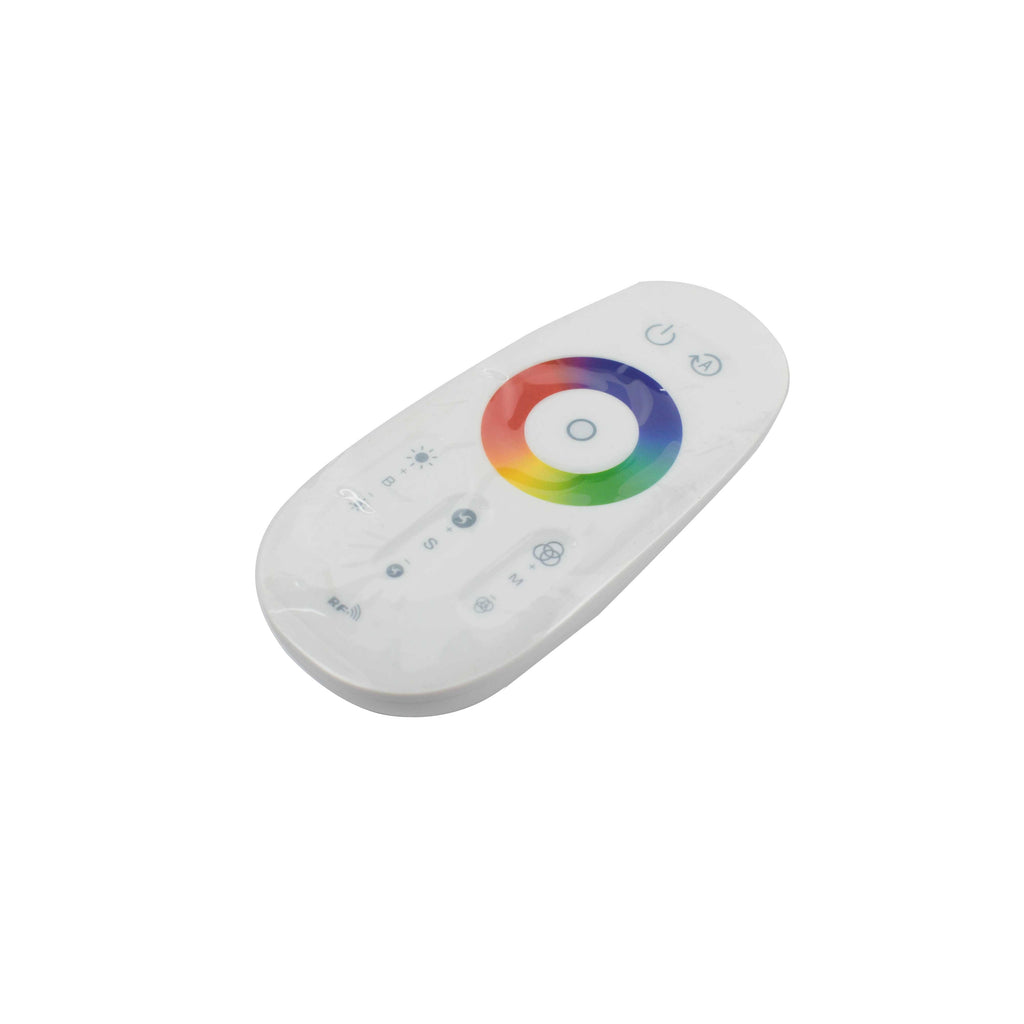

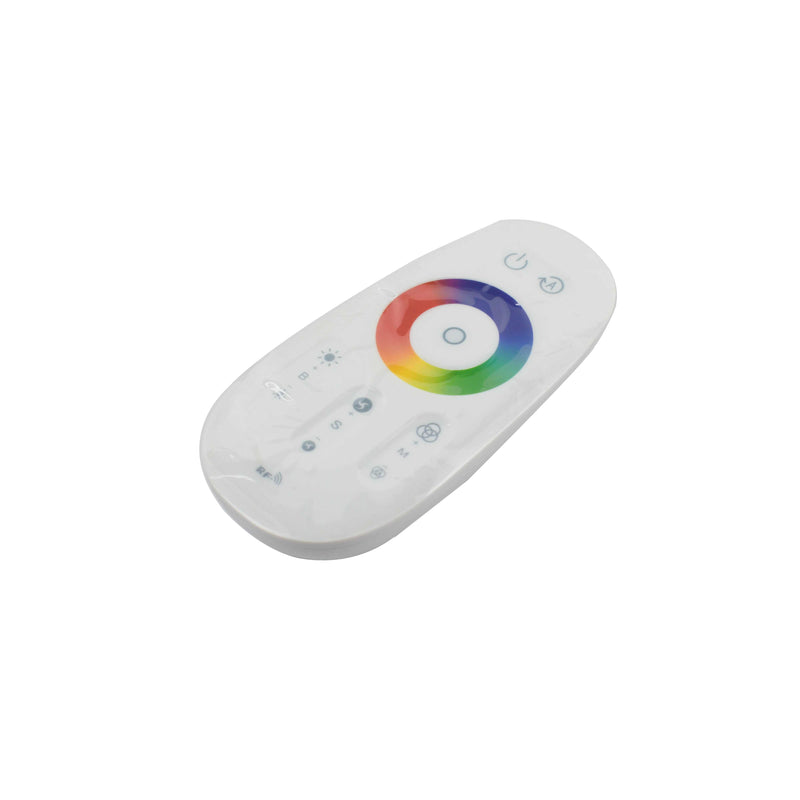

LED Dream-Color Controller is a new and intelligent approach to control your lighting system. It is an RF remote controlled driver that has 358 different elegant and vibrant settings for adjusting brightness. It includes a portable RF remote controller for applications requiring long-distance LED control. Almost every type of one-wire or two-wire LED driver IC is supported.
The WS2811, WS28112, and WS2812B strips are controlled by it.
Key operation instructions :
Power on / off
Auto play (In the shutdown state . Long press 5 seconds to enter the adjustment pixel points and RGB sequence menu)
M+：Mode +
M-：Mode -
S+：Speed +
S-：Speed -
B+：Brightness +
B-：Brightness –
Features
- 358 different modes
- Control upto 2048 pixels
- Has a long range of about 20 meter
Specifications
|
Model |
LED Dream |
|
Type |
Color Controller |
|
Supply Voltage |
DC 5V-24V |
|
Output Signal |
SPI TTL |
|
Effect mode |
358 effects |
|
Control points |
Max up to 2048 pixels |
|
Support IC |
WS2811, WS28112, WS2812B,etc |
|
Remote control distance |
20 meter |
|
Operating Temperature |
-20°C to 60°C |
| Country of Origin | China |
