Description

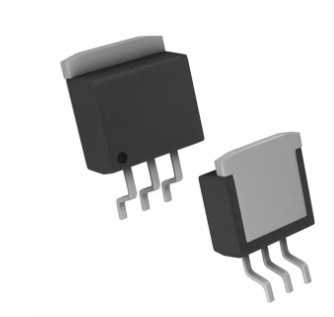

It's a LD1085 Linear Voltage Regulator IC D2PAK-3 Package. The LD1085 is a LOW DROP Voltage Regulator able to provide up to 3A of Output Current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current‚ decreasing at lower loads. The LD1085 is pin to pin compatible with the older 3-terminal adjustable regulators. Linear voltage regulators are commonly used in electronic circuits to provide a stable and regulated DC voltage. They accept an input voltage that may vary within a certain range and deliver a constant‚ lower voltage at the output. In this case‚ the IC is specifically designed to provide a regulated output of 2.5 volts. The maximum current rating of 3 amps indicates the maximum amount of current that the regulator can supply without exceeding its operating limits. It means that the IC is capable of delivering up to 3 amps of current to the load connected to its output
Featutes
- Typical dropout 1.3V (at 3A)
- Guaranteed output current up to 3A
- Wide operating temperature range -40°C to 125°C
- Three terminal adjustable or fixed output voltage 1.5V‚ 1.8V‚ 2.5V‚ 3.3V‚ 5V‚ 12V.
| Specifications | |
|---|---|
| Model | LD1085 |
| Package | D2PAK |
| Mounting Type | SMD |
| Output Current | 3A |
| Current | 3A |
| Operating Temperature | -40°C ~ 125°C |
| No of Pins | 3 |
| Output Voltage | 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V |
| Input Voltage | 30V Max |
| Type | Voltage Regulator |
