Description

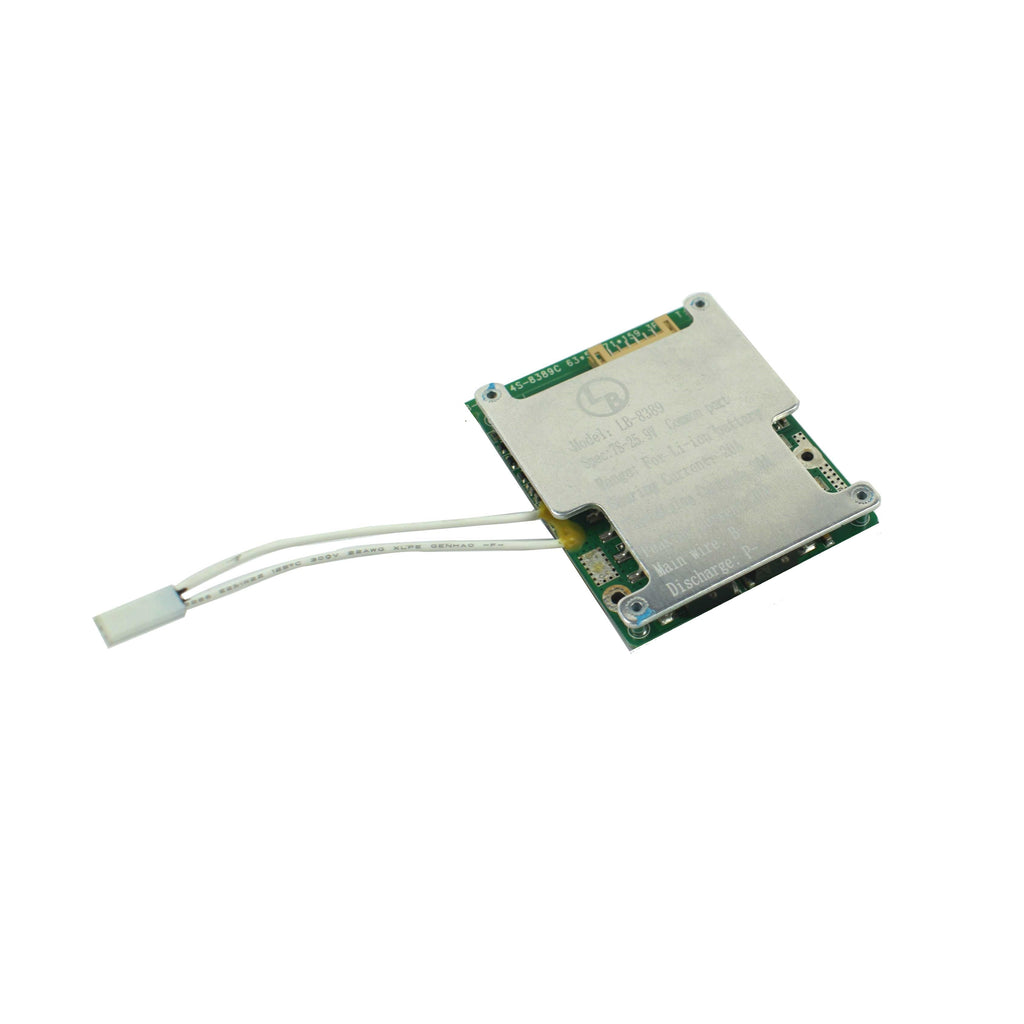

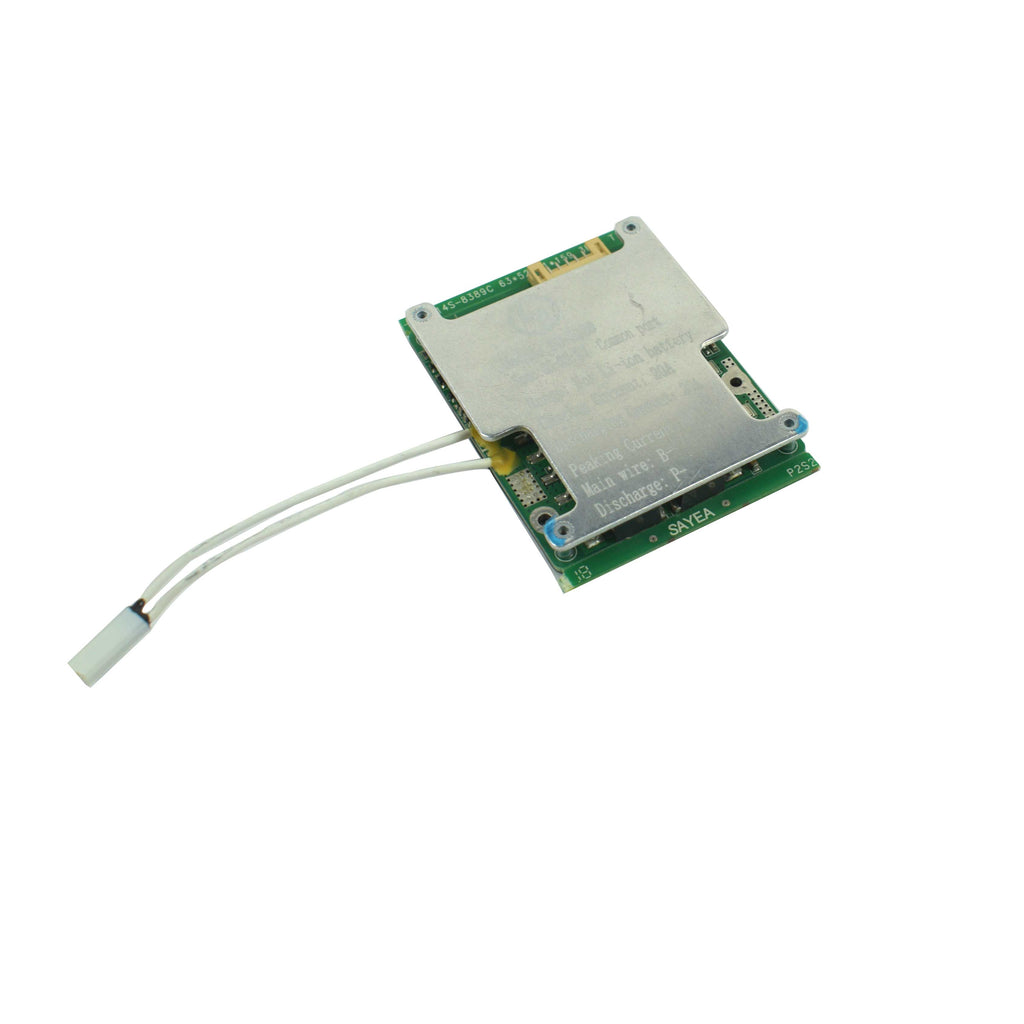

The LB-8389 7S 25.9V 20A is a BMS - a battery management system designed to monitor the status of batteries and control the charging and discharging processes. Li-ion batteries and LiFePO4 battery packs are both compatible with it. Protection from overcharging, over discharging, overcurrent, short circuit, and temperature are among the primary functions. The protection board is composed of premium MOS and foreign IC to prolong the cycle life of your battery.
In order to dissipate heat at a very high rate and allow the BMS to withstand large current, the high-quality heat sink is built of an aluminium alloy.
Features
- Cell overvoltage and under-voltage protection.
- Intelligent battery balancing.
- Fully sealed waterproof technology along with dustproof, shockproof, anti-squeezing, and other protective functions
Application
- Solar Street Lamp
- Backup power
- Energy storage
- Electrical vehicle
Specifications
| Model |
LB-8389 7S 25.9V 20A |
| Type | Battery Management System |
| Charging Current | 20A |
| Discharging Current | 20A |
| Max Voltage | 25.9 V |
| Peak Current | 80A |
| Dimension | 63.2x52.5x10mm |
| Country of Origin | China |
