Description

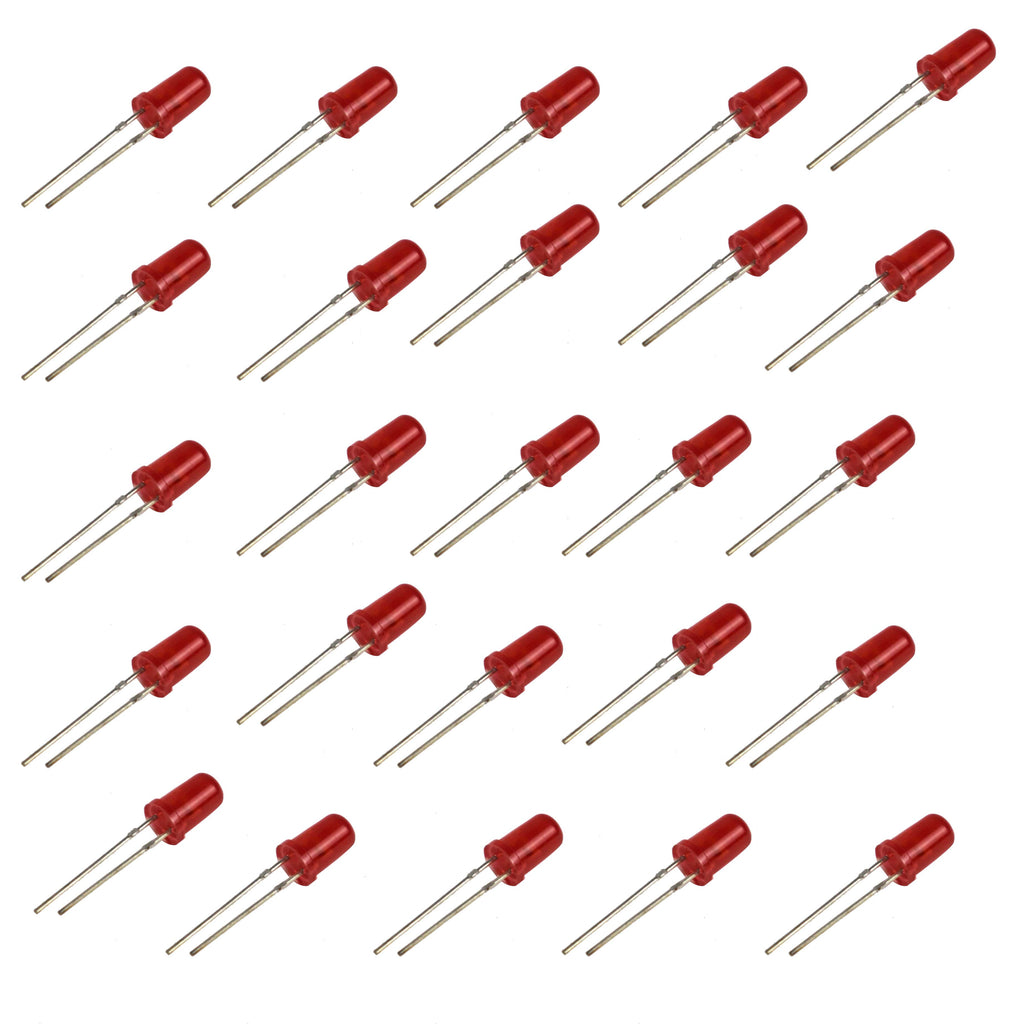

It is a general-purpose 5mm Red Colour LED, Its Forward voltage is 2.5 to 3.0V and it is a Through Hole LED. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-). It is a low power consumption with a wide viewing angle Ideal for backlight and indicator. The most common application of these LEDs is as Power Status, Warning indicator lights, pin status, blinky display, etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | Kinglight |
| Product | 5mm Round Red LED |
| LED Colour | Red |
| Led Lens Colour | Red |
| Forward Voltage | 2.5-3.0V |
| LED Type | Through Hole |
| Application | General lighting, Indication Purpose |
| Diameter | 5mm |
| No. of Pins | 02 |
| Quantity | 1Pcs |
| Country of Origin | China |
