Description

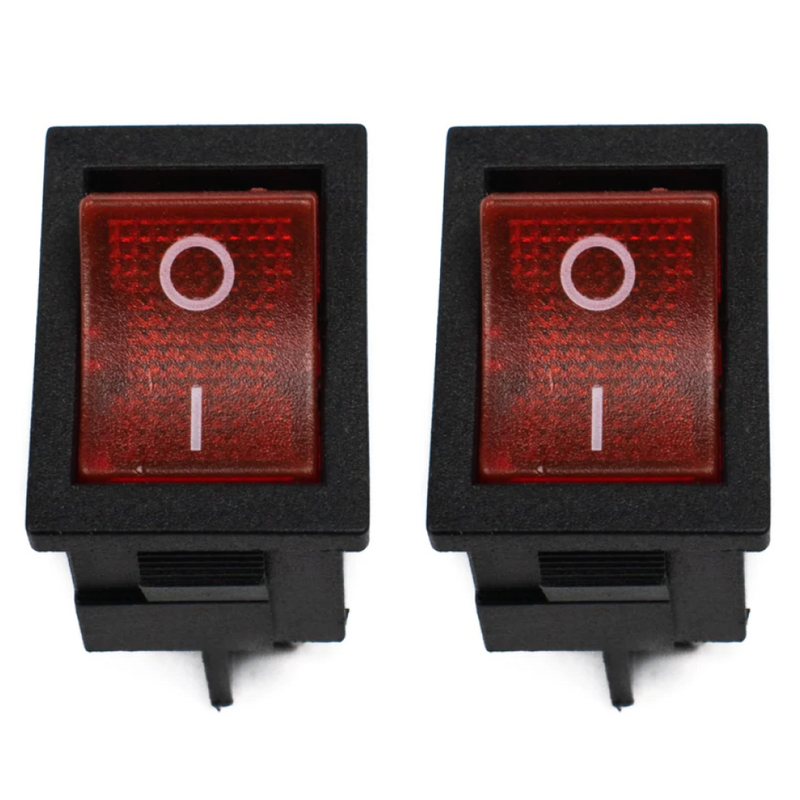

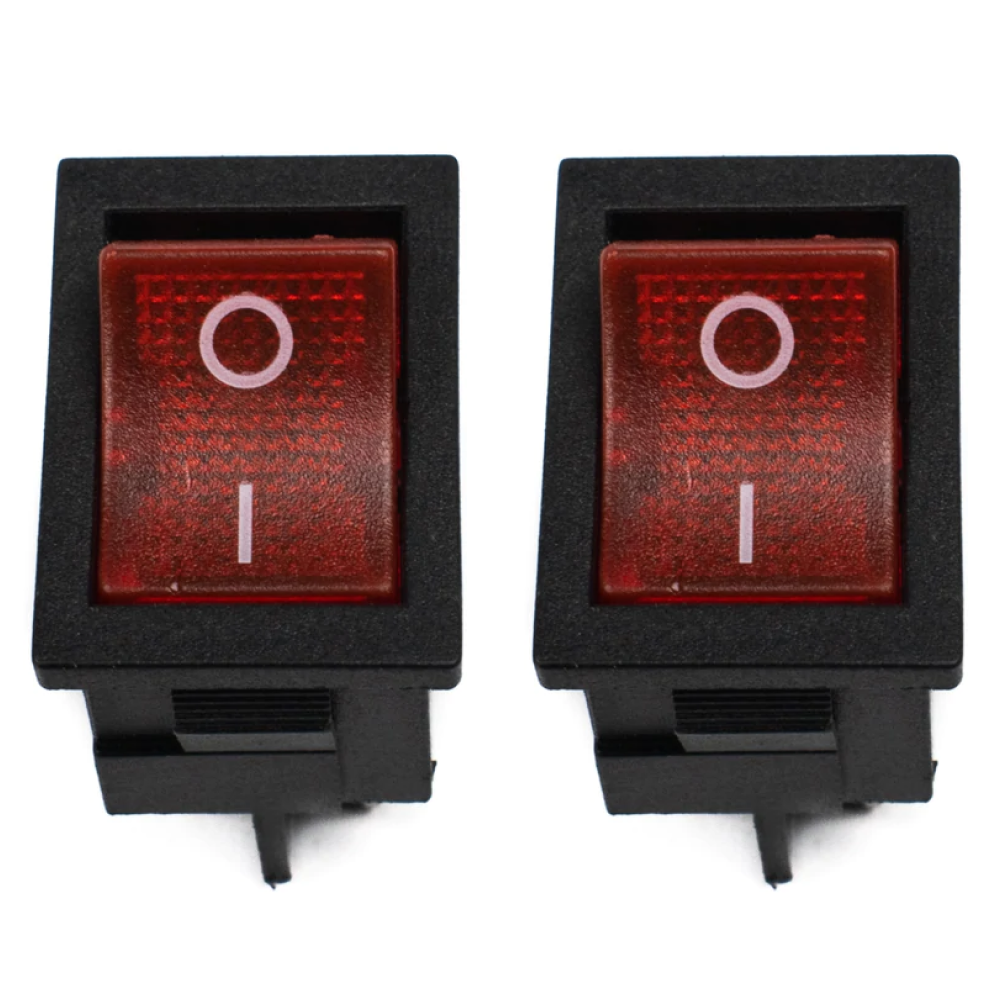

DPST (Double Pole Single Throw) Rocker switch is the most basic power control switch. DPST rocker switch requires no nut-bolts or screws for its installation. This switch also features a Red LED light in it. There are two positions of this switch i.e, ON and OFF which are also marked on it as I and O respectively which helps users to detect its position. This switch is rated for 6A 250V AC and 10A 125V AC. This switch has a long switching life of around 50000 to 100000.
Specifications
| Voltage and Current Rating | 6A at 250V AC, 10A at 125V AC |
| Switching Mode | ON-OFF |
| Structure | DPST |
| Colour | Red |
| Number of Pins | 4 |
| Dimension (LxWxH) | 21 x 15 x 28 mm |
| Material | Copper |
| Quantity | 1 |
| Country of Origin | China |
