Description

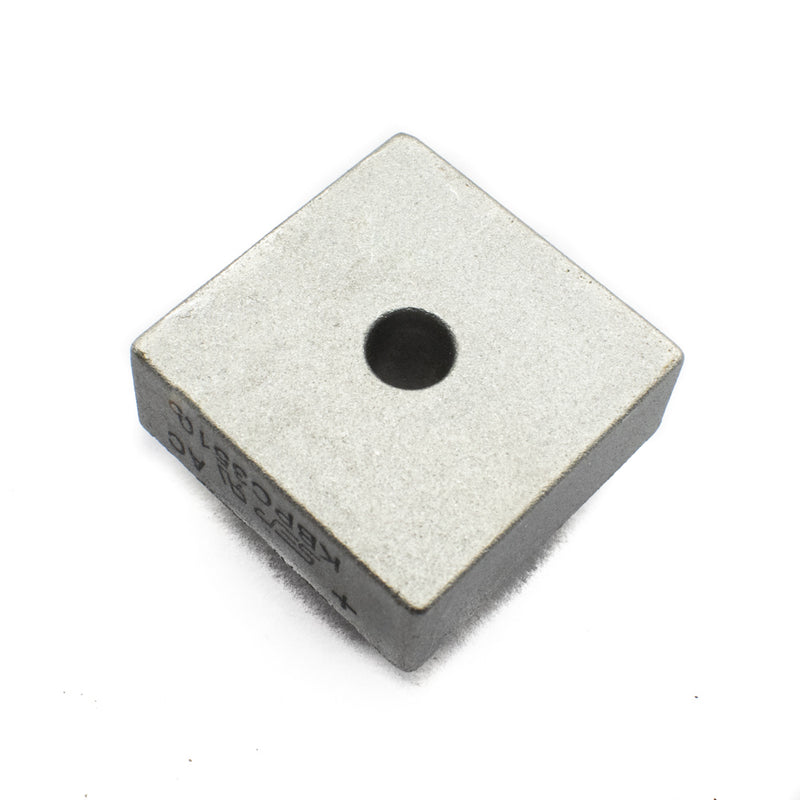

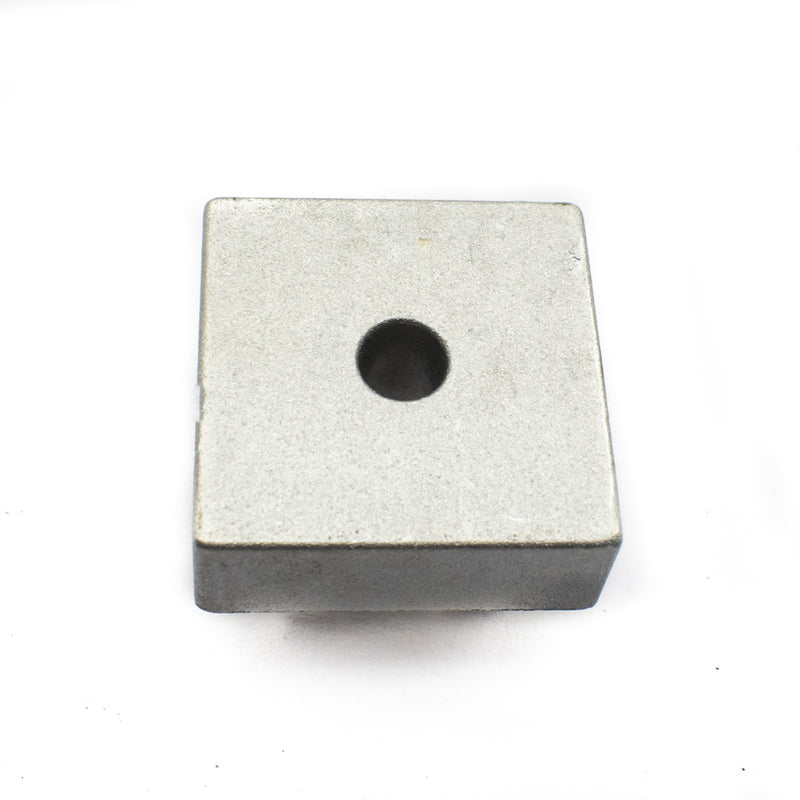

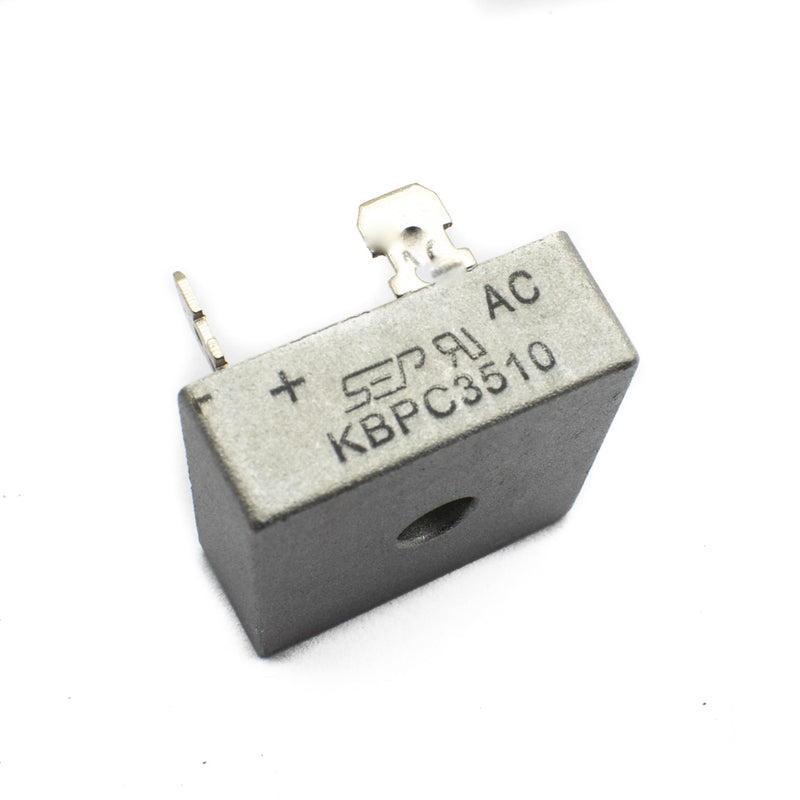

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice.

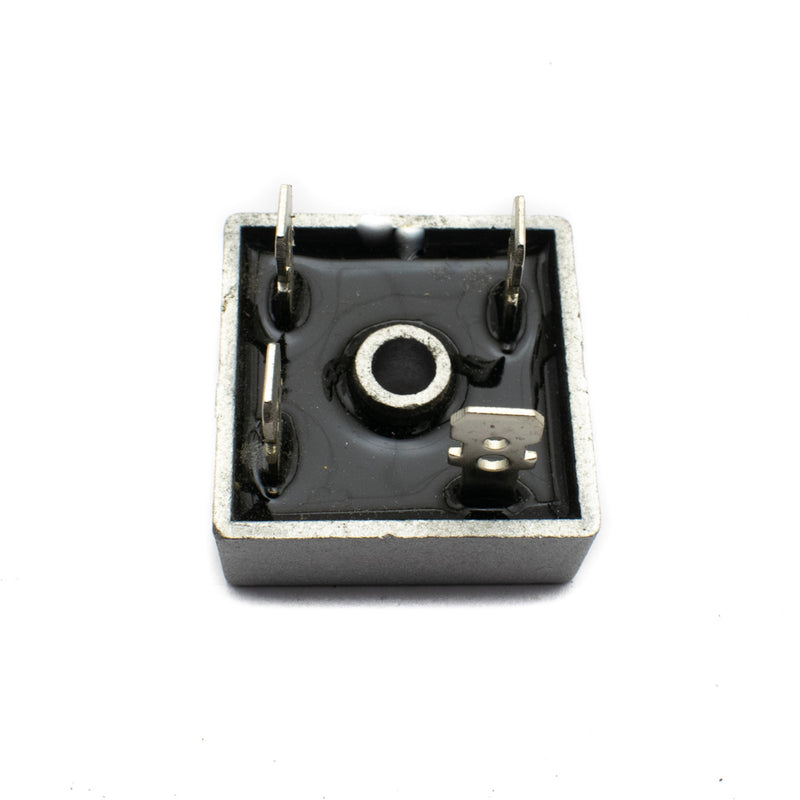

Pinout
|
Pin Number |
Pin Name |
Pin Description |
|
1 |
Positive |
Positive of Rectified Output |
|
2 |
AC Input |
AC Input |
|
3 |
Negative |
Negative of Rectified Output |
|
4 |
AC Input |
Ac Input |
Features:
- Superior thermal design
- 400 amperes surge capability
- Mounting: Hole thru for #8 screw
- 1/4" universal faston terminal
- Both normal and Pb free product are available:
- Normal:80-95% Sn,5-20%Pb
- Pb free:99 Sn above can meet Rohs environment substance directive request
Specifications
|
Input Voltage |
50-1000V |
|
Maximum RMS Bridge Input Voltage |
700V |
|
Maximum DC Blocking Voltage |
1000V |
|
Maximum Average Forward Output Current |
35A |
|
Maximum Forward Voltage |
1.0V |
|
Operating Temperature Range: |
-55 to + 150°C |
|
Dimensions |
29mm x 29mm x 22.1mm |
| Country of Origin | China |
