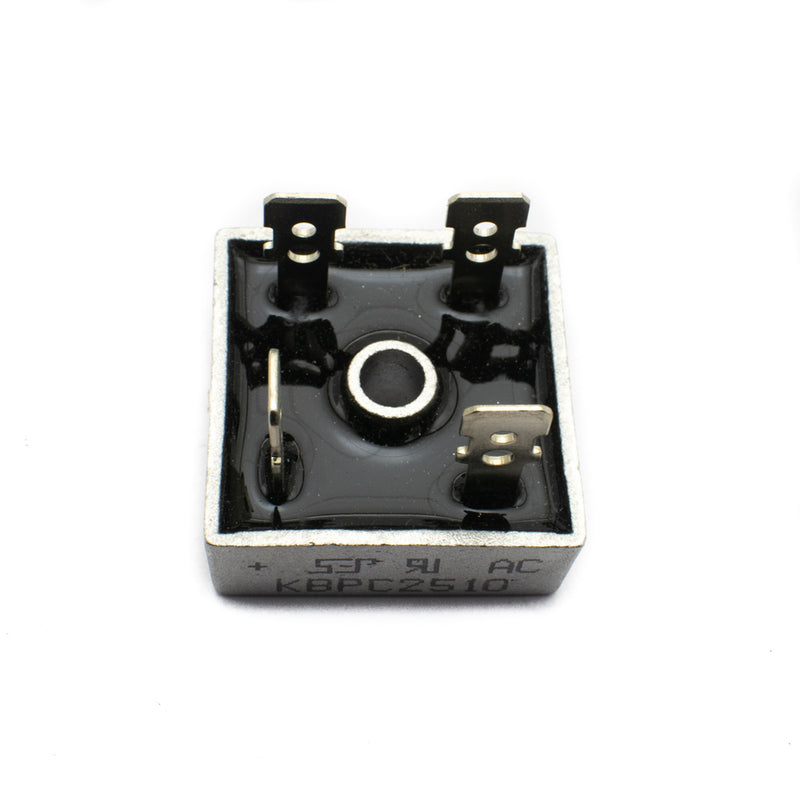

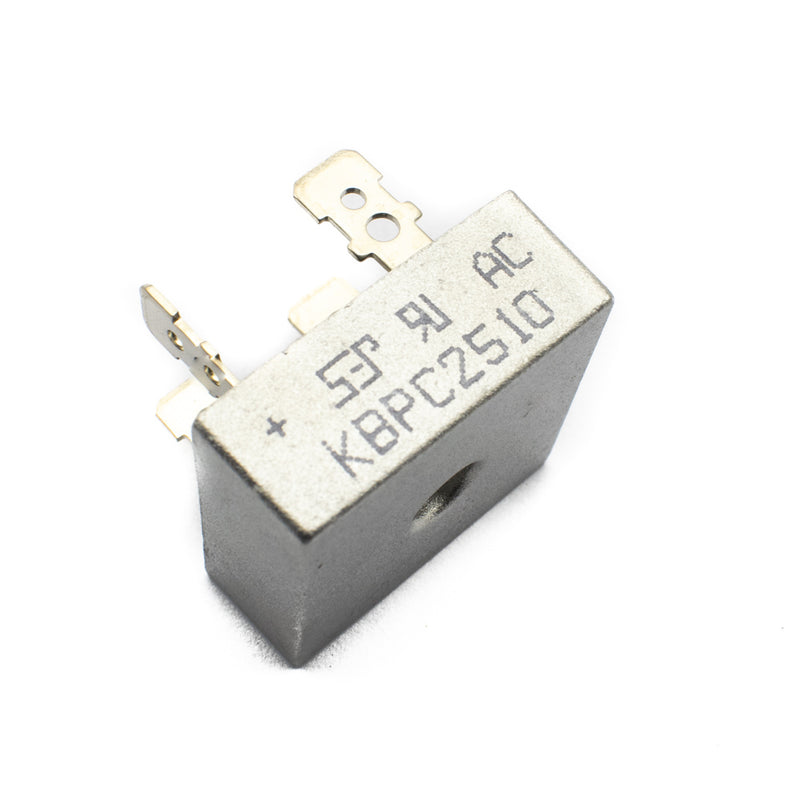

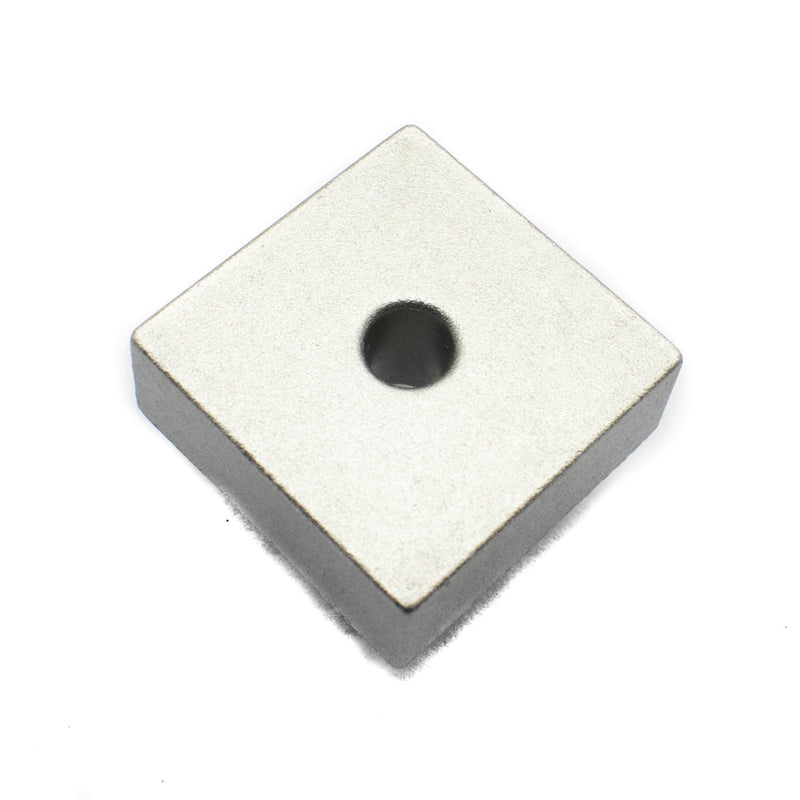

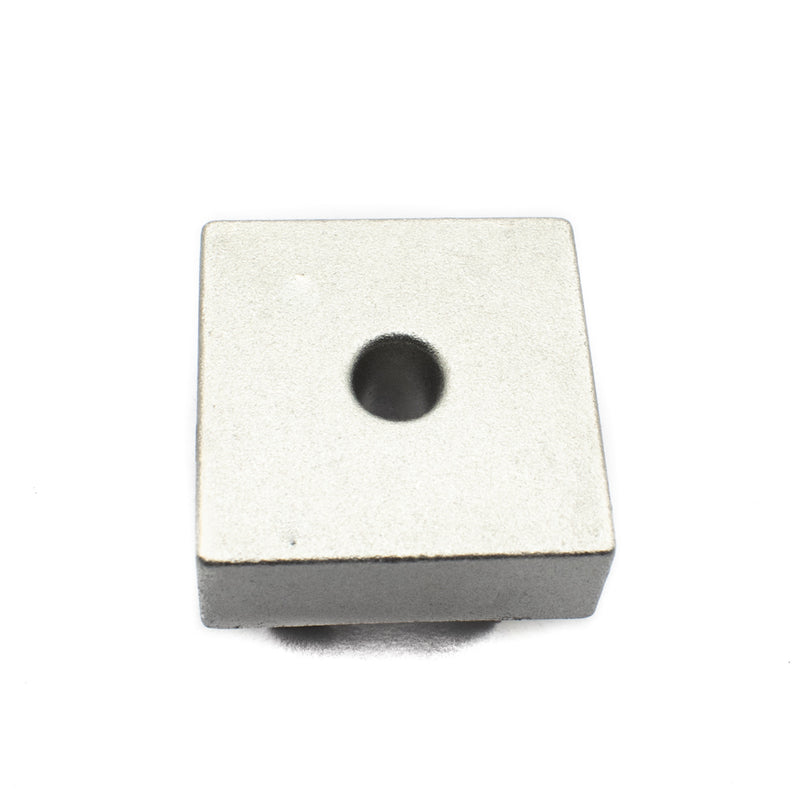

KBPC2510 25A 1000V Single-Phase Bridge Rectifier

Sold By: HatchnHackSKU: 9R16

Price:
Sale price₹ 47.20

Tax included Shipping calculated at checkout

Min Qty: 1

Description

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 25A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 300A. If you are looking for a compact IC for rectification application this can be a good choice.

PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input


FEATURES

  • Low cost
  • This series is UL recognized under component index, file number E127707
  • 300A forward surge current capability
  • Low thermal resistance.
  • High isolation voltage from case to lugs.
  • High-temperature soldering guaranteed: 260/10 second, at 5 lbs. (2.3kg) tension

 MECHANICAL DATA

  • Case: Metal case.
  • Terminal: Plated 0.25" (6.35mm) lug.
  • Polarity: Polarity symbols are marked on the case.
  • Mounting: Thru hole for #10 screw, 20 in,- lbs. Torque Max



Specifications
Input Voltage 1000V
Maximum RMS Bridge Input Voltage 700V
Maximum DC Blocking Voltage 1000V
Maximum Average Forward Output Current  25A
Maximum Forward Voltage 1.1V
Operating Temperature Range -65°C to + 150°C
Dimensions  28.5mm x 28.5mm x 23.4mm
