Description

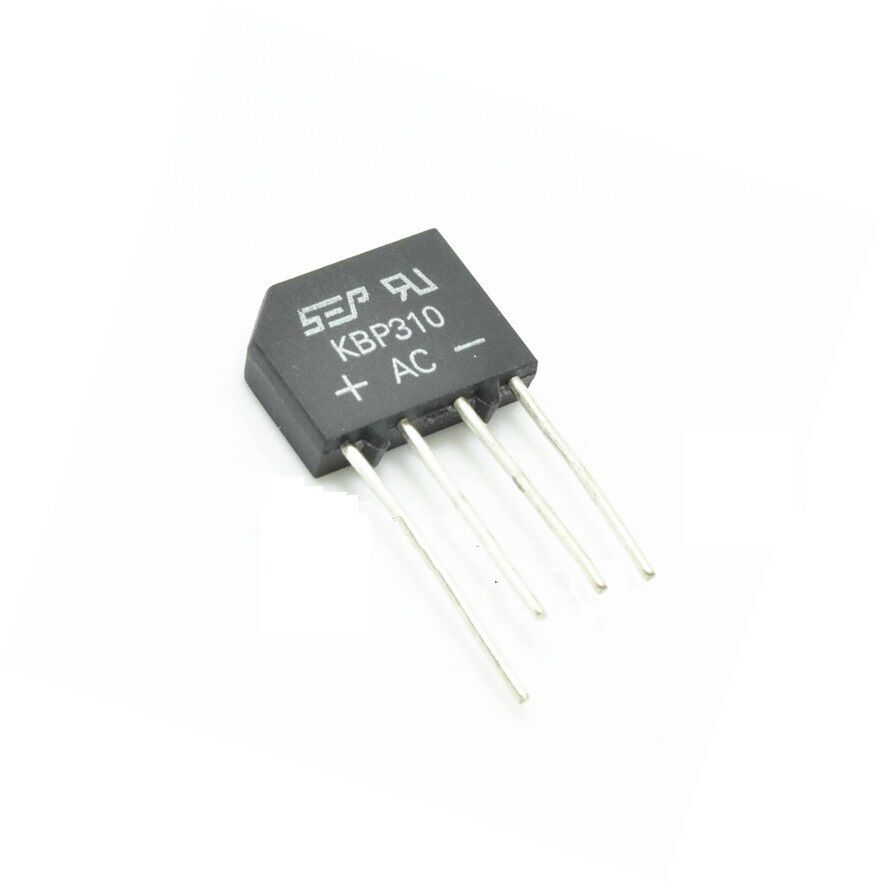

This is the KBP310 Bridge Rectifier Diode. A bridge diode is a diode module that forms a bridge connection of 4 to 6 diodes in one package, and it is used for rectifying an Alternating Current (AC) into a Direct Current (DC) or pulsating current. The average rectified output current is 3A, while the maximum input AC RMS voltage of this Bridge Rectifier Diode is 700V. It also offers high efficiency and a high surge current capability of 80A. Hence it can be used for a broad range of applications.
Features
- Low forward voltage drop
- High surge current capability, hence reliable
Applications:
- AC-DC Rectification in Circuits, Laboratories, etc.
- Ideal for Printed Circuit Boards
- Power Supply Circuits
- Used to detect the amplitude of modulated radio signal.
Specification
| Model | KBP310 |
| Average Rectified Output Current | 3A |
| Max. Peak Repetitive Reverse Voltage | 1000V |
| Max. DC Blocking Voltage | 1000V |
| Max. RMS Reverse Voltage | 700V |
| Forward Voltage (Per Element) | 1.1V |
| Operating Temperature | -55°C~150°C |
| Storage Temperature | -55°C~150°C |
| Package | Bridge Diode |
| Quantity | 500 |
| Country of Origin | China |
