KBP210 1000V 2A Glass Passivated Bridge Rectifier Diode

Save 19%
Sold By: HatchnHackSKU: SNBL306

Sale price₹ 4.07 Regular price₹ 5.05

Tax included Shipping calculated at checkout

Out of stock

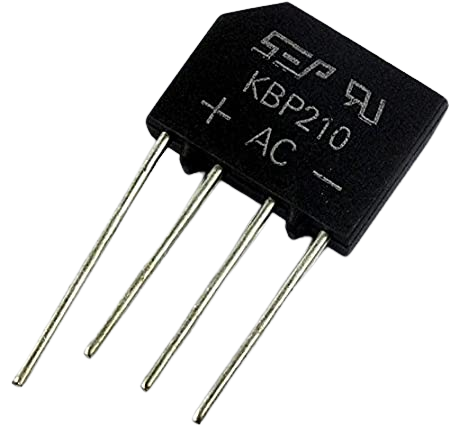

This is the KBP210 Bridge Rectifier Diode. A bridge diode is a diode module that forms a bridge connection of 4 to 6 diodes in one package, and it is used for rectifying an Alternating Current (AC) into a Direct Current (DC) or pulsating current. This Diode is glass passivated, meaning that it also reduces any leakage current. The average forward current is 2A, while the maximum input AC RMS voltage of this Bridge Rectifier Diode is 700V. It also offers high efficiency and a high surge current capability of 60A. Hence it can be used for a broad range of applications
  • Molded Plastic Casing
  • Low forward voltage drop
  • Glass Passivated to reduce leakage current
  • High surge current capability, hence reliable

Applications :

  • AC-DC Rectification in Circuits, Laboratories, etc.
  • Ideal for Printed Circuit Boards
  • Power Supply Circuits
  • Used to detect the amplitude of modulated radio signal.

For more information, refer to KBP210 Datasheet

Model KBP210
Average Forward Current   2A
Max. Recurrent Peak Reverse Voltage 1000V
Max. RMS Voltage 700V
Max. DC Blocking Voltage 1000V
Max. Forward Voltage Drop Per Element 1.1V
Operating Temperature -55°C~150°C
Storage Temperature -55°C~150°C
Package Bridge Diode
Quantity 500
Country of Origin China
