Description

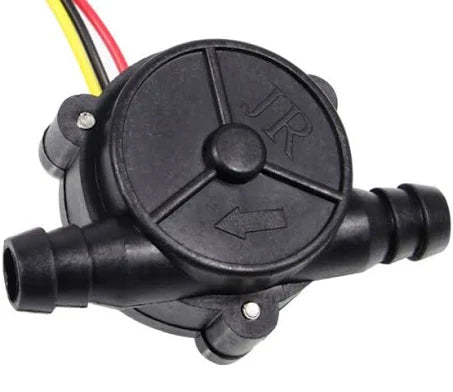

The JIYI Water Flow Sensor is designed for agriculture drones, enabling precise irrigation management. It measures real-time water flow, ensuring accurate distribution over crops. This sensor enhances efficiency and conserves water by integrating seamlessly with drone systems, providing crucial data for optimal crop hydration and health.
Specifications:
|
Item |
Examination requirement |
|
Water pressure resistance performance |
0.35MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly |
|
Working medium |
Water, water standard, use for a long time the temperature is not more than 60 ℃ |
|
Flow range |
0.2-6L/Min |
|
Operating voltage range |
DC4.5-18V |
|
Max operating current |
10mA |
|
output pulse high level |
In 5 V rated voltage, the output of the high level requirements in 4.5 V above |
|
output pulse low level |
In 5 V rated voltage, the output of the low level requirements in 0.5 V the following |
|
output pulse duty ratio |
In the rated voltage, the output pulse occupies empties compared to 50%±10% |
|
Flow pulse characteristics |
F=25*Q ±10% |
|
Insulating property |
Dielectric resistance＞100MΩ |
|
Electrical strength |
AC500V 50Hz (Don't breakdown or flash winding) |
|
Electrical strength(80℃) |
In +80 ℃ temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5% |
|
Cold resistance(-20℃) |
In- 20 ℃ temperature placed in-72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5% |
|
Mode of connection |
Red: the positive, black: negative, yellow: pulse signal |
