Description
- Iron Body Material
- High quality ultra-compact electric lock.
- Rustproof, durable, safe, convenient to use.
- Suction which tightly sucks the iron, thus locking the door.
- Designed with the open frame type and mount board, high power.
- Easy to install for the electric door lock or other automatic door lock systems with the mounting board
- Applicable for being installed in the escape door or fire door electronic controlled system.
- Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.
| Model |

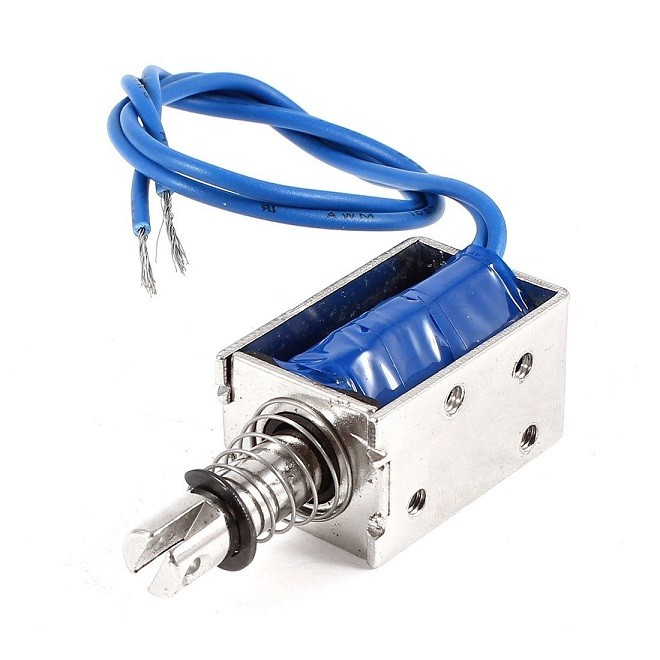

JF-0630B DC 24 V 6N Push Pull Solenoid Electromagnet |
|---|---|
| Rated Operating Voltage (VDC) |
24 |
| Operation Mode |
Push-Pull (Normally Closed) |
| Rated Current (mA) |
300 |
| Holding Force (N) |
6 |
| Energized forms |
Intermittent |
| Cable Length (cm) |
15 |
| Mounting Hole(mm) |
M2 |
| Shaft Hole Diameter |
3 |
| Dimensions (mm) LxWxH |
30 x 14 x 19 |
| Weight (g): |
46 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 10 × 5 × 5 cm |
