Description

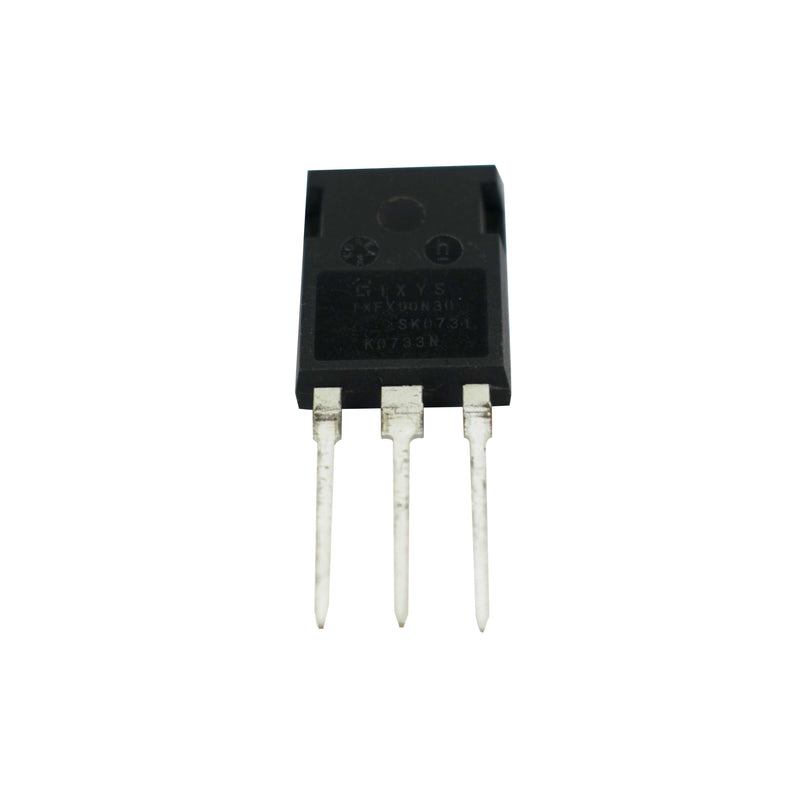

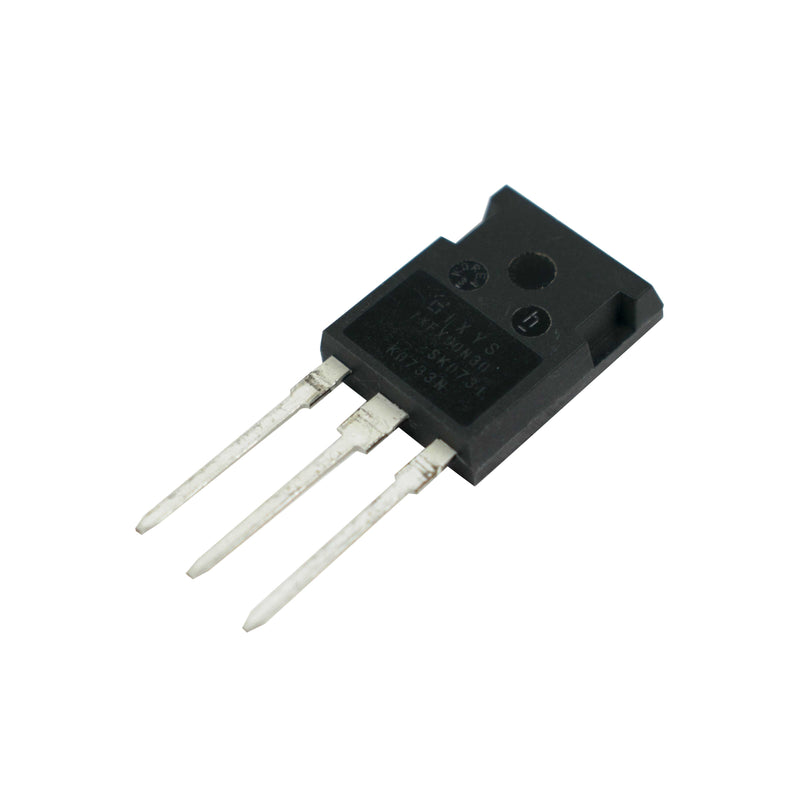

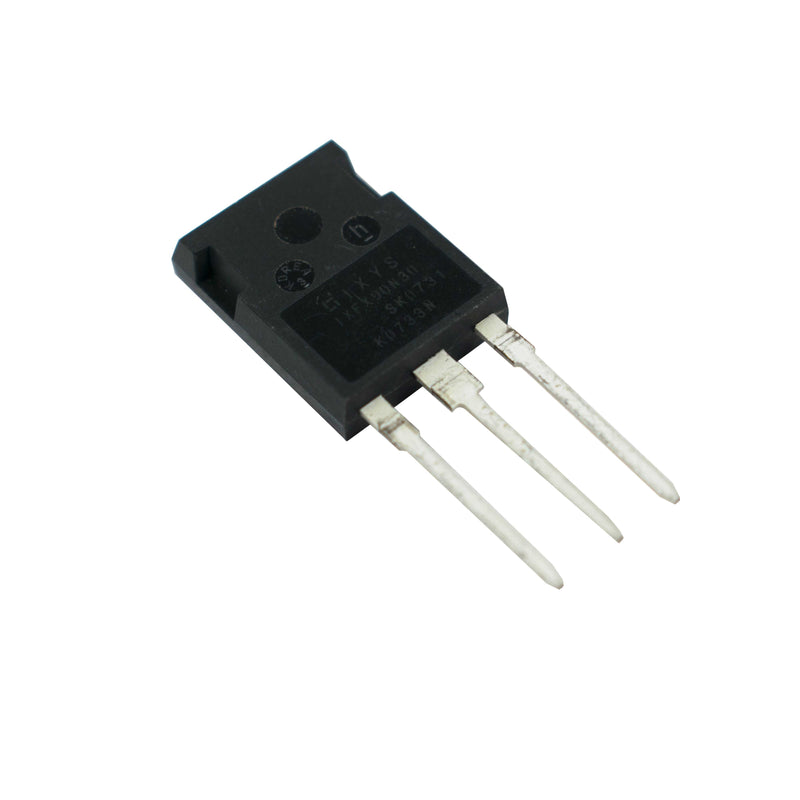

The IXFH90N30 300V 90A N-Channel MOSFET by IXYS offers a low gate charge, excellent ruggedness with a fast intrinsic rectifier, and higher current handling capability that eliminates the need for multiple components. These are ideal for hard switching and resonant mode power supply applications.
Features:
- High power density
- Easy to mount, ideal for Printed Circuit Boards, clip or spring mounting
- Fast Intrinsic Rectifier
- Low package inductance - easy to drive and protect
Applications:
- Switched-mode and resonant-mode power supplies
- DC-DC Converters
- Battery chargers
- DC choppers & AC motor control
- Temperature and lighting controls
Specification
| Model | IXFH90N30 |
| Brand | IXYS |
| Drain-Source Voltage (VDS) | 300V |
| Gate-Source Voltage (VGS) | ±20V |
| Drain Power Dissipation | 560W |
| Operating Temperature | -55°C~150°C |
| Package | TO-247 |
| Country of Origin | China |
