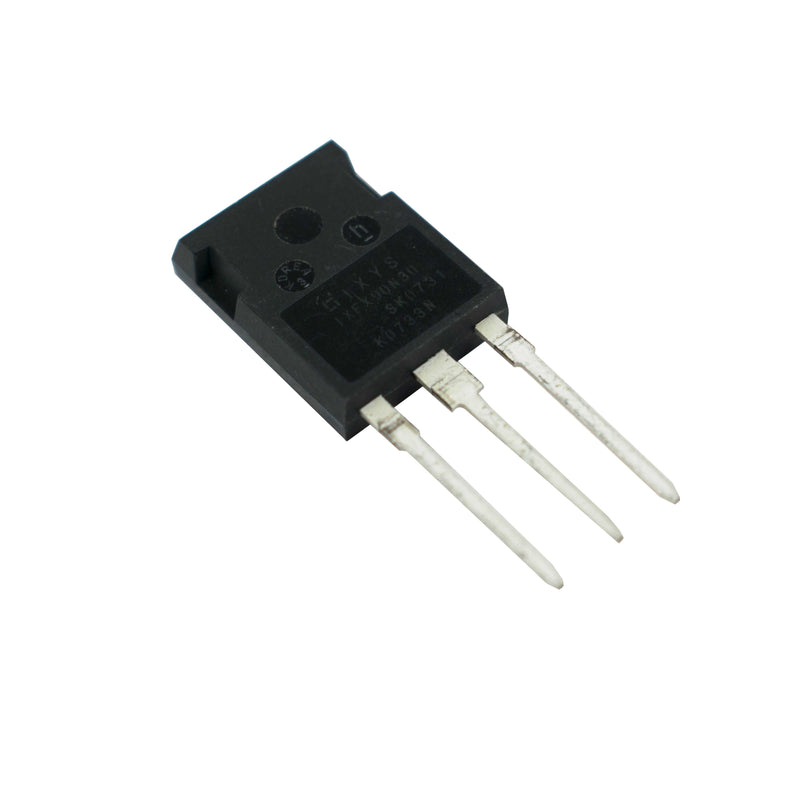

IXYS IXFH90N30 300V 90A N-Channel MOSFET TO-247 Package (Pack of 100)

Sold By: HatchnHackSKU: V0880

Min Qty: 1


The IXFH90N30 300V 90A N-Channel MOSFET by IXYS offers a low gate charge, excellent ruggedness with a fast intrinsic rectifier, and higher current handling capability that eliminates the need for multiple components. These are ideal for hard switching and resonant mode power supply applications.


  • High power density
  • Easy to mount, ideal for Printed Circuit Boards, clip or spring mounting
  • Fast Intrinsic Rectifier
  • Low package inductance - easy to drive and protect


  • Switched-mode and resonant-mode power supplies
  • DC-DC Converters
  • Battery chargers
  • DC choppers & AC motor control
  • Temperature and lighting controls
 Model  IXFH90N30
Brand  IXYS
Drain-Source Voltage (VDS) 300V
Gate-Source Voltage (VGS) ±20V
Drain Power Dissipation 560W
Operating Temperature -55°C~150°C
Package TO-247
Quantity 100
