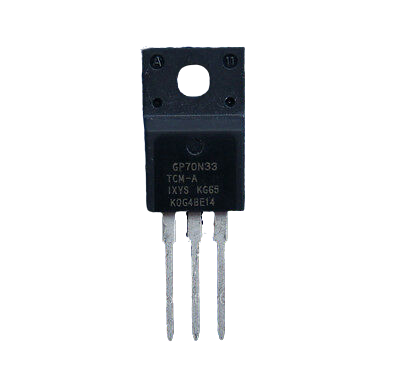

IXYS GP70N33 330V 70A Medium Frequency IGBT

Save 19%
Sold By: HatchnHackSKU: SNBL202

Sale price₹ 223.91 Regular price₹ 277.64

Tax included Shipping calculated at checkout

Out of stock


IXGP70N33 is a medium frequency insulated-gate bipolar transistor with high current handling capability. It features high power density and a very low switching loss, making it suitable for use in high-frequency applications. The diode is used extensively in AC motor speed control, DC choppers, uninterrupted power supplies (UPS), and so on. It is suitable for surface mountings. This diode comes in a 3-pin layout namely ground (G), emitter (E), and collector (C).


  • International standard packages JEDEC TO-263 surface mountable and JEDEC TO-220 AB
  • Medium frequency IGBT
  • High current handling capability
  • MOS Gate turn-on-drive simplicity


  • Uninterruptible power supplies (UPS)
  • Switched-mode and resonant-mode power supplies
  • AC motor speed control
  • DC choppers


  • High power density
  • Suitable for surface mounting
  • Very low switching losses for high-frequency applications
Model IXGP70N33
Brand IXYS
Collector-Emitter Voltage 330V
Gate to Emitter Voltage ±30V
Max. Collector Current 70A
Power Dissipation 48W @25°C, 19W @100°C
Operating Junction Temperature -55°C to 150°C
Package TO-220
Quantity 100
Country of Origin China
