Description

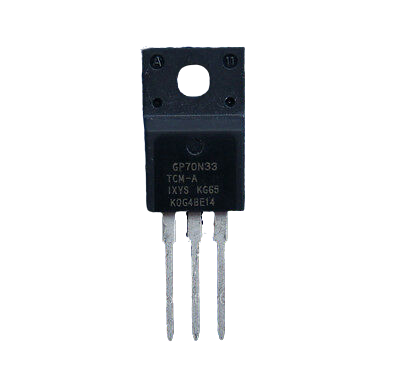

IXGP70N33 is a medium frequency insulated-gate bipolar transistor with high current handling capability. It features high power density and a very low switching loss, making it suitable for use in high-frequency applications. The diode is used extensively in AC motor speed control, DC choppers, uninterrupted power supplies (UPS), and so on. It is suitable for surface mountings. This diode comes in a 3-pin layout namely ground (G), emitter (E), and collector (C).
Features:
- International standard packages JEDEC TO-263 surface mountable and JEDEC TO-220 AB
- Medium frequency IGBT
- High current handling capability
- MOS Gate turn-on-drive simplicity
Applications:
- Uninterruptible power supplies (UPS)
- Switched-mode and resonant-mode power supplies
- AC motor speed control
- DC choppers
Advantages:
- High power density
- Suitable for surface mounting
- Very low switching losses for high-frequency applications
Specifications
| Model | IXGP70N33 |
| Brand | IXYS |
| Collector-Emitter Voltage | 330V |
| Gate to Emitter Voltage | ±30V |
| Max. Collector Current | 70A |
| Power Dissipation | 48W @25°C, 19W @100°C |
| Operating Junction Temperature | -55°C to 150°C |
| Package | TO-220 |
| Country of Origin | China |
