Description

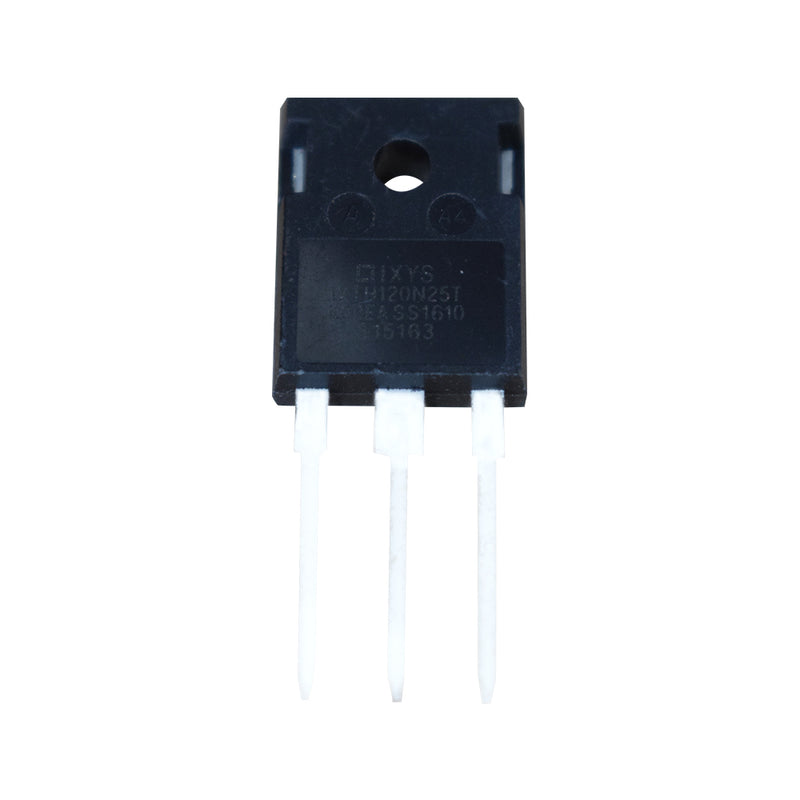

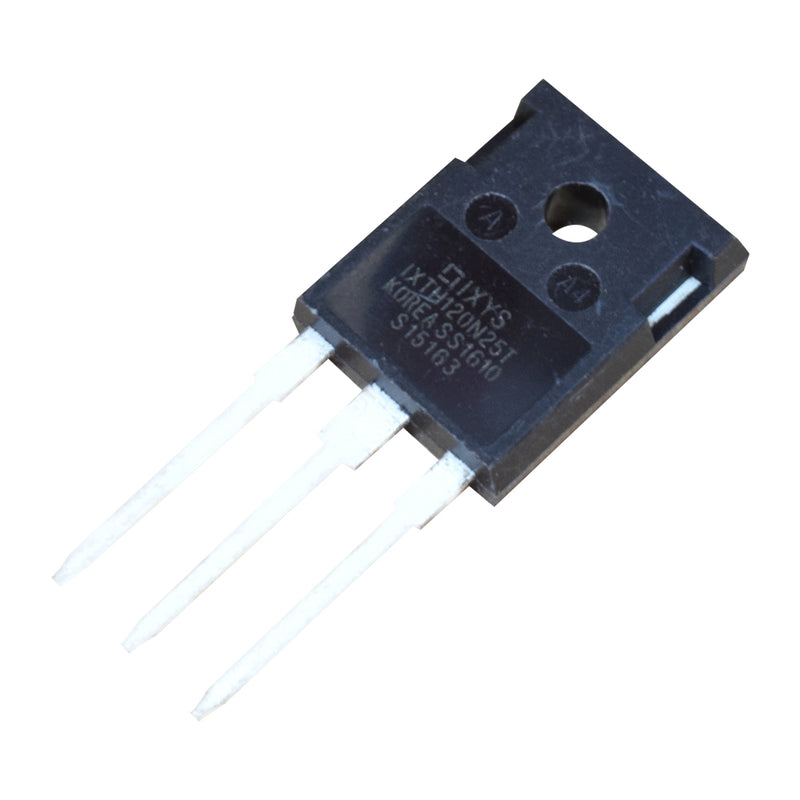

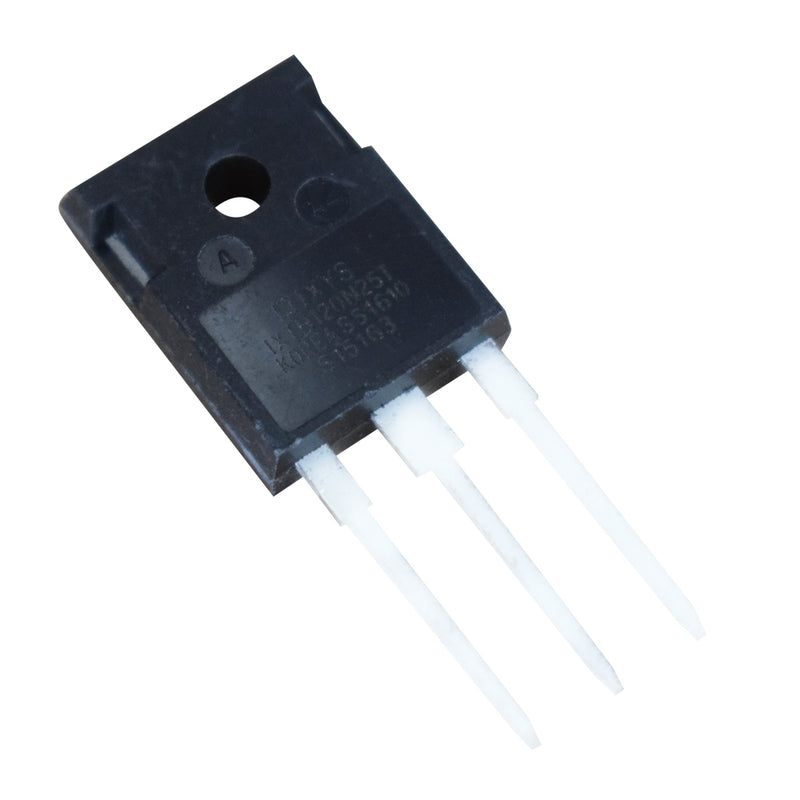

120N25T is an N-Channel Enhancement Mode, Avalanche Rated Fast Intrinsic Rectifier in TO-247 Package. The drain Source Breakdown Voltage is 250V. It is often used in DC-DC Converter, Battery Charger, Switch-Mode and Resonant-Mode Power Supplies, DC Choppers, AC Motor Drives, Uninterruptible Power Supplies and High-Speed Power Switching Applications.
Features
- International Standard Packages
- Avalanche Rated
- High Current Handling Capability
- Fast Intrinsic Rectifier
- Low RDS(on)
Advantages
- Easy to Mount
- Space Savings
- High Power Density
Specifications
| Model |
120N25T |
| Brand | IXYS |
| Type | MOSFET |
| Drain Source Breakdown Voltage V|DSS| | 250V |
| Continuous Drain Current I|d| | 120A |
| No. of Pins | 03 |
| Mounting Type | Through Hole |
| Polarity Type |
N-Channel |
| Package | TO-247 |
| Country of Origin | China |
