Description

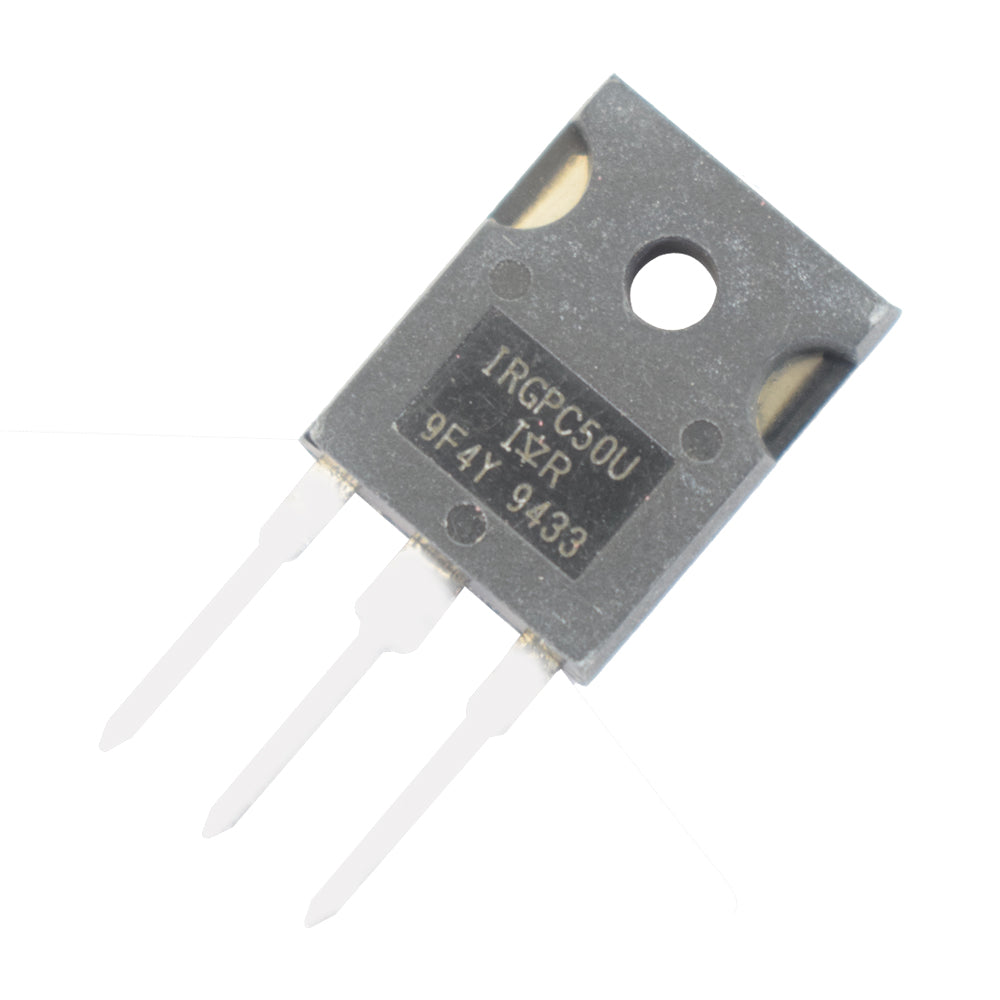

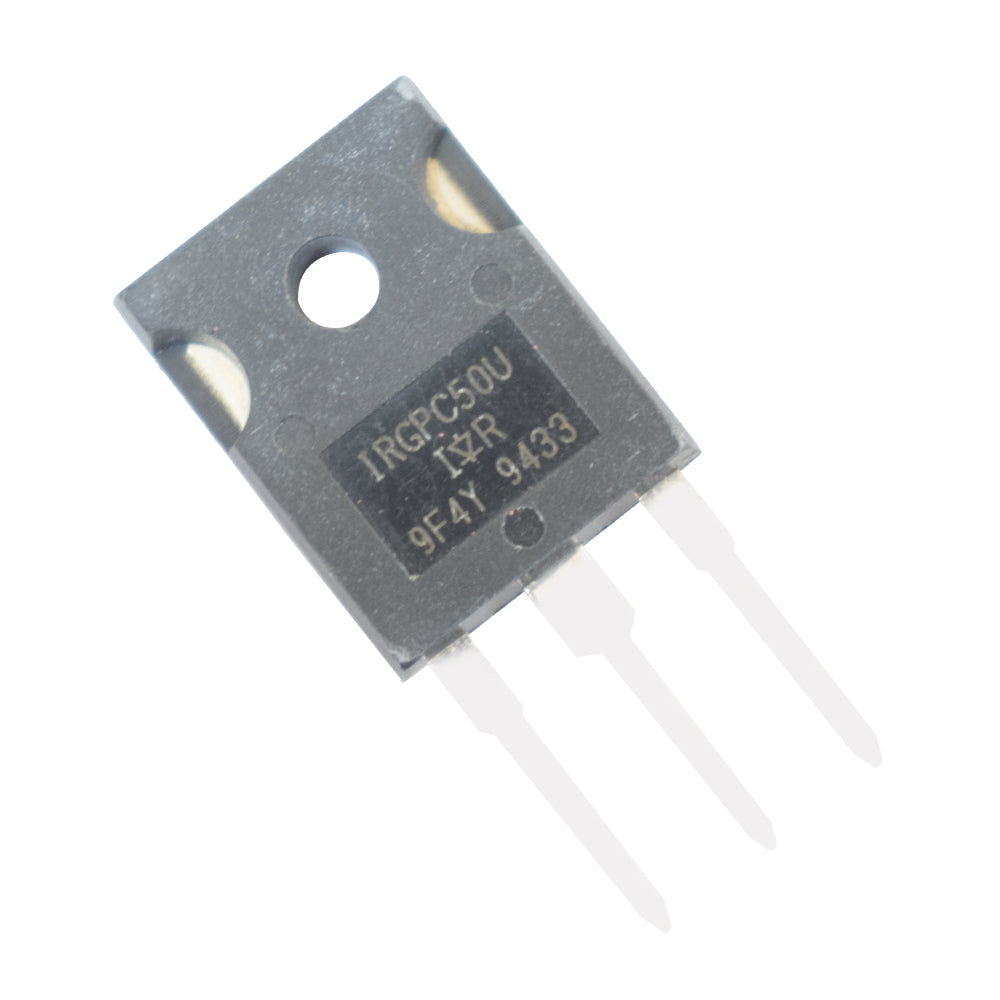

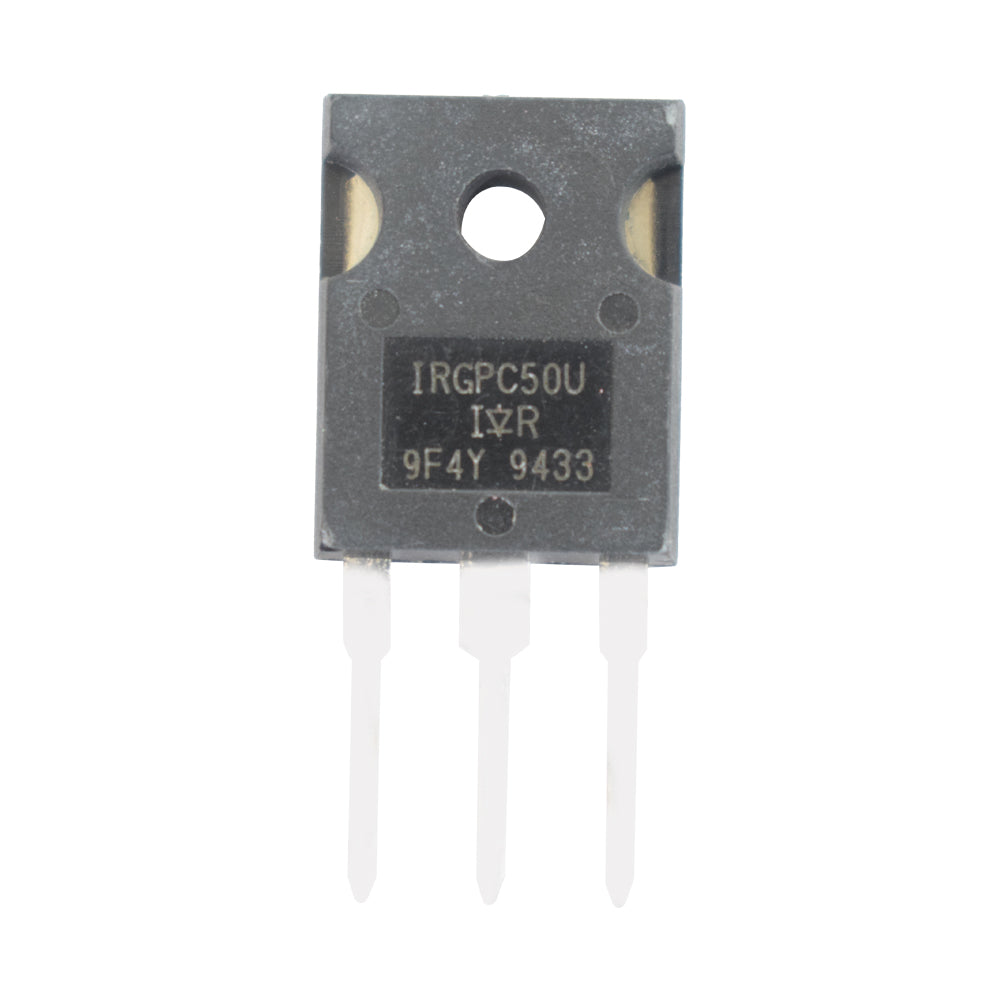

IRGPC50U is an IGBT MOSFET which is mostly known for its ultrafast feature. Its operating current is 27A, and the voltage is 600V. It has a soft recovery time just because of this feature; it performs fast switching operations. Its primarily used in SMPS, UPS, inverters and other general switching applications.
Features:
- Fast Switching Speed
- 100% Avalanche Tested
-
Ultra Fast: Optimized for high operating frequencies 8-40 kHz
-
in hard switching, >200kHz in resonant mode
-
Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3
-
Industry-standard TO-247AC package
- It has a small size
- It's not too costly
- Highly efficient
Specifications:
| Model | IRGPC50U |
| Type | MOSFET |
| Package | TO-247AC |
| Brand | International Rectifier |
| Voltage | 600V |
| Collector current | 27A |
| Total power dissipation | 200W |
| Lead soldering temperature | 300 Degree centigrade |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
