Description
The N-channel Enhanced mode field-effect power transistor is used in motor control circuits, general purpose switching applications, T.V. and computer monitor power supplies, off-line switched mode power supplies, and DC to DC converters.

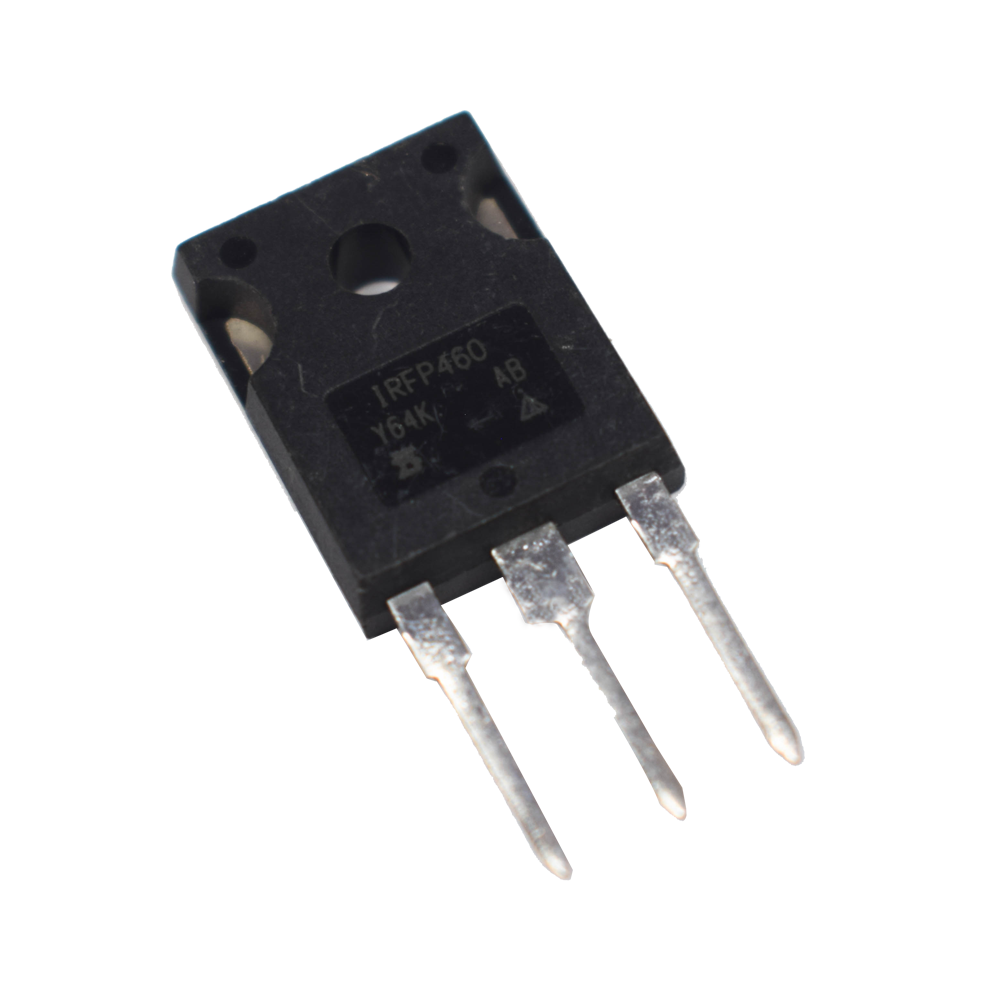

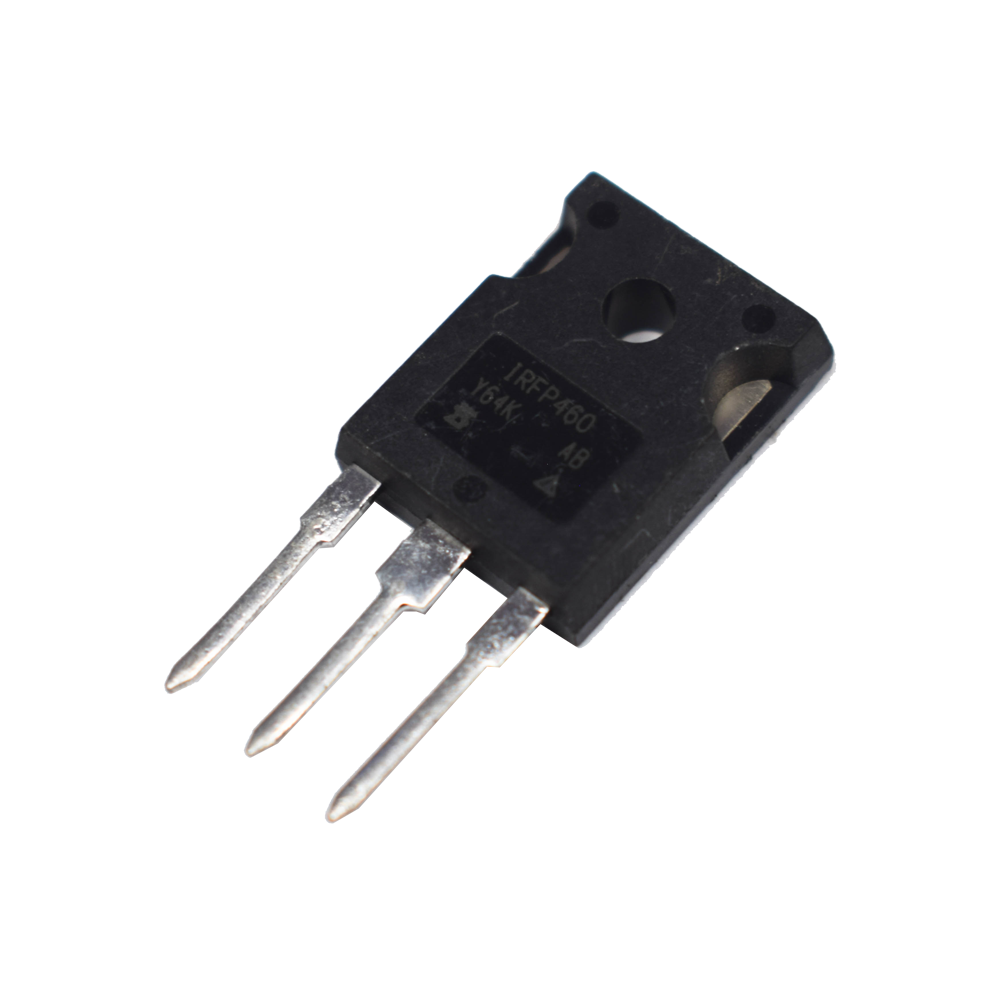

The SOT429 (TO247) conventional leaded package contains the IRFP460.
Features include repeating avalanches. Rated: High thermal cycling performance; Fast switching; Stable off-state features; Low thermal resistance.
Features
-
Repetitive avalanche rated
-
It has fast switching speed
-
High thermal cycling performance
-
Low thermal resistance
- Stable off state characteristics
Specification
| Model | IRFP460 |
| Type | N-Channel MOSFET |
| Package | SOT429 (TO247) |
| Pulse drain current | 80A |
| Drain current | 20A |
| Maximum operating voltage | 500V |
| Total power dissipation | 250W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
