Description

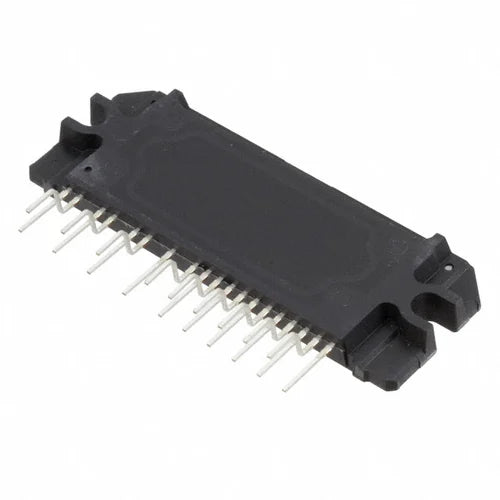

The IRAM256-1567A2 is an Intelligent Power Module (IPM) from Infineon. It integrates IGBTs, gate drivers, and protection circuits, suitable for motor control applications. With a voltage rating of 600V and current handling capabilities, it's designed for efficient and reliable operation in industrial and automotive systems.
Specifications:
-
Voltage Rating: The IRAM256-1567A2 typically operates at a voltage range of 250V to 600V.
-
Current Rating:
- Continuous Collector Current (IC): 15A
- Pulsed Collector Current (ICP): 30A
- RMS Output Current (IRMS): 9.5A
-
Package Type: The module is packaged in a DIP (Dual In-line Package) with an insulated metal baseplate.
-
Integrated Components:
- IGBT: Insulated Gate Bipolar Transistor with a VCE(sat) of 2.4V at 15A
- Fast Recovery Diode (FRD): Reverse Recovery Time (trr) of 0.5μs
- Overcurrent and Overtemperature Protection
- Under Voltage Lockout (UVLO)
- Fault Feedback Signal
-
Control Interface: Optical isolation for gate drive signals.
-
Applications: Suitable for motor control applications such as variable frequency drives (VFDs), industrial automation, and other power electronics systems.
