Description

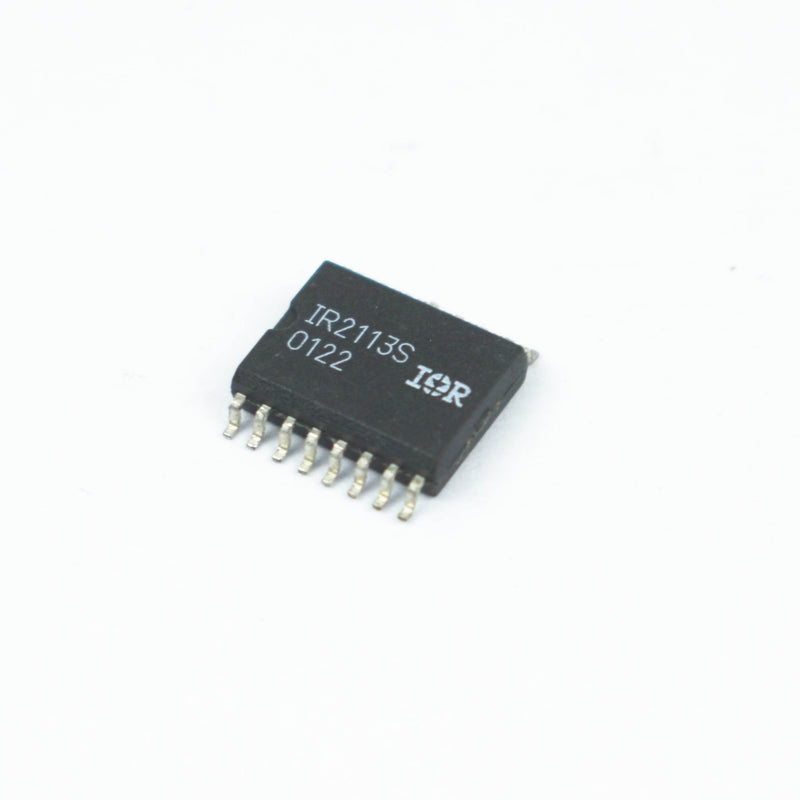

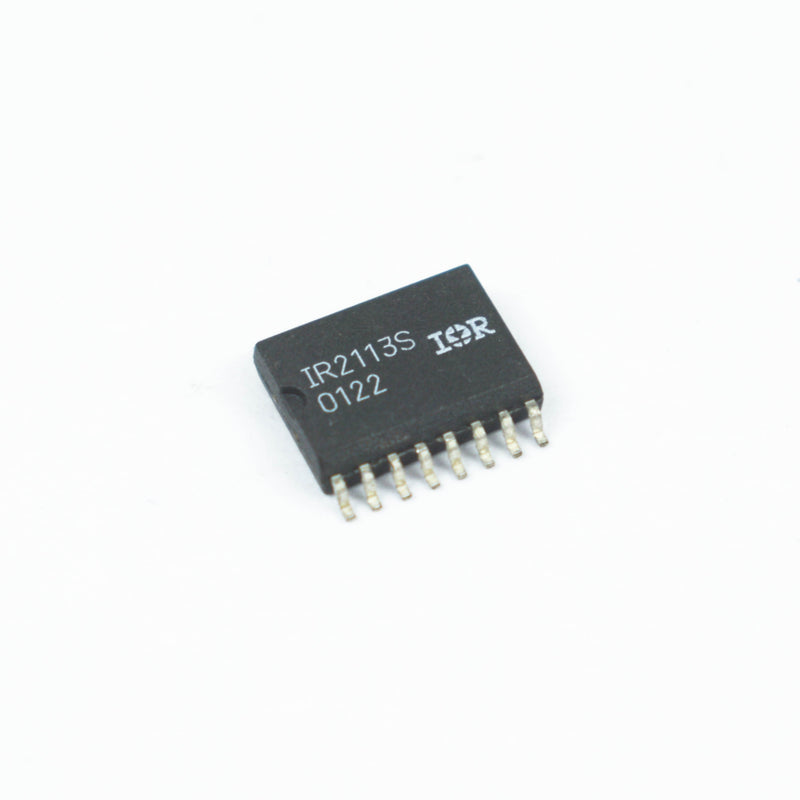

The International Rectifier IR2113S are power MOSFET and IGBT drivers with independent high and low side referenced output channels that operate at high voltage and high speed. Ruggedized monolithic construction is possible thanks to proprietary HVIC and latch-immune CMOS technologies. Down to 3.3V logic, logic inputs are compatible with standard CMOS or LSTTL output. The output drivers include a high pulse current buffer stage to reduce driver cross-conduction. To facilitate use in high-frequency applications, propagation delays are matched. The floating channel can be used to drive an N-channel power MOSFET or IGBT in high side mode that operates at 500 or 600 volts.
Features
- Floating channel designed for bootstrap operation fully operational to +500V or +600V tolerant to negative transient voltage DV/DT immune.
- Gate drive supply range from 10 to 20V
- Undervoltage lockout for both channels
- CMOS Schmitt-trigger input with pull-down
- Cycle by cycle edge-trigger shut-down logic
- Output in phase with inputs
Specifications
| Model | IR2113S |
| Brand | International Rectifier |
| Type | High side and Low side |
| No. of Pin | 16 |
| Package | SOIC |
| Mounting Type | SMD |
| Operating Temperature Range | -40~125°C |
| Technology | CMOS |
| Country of Origin | China |
