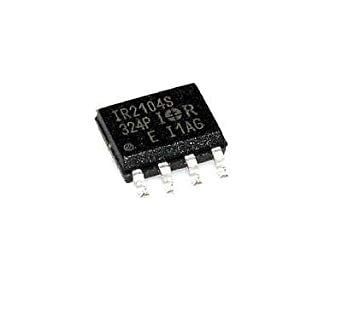

Description
- Gate drive supply range from 10 to 20V
- Undervoltage lockout
- 3.3V, 5V and 15V input logic compatible
- Cross-conduction prevention logic
- Internally set deadtime
- High side output in phase with the input
- Shut down input turns off both channels
- Matched propagation delay for both channels
| Mounting Type |
SMD/SMT |
|---|---|
| No. of Drivers |
2 |
| No. of Output |
2 |
| Maximum Supply Voltage (V) |
20 |
| Minimum Supply Voltage (V) |
10 |
| Max. Operating Current (mA) |
0.15 |
| Max. Output Current (A) |
360 mA |
| Rise Time |
100 ns |
| Fall Time |
50 ns |
| Propogation Delay-Max (ns) |
820 |
| Logic Type |
CMOS, TTL |
| Operating Temperature (°C): |
-40 to 125 |
| Maximum Turn-Off Delay-Time (nS) |
220 |
| Maximum Turn-On Delay-Time (nS) |
820 |
| Dimensions in mm (LxWxH) |
5 x 4 x 1.5 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
