Description

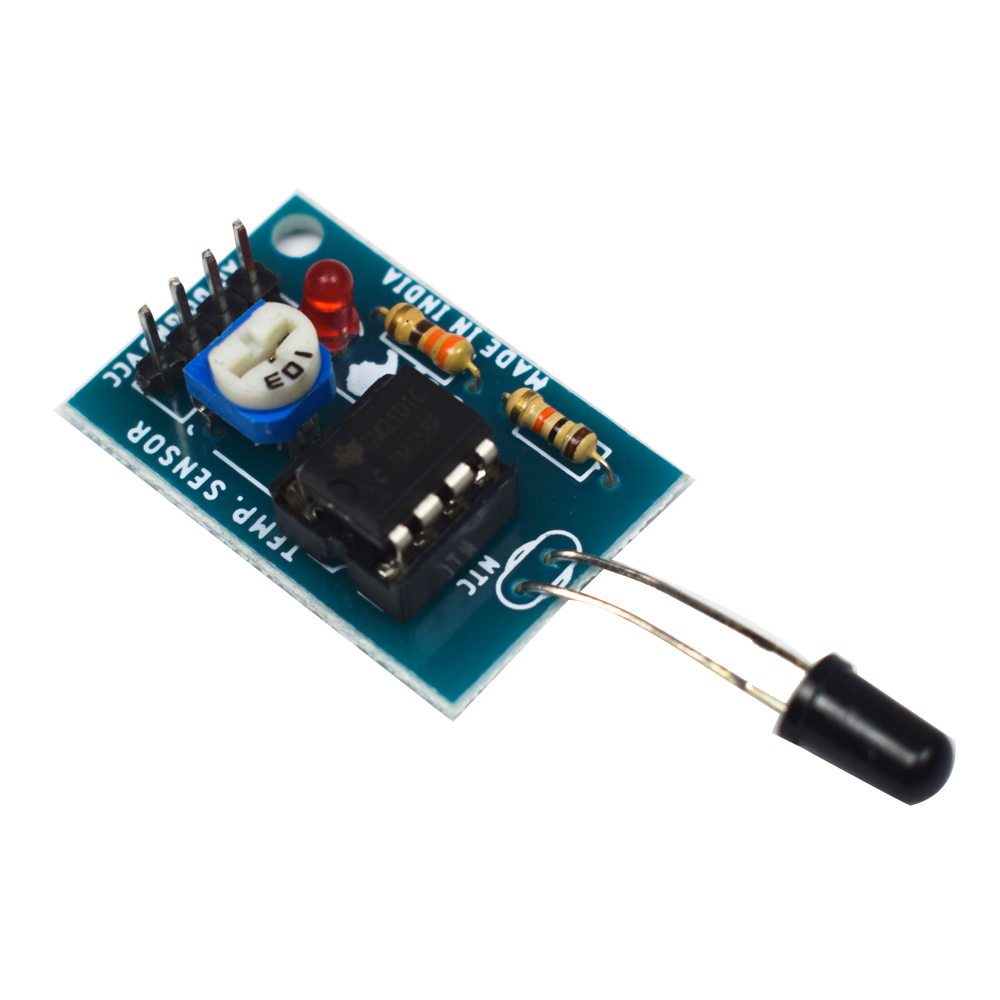

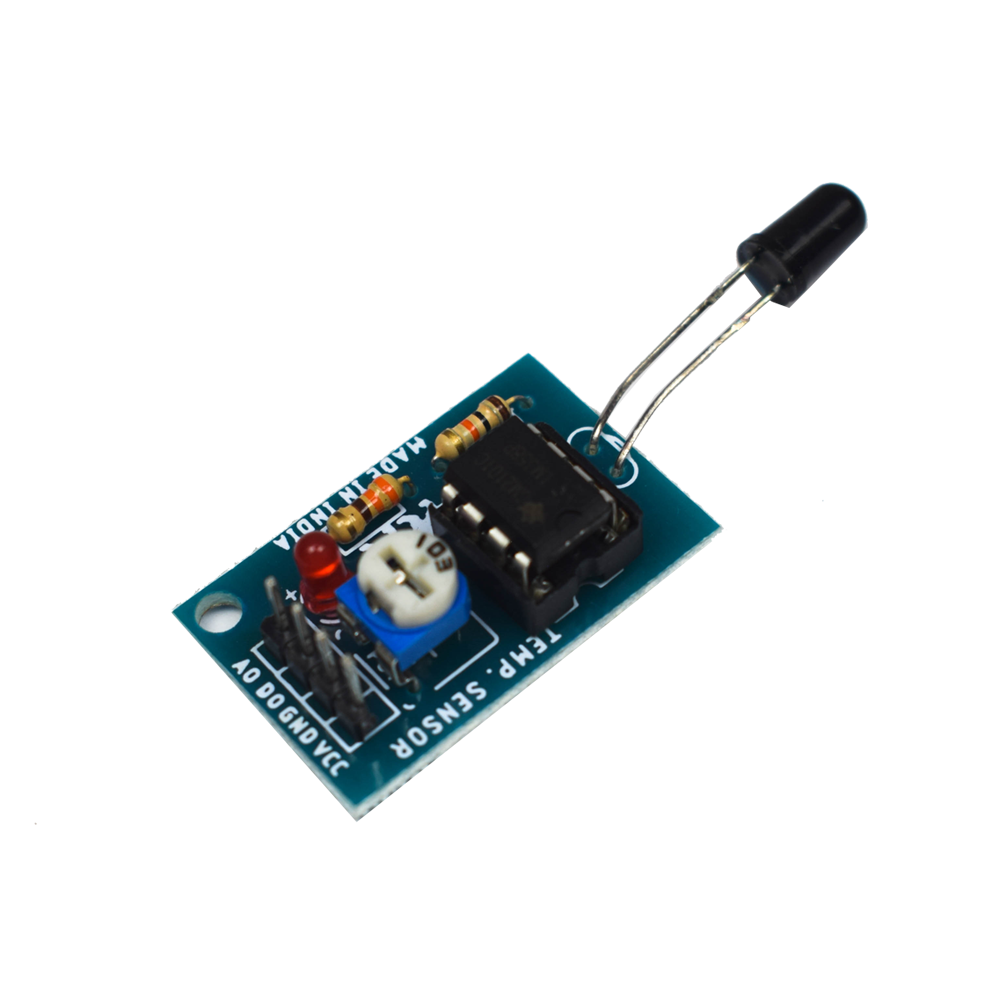

This is an Infrared Flame Sensor Temperature Module. A Flame Sensor module, also known as a Fire Sensor module, is a small electronic device that can detect a fire or other bright light sources. This sensor detects IR (Infrared) light wavelengths ranging from 760 nm to 1100 nm emitted by a fire or light source. It has four pins (A0, D0, Gnd, and Vcc) and can be used with Arduino and other microcontroller boards.
Features:-
- High Photosensitivity
- Fast Response Time
- Adjustable sensitivity
- Adjustable detection range
- The detection angle is about 60 degrees, sensitive to the flame spectrum.
Pinout:-
| Pin | Pin Name | Description |
| 1 | VCC | +5 v power supply |
| 2 | GND | Ground (-) power supply |
| 3 | OUT 1 (DO) | Digital Output (0 or 1) |
| 4 | OUT 2 (AO) | Analog Output |
Specifications
| Product | Flame Sensor Temperature Module |
| Type |
Flame Sensor |
| No. of Pins | 04 |
| IC Used | LM358 |
| Output Type | Digital and Analog |
| Dimensions | 31*20*9 (mm) |
| Make | Made in India |
| Country of Origin | China |
