Description

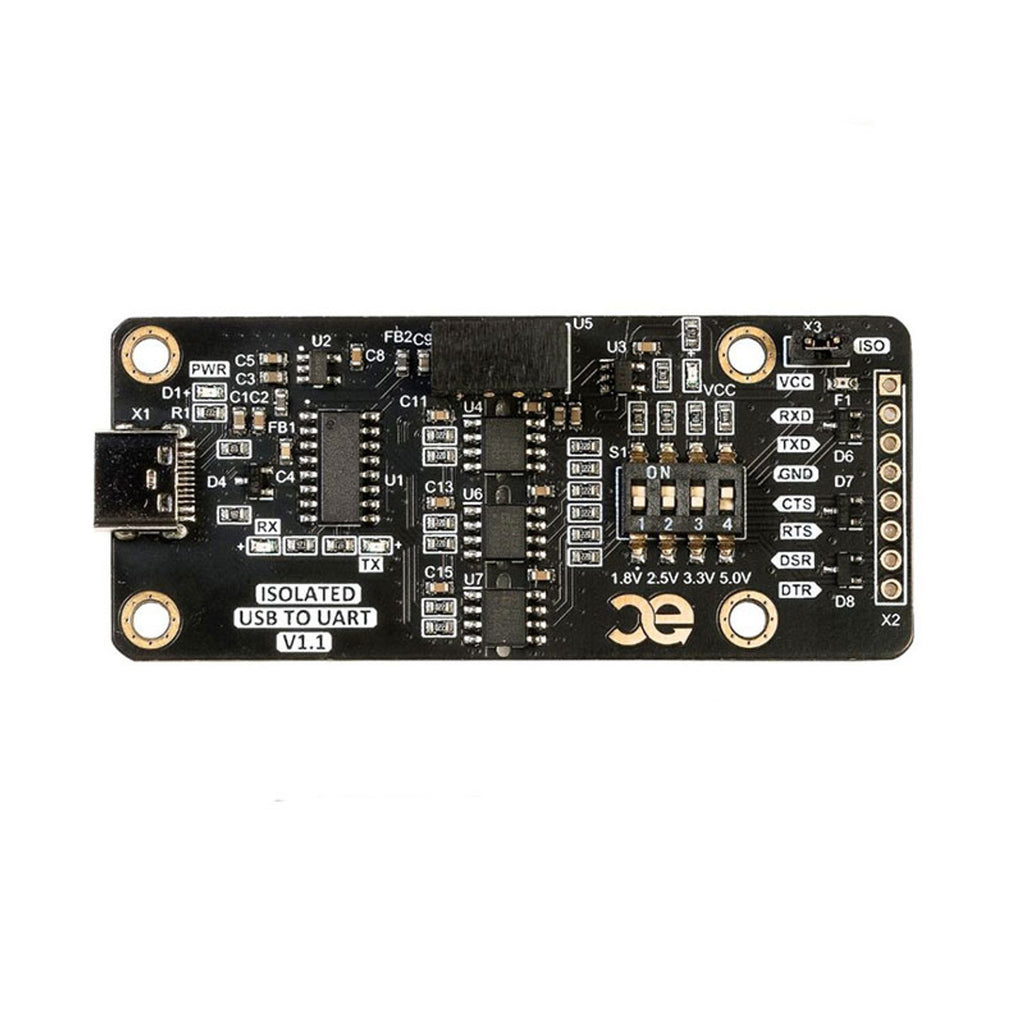

The Industrial Grade Isolated USB to UART Converter V1.1 is a robust device designed for reliable data communication. It provides galvanic isolation, protecting connected devices from electrical surges and ground loops. With a wide operating temperature range, it ensures stable performance in harsh industrial environments. Compatible with various UART devices, it supports multiple baud rates.
Specifications:
- Isolation Voltage: 2500V RMS
- Baud Rate: 300 bps to 1 Mbps
- Operating Temperature: -40°C to +85°C
- Power Supply: USB-powered
- Interface: USB 2.0, UART
- Connector Type: USB Type-A, DB9 or Terminal Block
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
- LED Indicators: Power, TX, RX
- Dimensions: Compact and portable design
- Compliance: CE, FCC
