Impact Switch Collision Sensor Module

Save 7%
Sold By: HatchnHack

Sale price₹ 28.00 Regular price₹ 30.00

Tax included Shipping calculated at checkout

Out of stock


This switch module is often known as a collision, impact or limit switch. It is used to detect when a robotic vehicle collides with an object, limit switches for detecting when something like a 3D printer head has reached its travel limit.

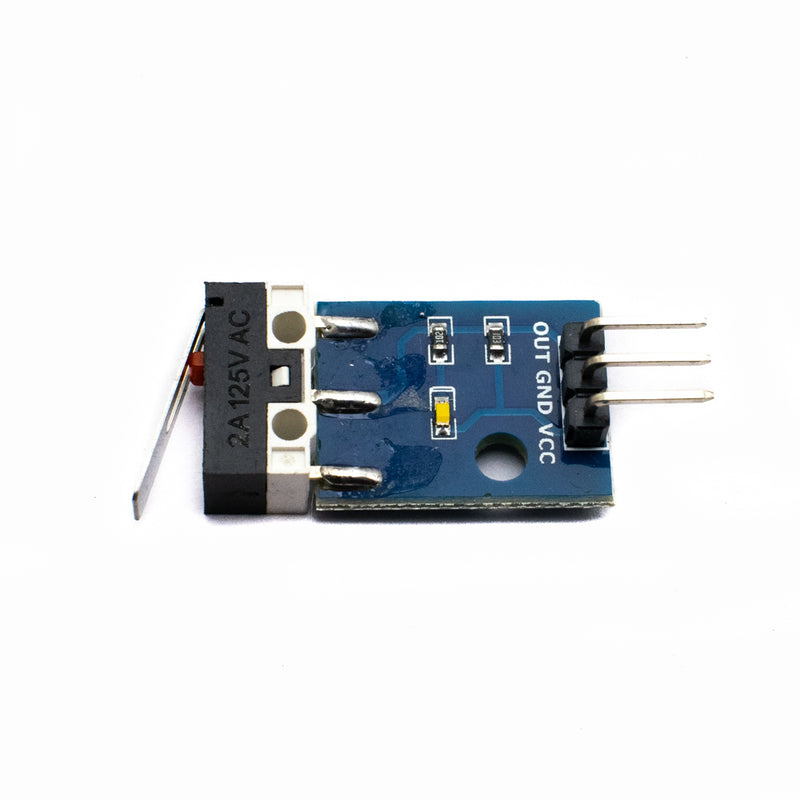

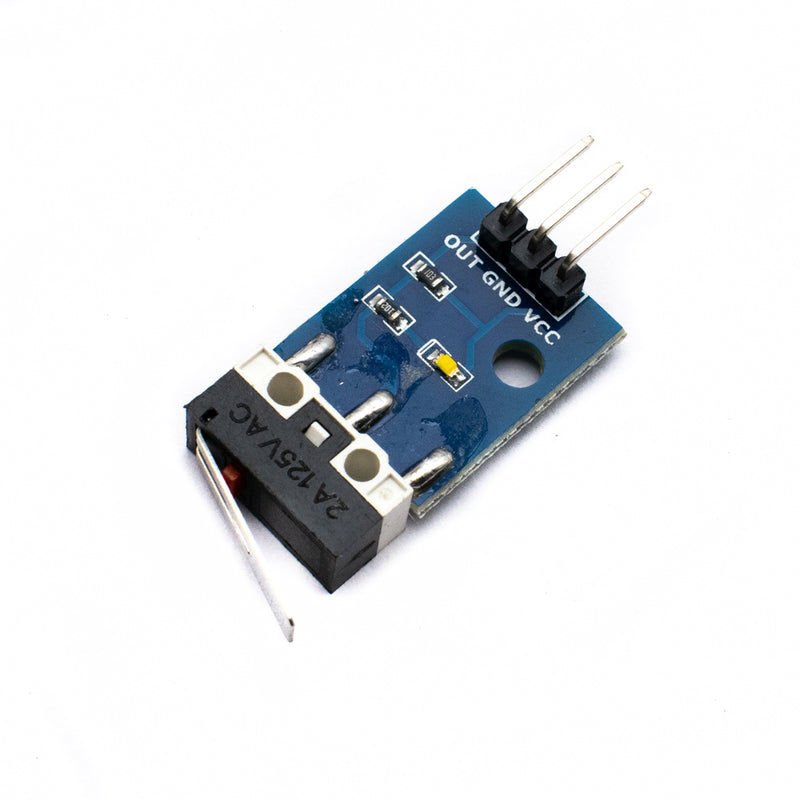

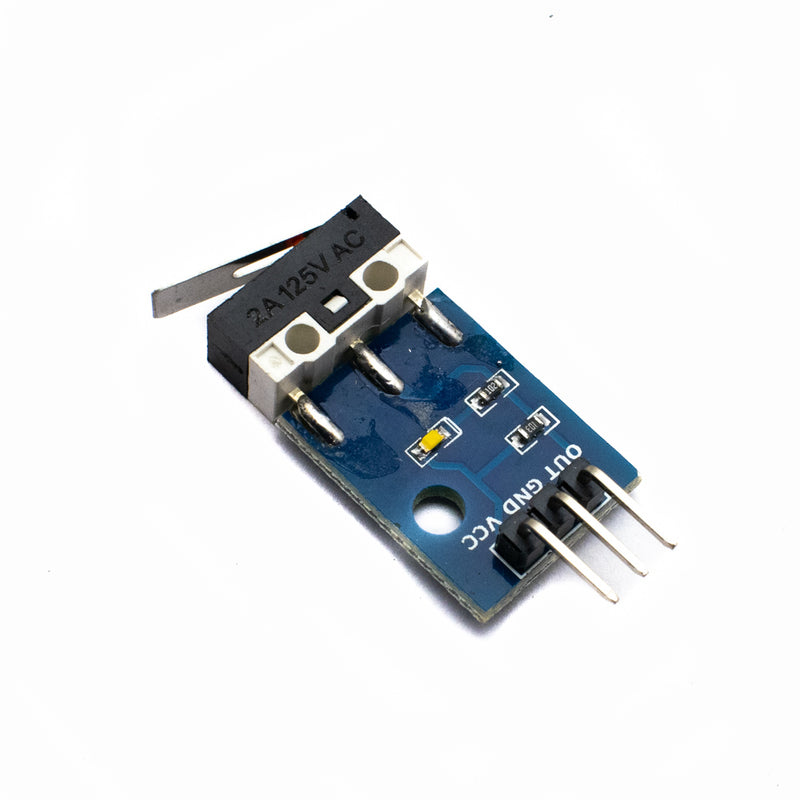

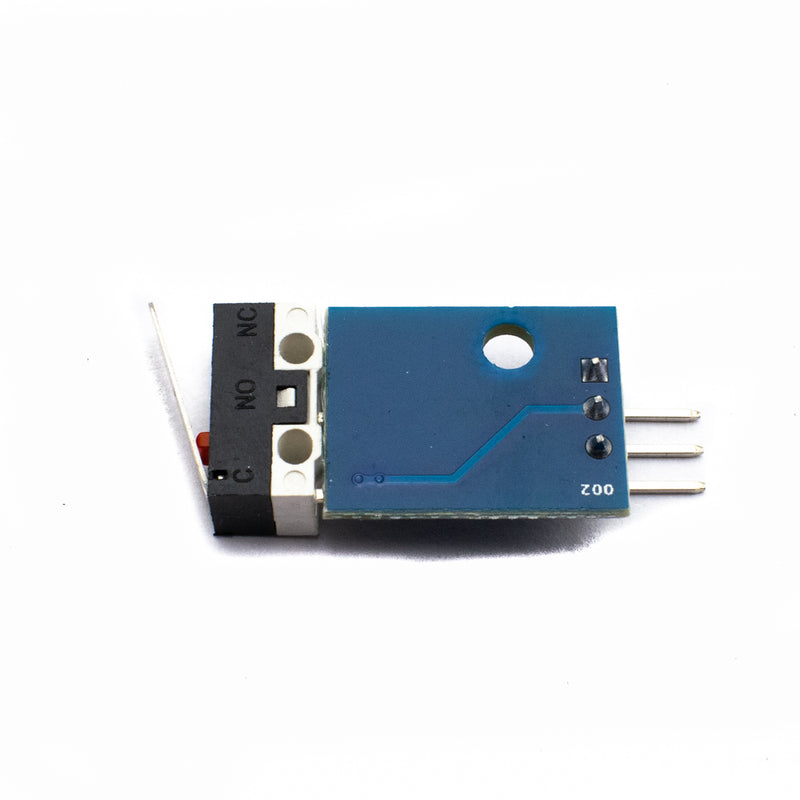

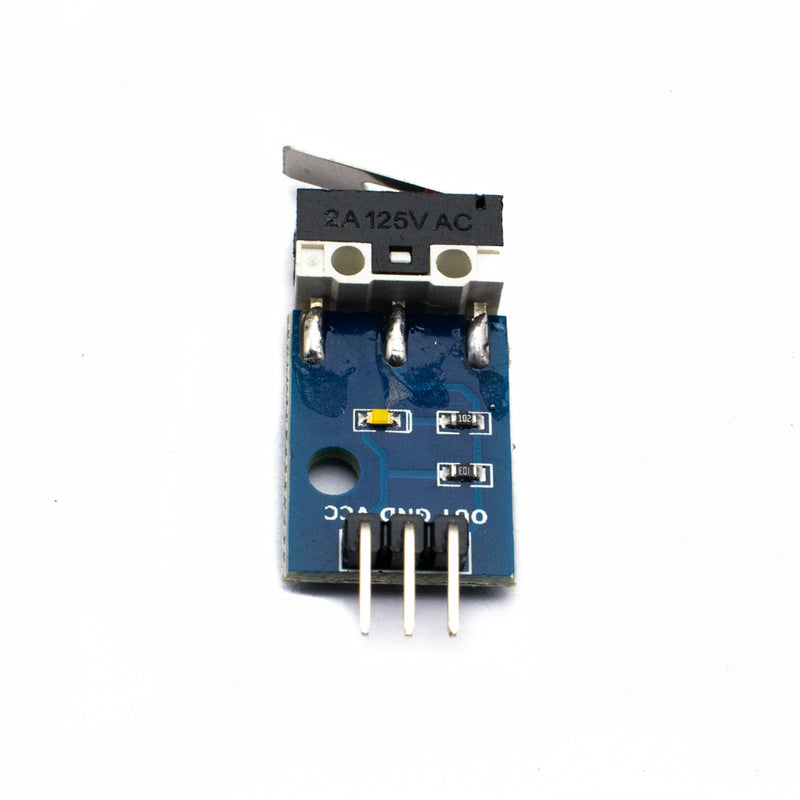

A microswitch with a lever is mounted on the module. The module's output is generally maintained HIGH by a 10K pull-up resistor. The output is dragged to the ground and becomes LOW when the switch lever is pressed, and the LED on the module lights up.

Operating Voltage 3V-5V DC
Default State HIGH
Switch Voltage Rating 125V
Switch Current Rating 2A
Size 25x14x6mm
Country of Origin China
