Description

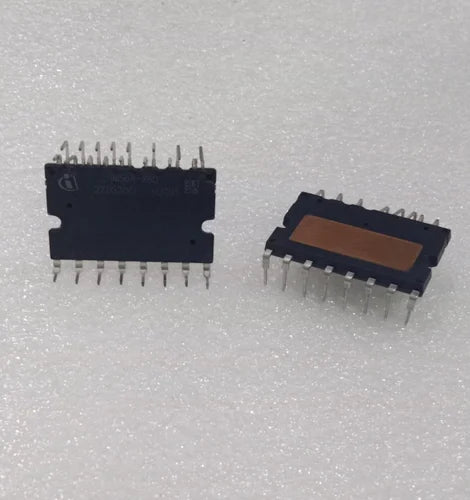

The ICM564-X6D is an Intelligent Power Module (IPM) designed for efficient power management in electronic circuits. It integrates advanced power semiconductor technology with optimized control features. The module is known for its high performance, compact design, and reliability, making it suitable for various industrial and consumer applications.
Specifications:
- Voltage Rating: 600V
- Current Rating: 50A
- Switching Frequency: Up to 20 kHz
- Operating Temperature: -40°C to +150°C
- Insulation Voltage: 2500V AC for 1 minute
- Control Logic Compatibility: 3.3V, 5V
- Protection Features: Over-current, over-voltage, under-voltage lockout, and thermal shutdown
- Package Type: Compact, high-density design for efficient heat dissipation
- Applications: Motor drives, inverters, power supplies, and industrial control systems
