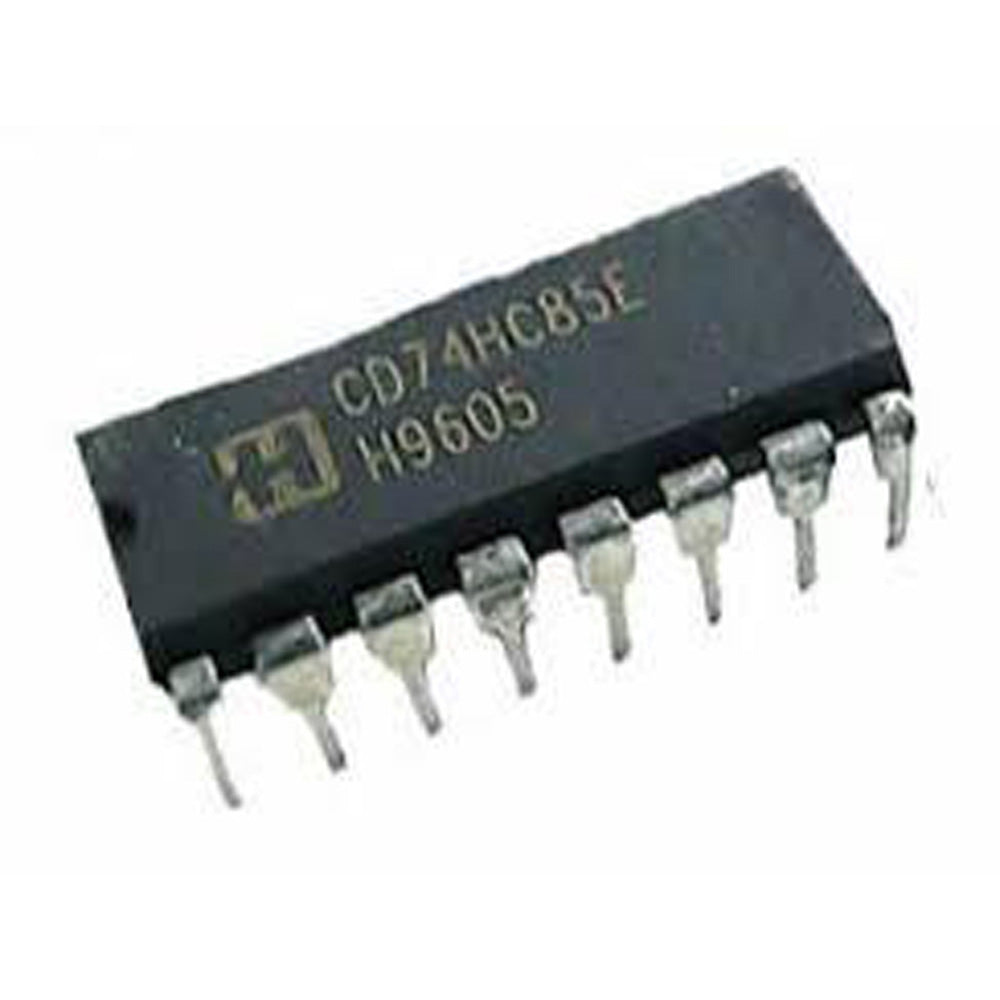

74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package
Rated 3.5/5 based on 11 customer reviews
74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package

74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package

  • Operating Voltage Range: 2.0-6.0V
  • Package: DIP-16
  • Output Current at VCC: 4mA
  • Propagation Delay: 13ns
  • Temperature: -65°C~125°C
In Stock
Product SKU: 2F14
24.00
₹ 20.34 + ₹ 3.66 (18% GST)
Wishlist
  • Order within
  • 74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package
    74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package ₹ 24.00
This product: 74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package
₹ 24.00 2400
₹ 24.00

Description:

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC85 is one of them. 74HC85 ICs contain a 4-bit Comparator that can compare two binary, BCD, or other monotonic codes and present the three possible magnitude results at the output i.e. A>B, A=B, and A<B. And it’s weighted inputs are A[0:3] and B[0:3] where A3 and B3 are MSB. 74HC85 comparator can work in both series cascading as well as parallel cascading without using any external gating. And this magnitude comparator can be expended almost to any length.

The 74HC85 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 160 uA through Icc and 1 uA per input pin. And the propagation delay is 13 ns. They can drive 10 LS-TTL loads at a time. This means that the single output pin of the comparator can drive 10 TTL-based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.

Specification:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−16
Input Current 1 uA
Powering Current 160 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 13 ns
Temperature Range -65 °C to +150 °C


Pin Configuration:

Word A Input 10, 12, 13, 15
Word B Input 9, 11, 14, 1
A>B Input 4
A=B Input 3
A<B Input 2
A>B Output 5
A=B Output 6
A<B Output 7
Power Supply (VCC) 16
Ground (GND) 8


Application:

  • Process controllers
  • Servo-motor control

Description:

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC85 is one of them. 74HC85 ICs contain a 4-bit Comparator that can compare two binary, BCD, or other monotonic codes and present the three possible magnitude results at the output i.e. A>B, A=B, and A<B. And it’s weighted inputs are A[0:3] and B[0:3] where A3 and B3 are MSB. 74HC85 comparator can work in both series cascading as well as parallel cascading without using any external gating. And this magnitude comparator can be expended almost to any length.

The 74HC85 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 160 uA through Icc and 1 uA per input pin. And the propagation delay is 13 ns. They can drive 10 LS-TTL loads at a time. This means that the single output pin of the comparator can drive 10 TTL-based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.

Specification:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−16
Input Current 1 uA
Powering Current 160 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 13 ns
Temperature Range -65 °C to +150 °C


Pin Configuration:

Word A Input 10, 12, 13, 15
Word B Input 9, 11, 14, 1
A>B Input 4
A=B Input 3
A<B Input 2
A>B Output 5
A=B Output 6
A<B Output 7
Power Supply (VCC) 16
Ground (GND) 8


Application:

  • Process controllers
  • Servo-motor control
