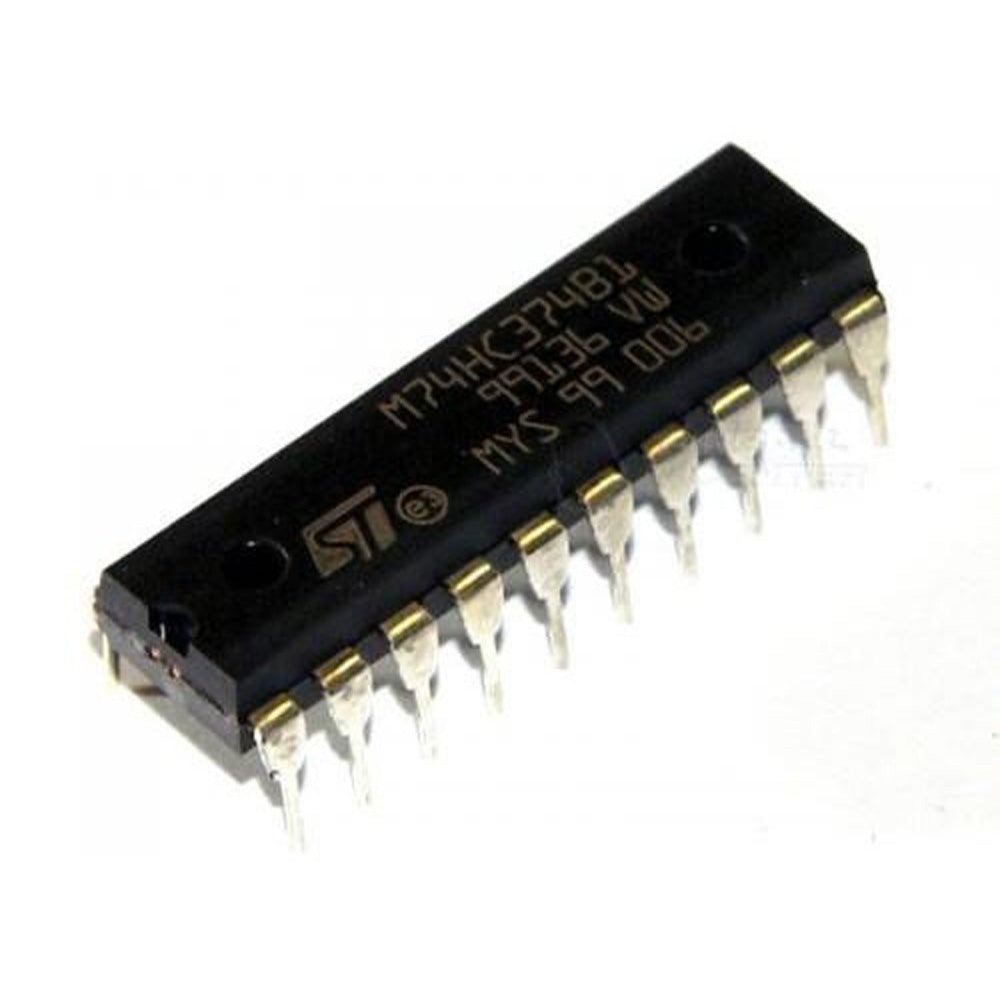

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC374 is one of them. 74HC374 ICs contain eight positive-edge-triggered D-type flip-flops with 3-Output states i.e. High, Low, and High Impedance. Which is designed specifically for driving highly capacitive or relatively low-impedance loads. High Impedance comes to active low enable pin of these ICs where output-enable (OE)’ input places the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. (OE)’ does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
The 74HC374 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 80 uA through Icc and 1 uA per input pin. And the propagation delay is 14 ns. They can drive 10 LS-TTL loads at a time. Which means that the output pin of D-type flip-flop can drive 10 TTL based Low-Power Schottky( LS ) input pins. They can provide 6 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 35 mA per output pin and 70 mA for overall pins in between 0 V to VCC.
|Operating Voltage Range||2.0 to 6.0 V|
|Input Current||1 uA|
|Powering Current||80 uA|
|Output Current at VCC||6 mA|
|Fan-Out||10 LS-TTL Load|
|Propagation Delay||14 ns|
|Temperature Range||-65 °C to +150 °C|
|Data Input (D[0:7])||3, 4, 7, 8, 13, 14, 17, 18|
|Output Pins (Q[0:7])||2, 5, 6, 9, 12, 15, 16, 19|
|Active Low Enable (OE')||1|
|Power Supply (VCC)||20|
