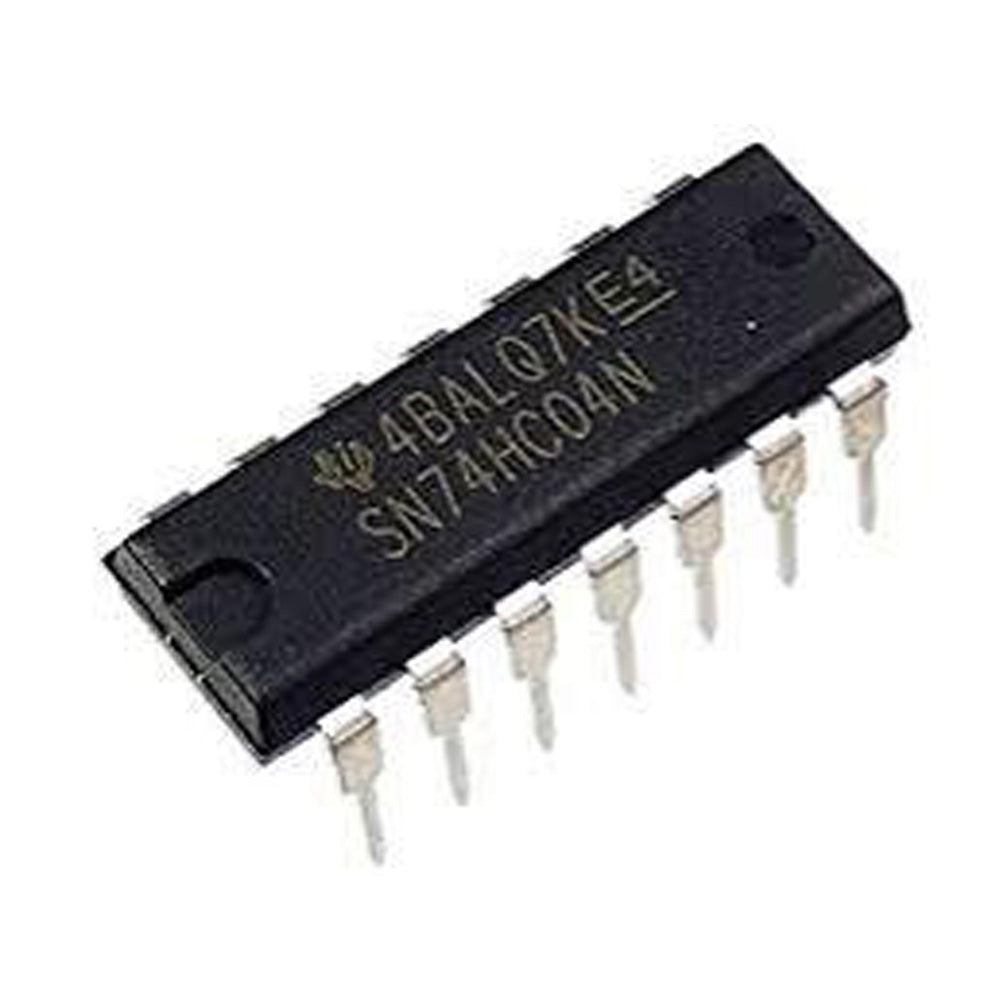

74HC04 Six 2 Input NOT Gate IC (7404 IC) DIP-14 Package

In Stock - SKU: 2F09

15.00
[ ₹ 12.71 + ₹ 2.29 (18% GST) ]
  • Operating Voltage Range: 2.0-6.0V
  • Package: DIP-14
  • Output Current at VCC: 4mA
  • Propagation Delay: 8ns
  • Temperature: -65°C~150°C
  • Order within

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC04 is one of them. 74HC04 ICs contain 6 independent Inverter. The boolean expression can be written as Y = A’ for each NOT gate.

The 74HC04 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 8-9 ns. They can drive 10 LS-TTL loads at a time. Which means that the single output pin of NOT gate can drive 10 TTL based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.

Specification:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−14
Input Current 1 uA
Powering Current 20 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 8 ns
Temperature Range -65 °C to +150 °C


Pin Configuration:

 Input Pins 1, 3, 5, 9, 11, 13
Output Pins 2, 4, 6, 8, 10, 12
Power Supply (VCC) 14
Ground (GND) 7


Applications:

  • Cameras
  • E-Meters
  • Ethernet Switches
  • Infotainment

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC04 is one of them. 74HC04 ICs contain 6 independent Inverter. The boolean expression can be written as Y = A’ for each NOT gate.

The 74HC04 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 8-9 ns. They can drive 10 LS-TTL loads at a time. Which means that the single output pin of NOT gate can drive 10 TTL based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.

Specification:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−14
Input Current 1 uA
Powering Current 20 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 8 ns
Temperature Range -65 °C to +150 °C


Pin Configuration:

 Input Pins 1, 3, 5, 9, 11, 13
Output Pins 2, 4, 6, 8, 10, 12
Power Supply (VCC) 14
Ground (GND) 7


Applications:

  • Cameras
  • E-Meters
  • Ethernet Switches
  • Infotainment
