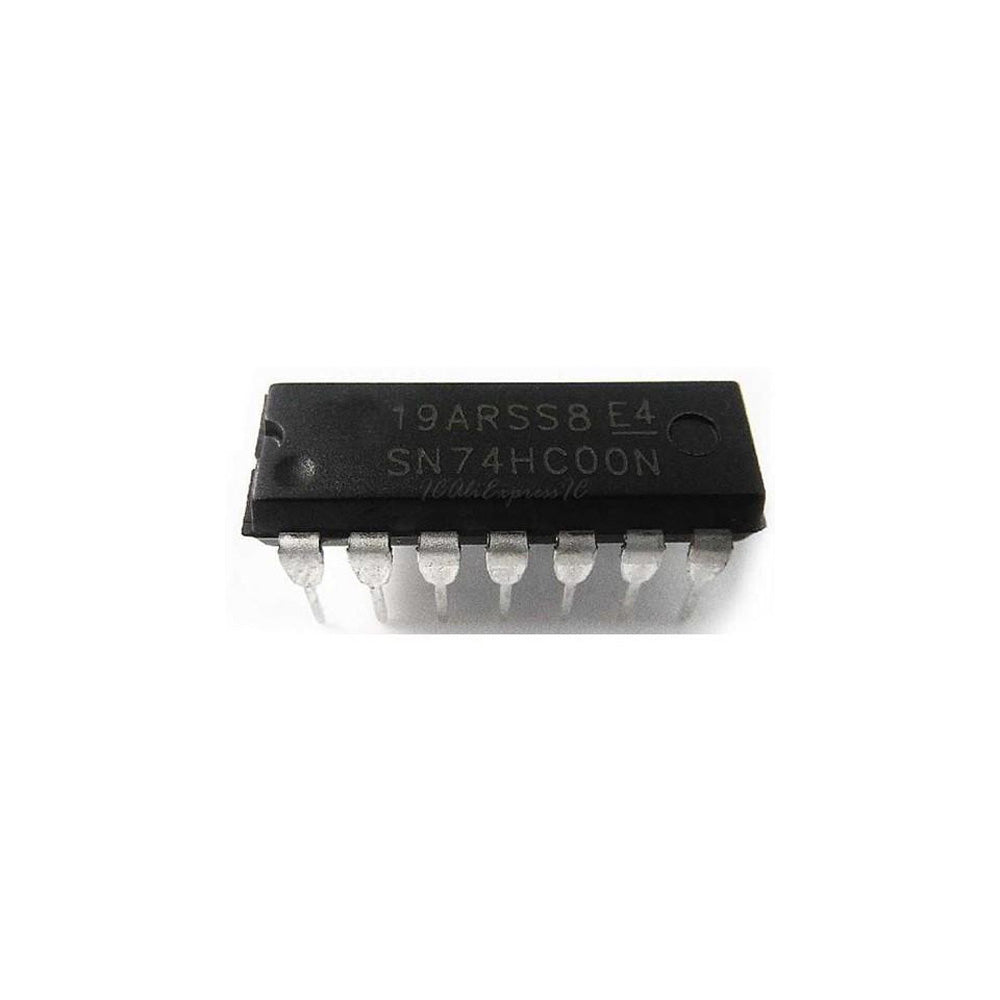

74HC00 Quad 2 Input NAND Gate IC (7400 IC) DIP-14 Package

Save 17%
Sold By: HatchnHackSKU: F12-80

Sale price₹ 8.28 Regular price₹ 10.00

Tax included Shipping calculated at checkout

Out of stock


74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC00 is one of them. 74HC00 ICs contain 4 independent, 2 input NAND gate. The boolean expression can be written as Y = ( A.B )’ for each NAND gate. Internal Structure of 74HC00 device,

The 74HC00 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 8-9 ns. They can drive 10 LS-TTL loads at a time. This means that the single output pin of the NAND gate can drive 10 TTL-based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.


Operating Voltage Range 2.0 to 6.0 V
Package DIP−14
Input Current 1 uA
Powering Current 20 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 8 ns
Temperature Range -65 °C to +150 °C

Pin Configuration:

 Input Pins 1, 2, 4, 5, 9, 10, 12, 13
Output Pins 3, 6, 8, 11
Power Supply (VCC) 14
Ground (GND) 7
Country of Origin China


  • AV Receivers
  • Portable Audio Docks
  • Blu-ray Players and Home Theater
  • MP3 Players or Recorders
  • Personal Digital Assistants (PDAs)
  • Power: Telecom or Server AC/DC Supply (Single Controller: Analog and Digital)
  • Solid State Drives (SSDs): Client and Enterprise
  • TVs: LCD, Digital, and High-Definition (HDTV)
  • Tablets: Enterprise
  • Video Analytics: Server
  • Wireless Headsets, Keyboards, and Mice
