Description

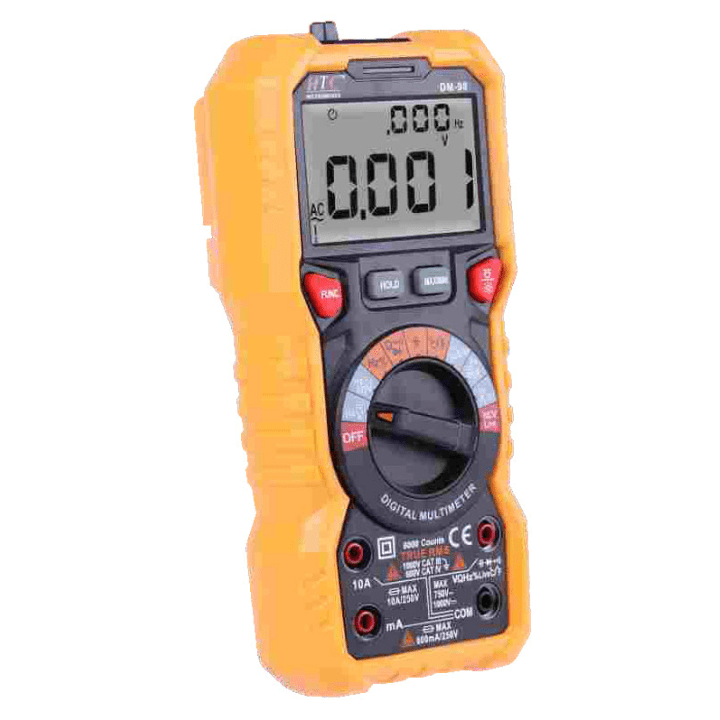

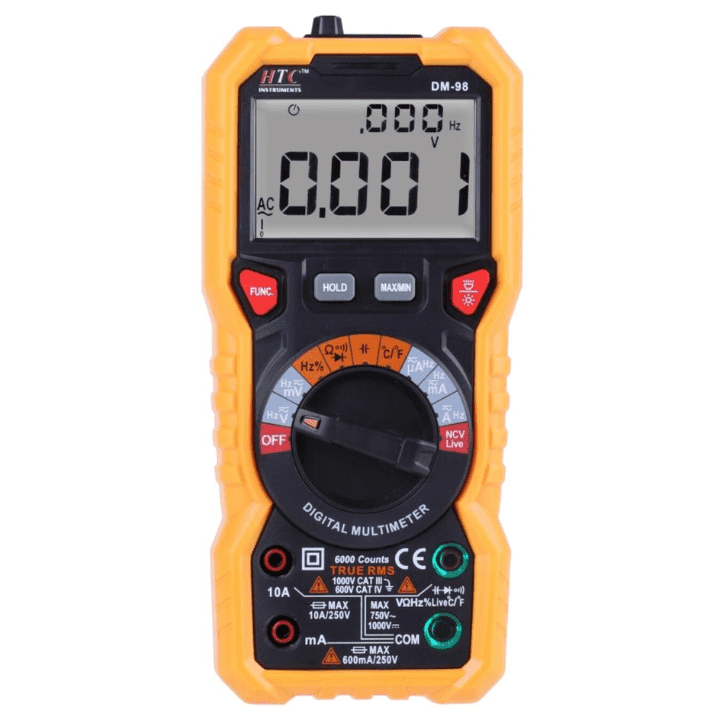

HTC DM-98 Digital Multimeter
HTC DM 6000 counts multimeter is a tool that is used to measure two or more electrical values. It offers an automatic output display and ensures high accuracy.
The measurement values are displayed on the LCD of the device. It contains LED indicators and an audible continuity set. The resistance of the tool is 600 - 60M ohm.
It has been provided with features such as data freeze, auto range, and backlight. EA6000 counts multimeter's unique quality is Dual LCD with bar graph, NCV, live test, double color backlight, try RMS, etc. Product Attributes: Frequency -10 Hz Weight - 249 g.
AC voltage range - 60 V DC voltage range - 600 MV. Color- Yellow Height - 188 mm Width- 88 mm Number of counts - 6000 Size of the display - 3 5/6
check out : HTC DM-91 Digital Multimeter
Key Features:
- Measures both DC and AC voltages from 600 mV to 1000 V (DC) and 600 mV to 750 V (AC).
- Measures resistance between 600 Ω and 60 MΩ..
- Detects currents from 600 μA to 10 A for both AC and DC.
- Measures capacitance from 10 nF to 1000 μF.
- Provides 6000 counts for accurate readings.
- Dual LCD with a bar graph for better visualization.
- Input Jack LED indication for correct input connections.
Package Includes:

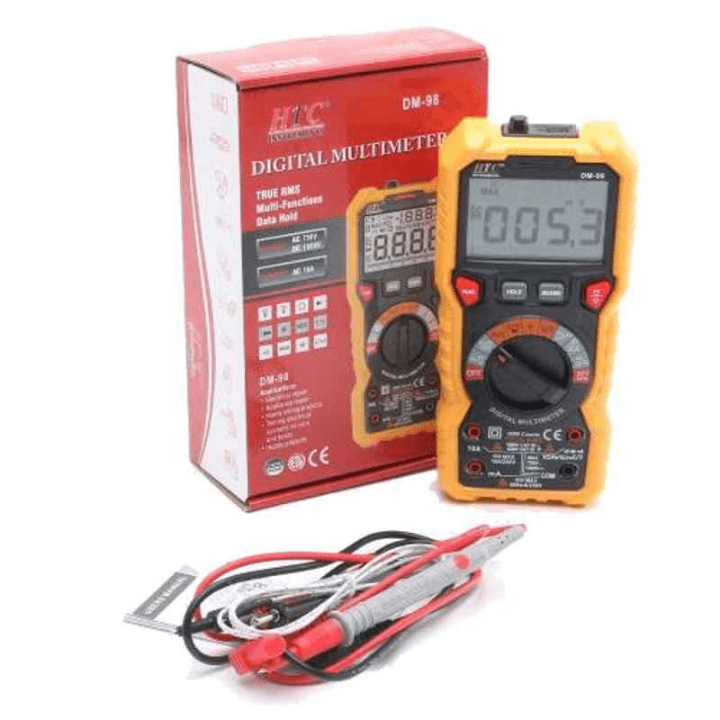

- 1 x HTC DM-98 Digital Multimeter
Specifications:
| Brand | HTC |
| DC Voltage Range |
600 mV-1000 V |
| Counts |
6000 |
| Battery Voltage |
1.5 V |
| Indication |
Input Jack LED |
| AC Current Accuracy |
±1.5% of Reading +3 Digits |
| AC Current Range |
600 μA-10 Amp |
| AC Voltage Resolution |
0.1-1 V |
| Package Contents |
Test Lead & Manual |
| Resistance Accuracy |
±(1.0% of Reading +3 Digits) ±(1.5% of Reading +3 Digits) |
| Number of Batteries |
2 |
| Capacitance Accuracy |
±(4.0% of Reading +5 Digits) ±(5.0% of Reading +5 Digits) |
| Capacitance Range |
10 nF-1000 μF |
| AC Voltage Range |
600 mV-750 V |
| DC Voltage Accuracy |
±(0.5% of Reading +3 Digits) |
| Display Digit |
3½ |
| AC Voltage Accuracy |
±(0.8% of Reading +5 Digits) |
| Resistance Range |
600 Ω-60 MΩ |
| Capacitance Resolution |
0.001 nF-0.01 mF |
| Temperature Accuracy |
±5% of Reading +3 Digits |
| DC Voltage Resolution |
0.1 mV-1 V |
| Dimensions |
188x88x58 mm |
| Resistance Resolution |
0.1-0.01 MΩ |
| Model No |
DM-98 |
| DC Current Resolution |
0.1 μA-0.01 A |
| Battery Type |
AAA |
| Type |
Digital |
| DC Current Accuracy |
±(1.2% of Reading +3 Digits) |
| DC Current Range |
600 μA-10 Amp |
| Temperature Range |
-20 to 0 deg C |
| AC Current Resolution |
0.1 μA-0.01 Amp |
| Display |
Dual LCD with Bargraph |
| Temperature Resolution |
1 deg C |
| Common/Generic Name |
Digital Multimeter |
| Dimensions LxWxH |
188x88x58 mm |
| Weight |
217 g |
