HTC DM-86 Digital Multimeter

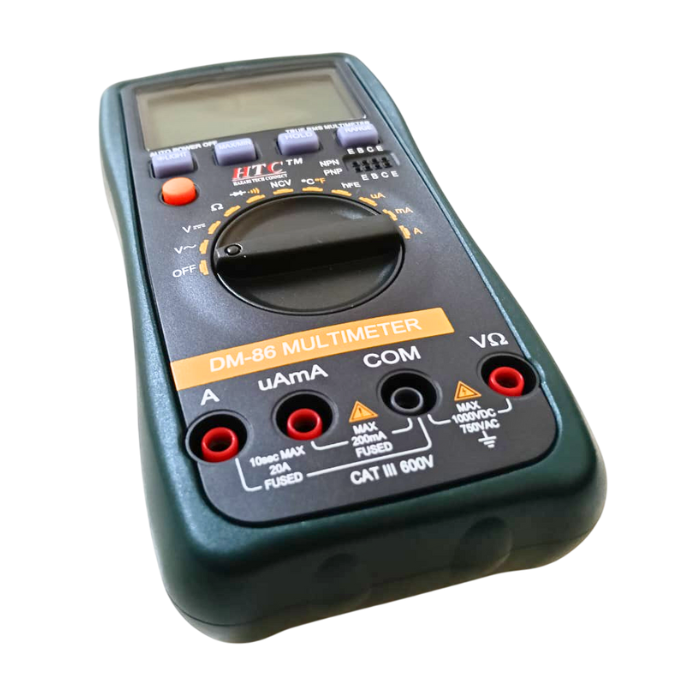

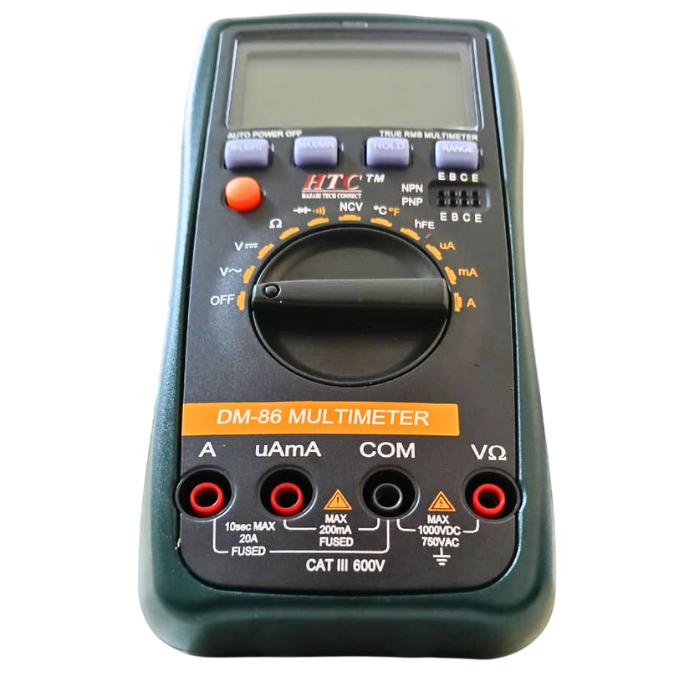

This is a 2000 Counts HTC DM-86 Digital Multimeter. It features various functions like Accurate measurement DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity, etc. It has Large LCD backlight display screen, can be easily used in dark places and clearly read the data on the display screen. The multimeter has a built-in safety tube protection device and an overload protection circuit to prevent burns. security is outstanding. The design of the shock-proof protective cover for the multi-use strap is scratch-resistand and impact-resistand. The dual protection is safer and safer to use, making the measurement worry-free.
check out : HTC DM-97 Digital Multimeter

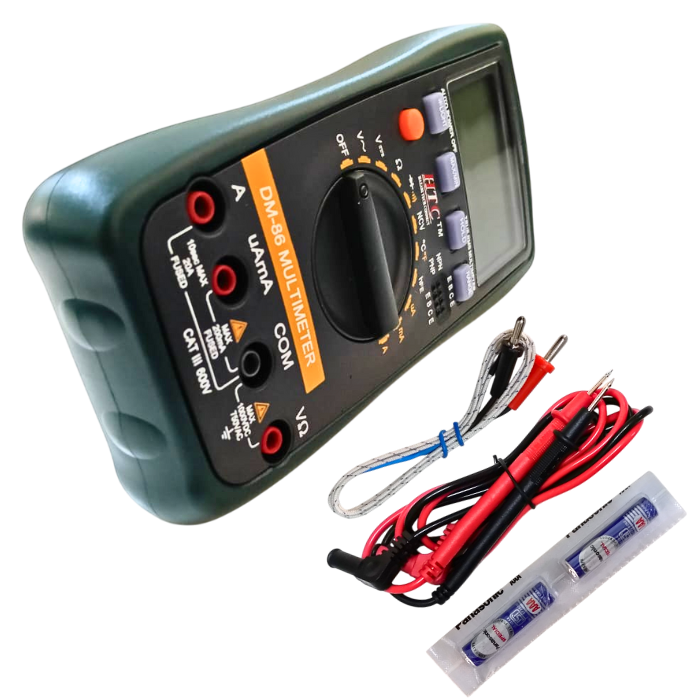

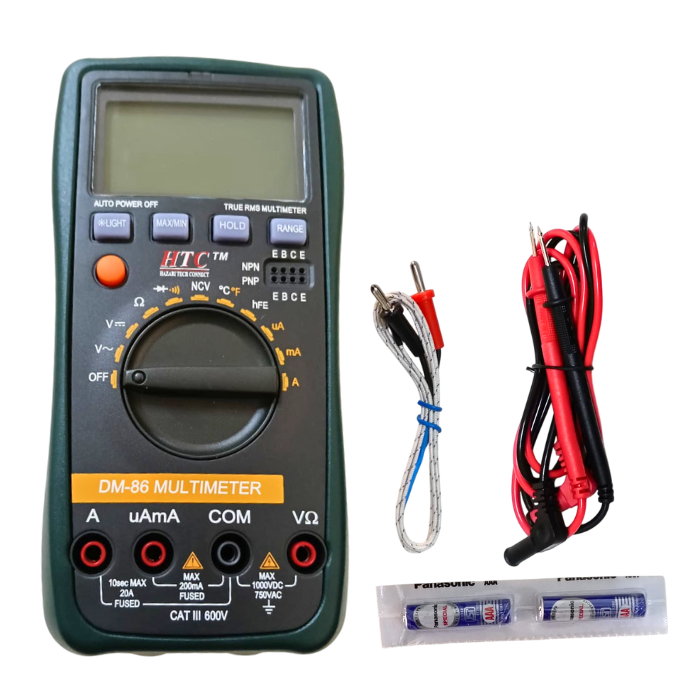

Package Includes:
- Test Leads
- Holster
- Temp. Probe
- User Manual
SPECIFICATIONS:
| Brand | HTC |
| DC Voltage Range |
200mV/2V/20V/200V/1000V |
| AC Current Accuracy |
±(1.5% + 5) |
| Dimensions |
170x86x35 mm |
| Temperature Range © |
-40°C-1000°C |
| AC Current Range |
200uA, 2mA, 20mA, 20mA, 2 & 20 Amp |
| Resistance Range (Ohm) |
200 ohm, 2 to 20 kohm, 200 kohm, 2 to 20 Mohm |
| Type |
Digital |
| DC Current Range (Amp) |
200µA-20A |
| Resistance Accuracy |
±(0.8% rdg + 1 dgt) |
| Overload Protection |
Yes |
| AC Voltage Range |
200mV, 2V, 20V, 200 & 750 V |
| DC Voltage Accuracy |
±(0.5% + 4 Digit) |
| DC Current Accuracy |
±(1.0% + 5) |
| DC Current Range |
200uA, 2mA, 20mA, 20mA, 2 & 20 Amp |
| AC Current Range (Amp) |
200µA-20A |
| DC Voltage Range (Volts) |
200mV-1000V |
| AC Voltage Range (Volts) |
200mV-750V |
| Item Code |
DM-86 |
| AC Voltage Accuracy |
±(0.8% + 5) |
| Display |
3½ Digits LCD Display |
| Items in Pack |
1 Piece |
| Power Input |
9V (6F22) battery |
| Common/Generic Name |
Digital Multimeter |
| Dimensions LxWxH |
170x86x35 mm |
| Weight |
217 g |
