Holybro Pixhawk 6X(Rev8) Mini Set+M9N GPS is new vibration isolation design uses the same custom-formulated durable isolation material as the Pixhawk 6X Pro, instead of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drone.
Features:
- Advanced Redundancy: Equipped with 3x ICM-45686 IMU sensors (±32g) using BalancedGyro™ technology and dual barometers for reliable performance.
- High-Performance Processor: Powered by STM32H753 processor running at 480 MHz for efficient and fast computations.
- Modular Design: Separate IMU, FMU, and base systems connected via 100-pin and 50-pin Pixhawk® Autopilot Bus connectors.
- Triple Redundancy Domains: Isolated sensor domains with independent buses and power controls for enhanced reliability.
- Ethernet Connectivity: High-speed mission computer integration with transformerless operation using 50 Ohm termination.
- Temperature-Controlled IMU: Ensures optimal working temperature for improved accuracy and reliability.
Applications:
- Drones and UAVs for research, surveillance, and mapping.
- Autonomous vehicles for land, air, and sea applications.
- Precision agriculture and environmental monitoring.
- Robotics and custom autonomous systems development

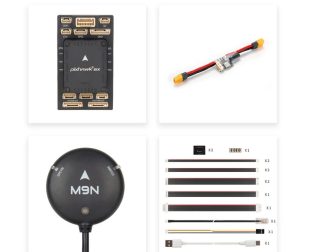

Package Includes:
1 x Pixhawk 6X Flight Controller Module
1 x Mini Baseboard
1 x PM02D Power Module
1 x Cable Set
1 x M9N GPS
