The Holybro Pixhawk 6X Mini Set + M10 GPS offers exceptional reliability and performance with triple redundancy, featuring three ICM-45686 IMU sensors with BalancedGyro™ technology and two barometer sensors. Powered by the high-performance STM32H753 processor (480 MHz), it supports fast computations and efficient data processing. The Ethernet interface ensures seamless integration with mission computers, while the temperature-controlled IMU board maintains consistent performance. With isolated sensor domains, separate power control, and a robust secure element (NXP EdgeLock SE050), the Pixhawk 6X is designed for industrial and commercial drone applications, ensuring high precision, reliability, and flexibility.
Features:
- Redundant Sensors: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ and 2x barometer sensors for high reliability.
- High-Performance Processor: STM32H753 processor running at 480 MHz for fast data processing.
- Modular Flight Controller: Separated IMU, FMU, and Base systems with 100-pin and 50-pin Pixhawk® Autopilot Bus connectors.
- Triple Redundancy Domains: Isolated sensor domains with separate buses and power control for enhanced system reliability.
- Vibration Isolation: Advanced durable vibration isolation material with high-frequency resonance for better sensor accuracy.
- Ethernet Interface: For high-speed integration with mission computers, enabling fast data transmission.
- Temperature-Controlled IMU: Optimized for consistent performance with a temperature-controlled IMU board.
Applications:
- Drones & UAVs for mapping and monitoring.
- Autonomous Vehicles for land, air, and sea navigation.
- Precision Agriculture for crop monitoring and spraying.
- Robotics for custom autonomous systems.
- Surveillance & Security for real-time monitoring.
- Search & Rescue for emergency response.

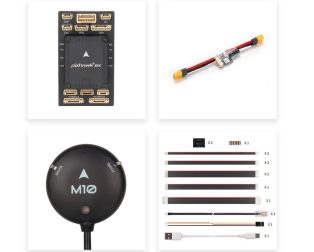

Package Includes:
1 x Pixhawk 6X Flight Controller Module
1 x Mini Baseboard
1 x PM02D HV Power Module
1 x Cable Set
1 x M10 GPS
