The Holybro Pixhawk 6X Mini Set offers exceptional reliability and performance with triple redundancy, featuring three ICM-45686 IMU sensors with BalancedGyro™ technology and two barometer sensors. Powered by the high-performance STM32H753 processor (480 MHz), it supports fast computations and efficient data processing. This new vibration isolation design uses the same custom-formulated durable isolation material as the Pixhawk 6X Pro, instead of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drone.
Features:
- Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
- High performance STM32H753 Processor with a clock speed of up to 480 MHz
- Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
- Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
- All New advanced durable vibration isolation material with resonance frequency in the higher spectrum
- Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the
- target device (AN2190 50 Ohm termination).
- Temperature-controlled IMU board, allowing optimum working temperature of IMUs
Applications:
- Ideal for drones, ground, and marine vehicles.
- Used in surveying, agriculture, and surveillance.
- Supports disaster response and search-and-rescue missions.
- Perfect for research, industrial, and custom robotics projects.

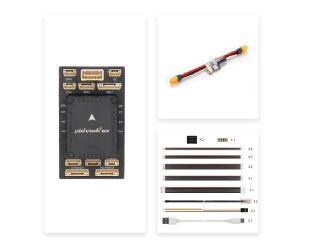

Package Includes:
1 x Pixhawk 6X Flight Controller Module
1 x Mini Baseboard
1 x PM02D HV Power Module
1 x Cable Set
