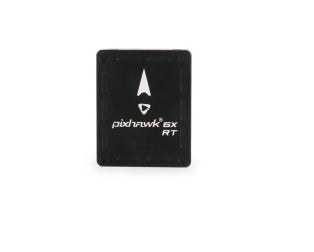

The Holybro 6X-RT is based on the Holybro Pixhawk FMUv6X-RT Open Standard and the Holybro Autopilot Bus Standard. It comes with PX4 Autopilot pre-installed. Inside the Holybro 6X-RT flight controller, you can find an NXP-based i.MXRT1176 MCU, paired with sensor technology from Bosch and InvenSense, giving you flexibility and reliability for controlling any autonomous vehicle.
Features:
- Redundancy: 3x IMU sensors and 2x barometer sensors for enhanced reliability.
- High-Performance Processor: Powered by STM32F103 IO processor.
- Modular Flight Controller: Separate IMU, FMU, and Base systems with 100-pin and 50-pin Pixhawk® Autopilot Bus connectors.
- Triple Redundancy Domains: Isolated sensor domains with separate buses and power control for improved reliability.
- Advanced Vibration Isolation: Durable material with higher spectrum resonance frequency to ensure precise sensor readings.
- Ethernet Interface: For high-speed integration with mission computers and transformerless operation using 50 Ohm termination resistors.
- Temperature-Controlled IMU: Keeps IMUs at an optimal working temperature for consistent performance.
Applications:
- Drones & UAVs for research and mapping.
- Autonomous Vehicles for land, air, and sea tasks.
- Precision Agriculture for monitoring and spraying.
- Robotics for custom autonomous systems.
- Surveillance & Security for real-time monitoring.
- Search & Rescue for disaster response
Package Includes:
1 x Pixhawk 6X Flight Controller Module
