This new vibration isolation design uses a custom-formulated durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone.
Features:
- Industrial-Grade IMU: ADIS16470 with ±40g accelerometer for accurate motion sensing in demanding UAV applications.
- Advanced Vibration Isolation: Durable material with high-spectrum resonance for industrial and commercial drones.
- Sensor Redundancy: Triple IMUs and double barometers on separate buses for reliability.
- High-Performance Processor: STM32H753 for efficient and fast processing.
- Modular Design: Separate IMU, FMU, and base system for flexibility and scalability.
- Safety-Driven Architecture: Sensors from various manufacturers for improved fault tolerance.
- Independent Power Management: LDO powers each sensor with independent control.
- Ethernet Interface: High-speed mission computer connectivity, supporting transformerless 50 Ohm termination.
- Temperature-Controlled IMU: Optimized IMU working conditions for precise performance.

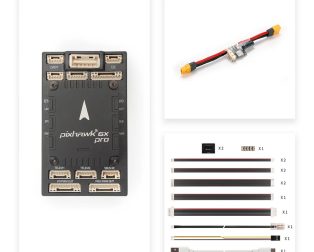

Package Includes:
1 x Pixhawk 6X Pro Flight Controller Module
1 x Mini Baseboard
1 x PM02D HV Power Module
1 x Cable Set
