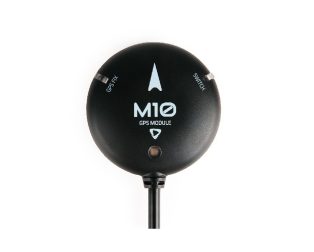

Holybro M10 GPS uses multi-constellation GNSS powered by the u-blox M10 series, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, a rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
Features
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- High-gain 25*25*4mm antenna
- IST8310 Compass
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED
Package Includes:
1x M10 GPS Module
1x Fixed Carbon Fiber GPS mount
