Description

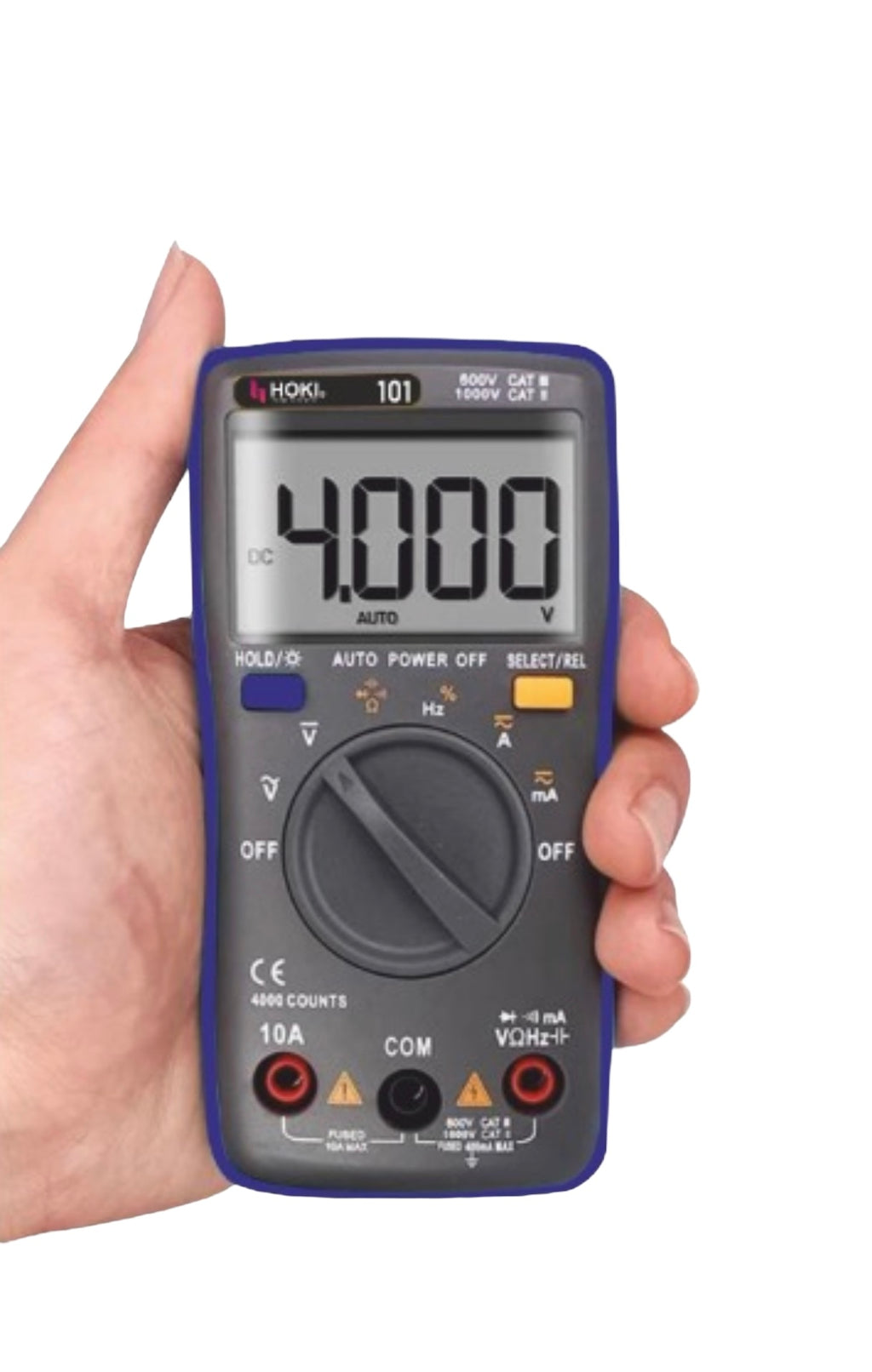

This is a HOKI-101 Auto Range Multimeter, 3 (3/4 Digits) 4000 Counts LCD with Backlight, APO, Capacitance, Rel Frequency, and Duty Cycle ranges. With the help of this multimeter, you can check AC/DC Voltage, Resistance, Frequency, Diode, Connectivity, Capacitor, and AC/DC Current.
Features

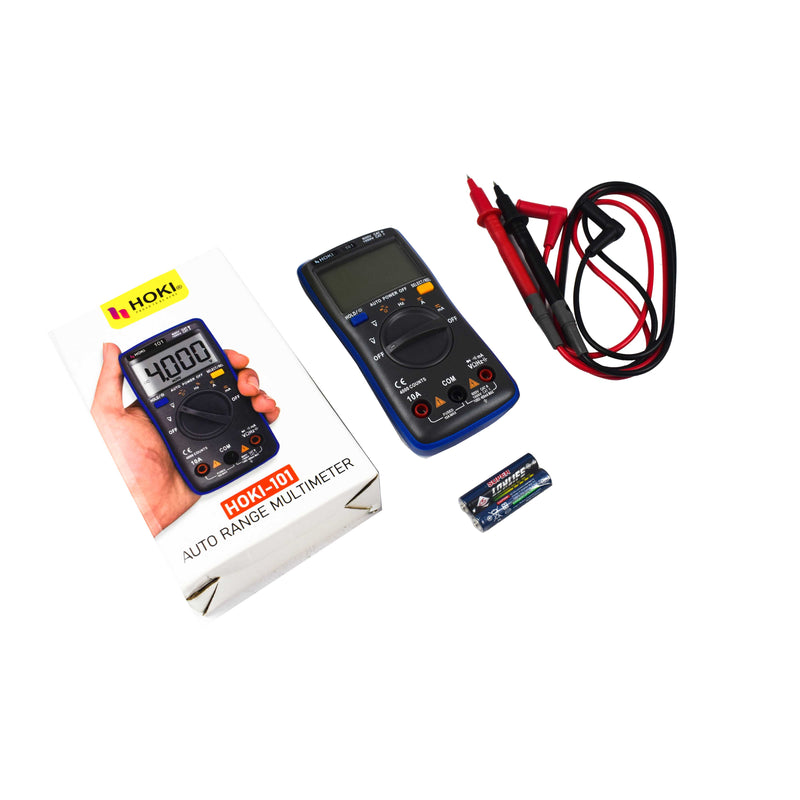

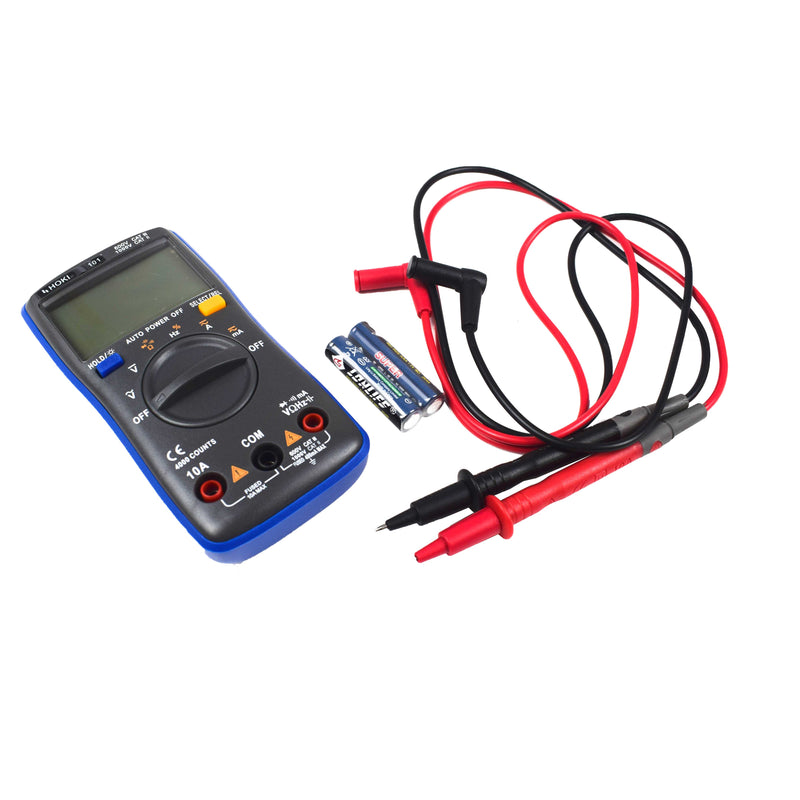

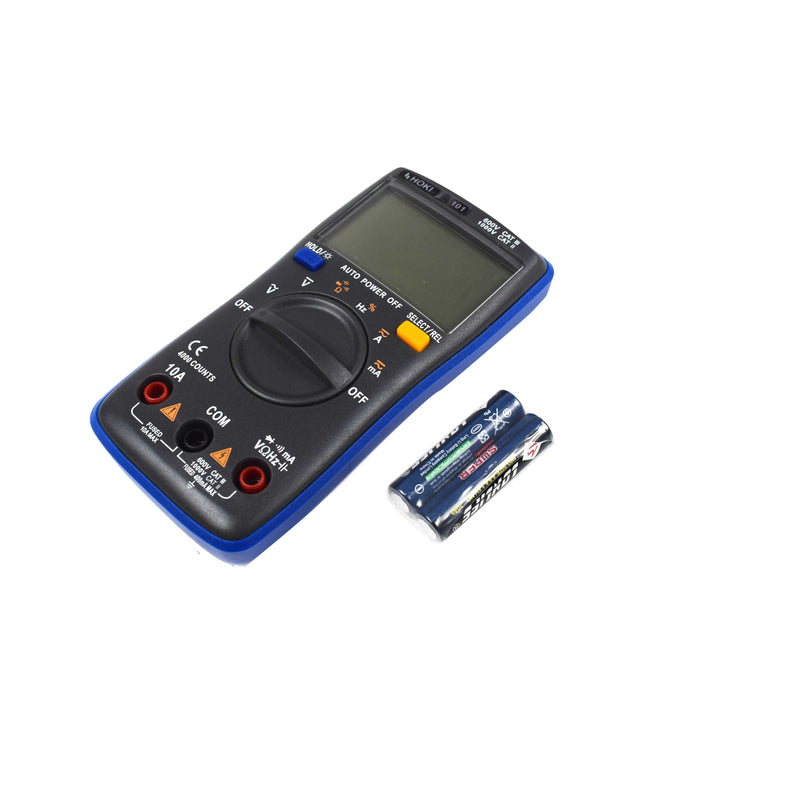

- Contains Multimeter, probes and a 1.5V AAA *2 Battery.
- 4000 Counts
- You can check AC/DC Voltage, Resistance, Frequency, Diode, Connectivity, Capacitor, and AC/DC Current.
- Tools | Multimeters | Digital Multimeters | Electrical Multimeters | Hoki-101 Auto Range Multimeter.
- Very compact and lightweight
Specification-
| Model |
HOKI-101 |
| Brand |
HOKI |
| Type |
Digital Multimeter |
| DC Voltage (Measuring Range) |
400mV/4/40/400/1000V |
| Accuracy |
+(0.5% rdg + 4 dgt) on 400mV/4/40/400V +(0.8% rdg + 4 dgt) on 1000V |
| AC Voltage (Measuring Range) |
4/40/400/750V |
| Accuracy |
+(1.2% rdg + 4 dgt) on all ranges expect +(1.5% rdg + 4 dgt) on 750V |
| AC Response |
40Hz - 400Hz |
| DC Current |
40/400mA /4/10A |
| Accuracy |
+(1.5% rdg + 4 dgt) on 40/400mA +(1.5% rdg + 4 dgt) on 4/10A |
| AC Current |
40/400mA /4/10A |
| Accuracy |
+(2.0% rdg + 4 dgt) |
| AC Response |
40Hz - 200Hz |
| Resistance | 400 /4/40/400K /4/400M |
| Accuracy |
+(0.8% rdg + 4 dgt) on all ranges except +(2.0% rdg + 4 dgt) on 40M |
| Capacitance |
4.000/40.00/400.0nF/4.000/40.00/200.0nF |
| Accuracy |
+(3.5% rdg + 4 dgt) on all ranges except +(2.5% rdg + 4 dgt) on 40.00nF |
| Frequency |
99.99Hz - 10.00MHz |
| Sensitivity |
1V to 36V AC |
| Accuracy |
+ (0.08% rdg + 2 dgt) |
| Power |
AAA Battery (1.5V X 2) |
| Battery Included | YES |
| Size (LxWxH) (mm) | 130 X 65 X 27 mm |
| Measuring Probe Length (cm) | 60cm |
| Country of Origin | China |
