HM10 BLE

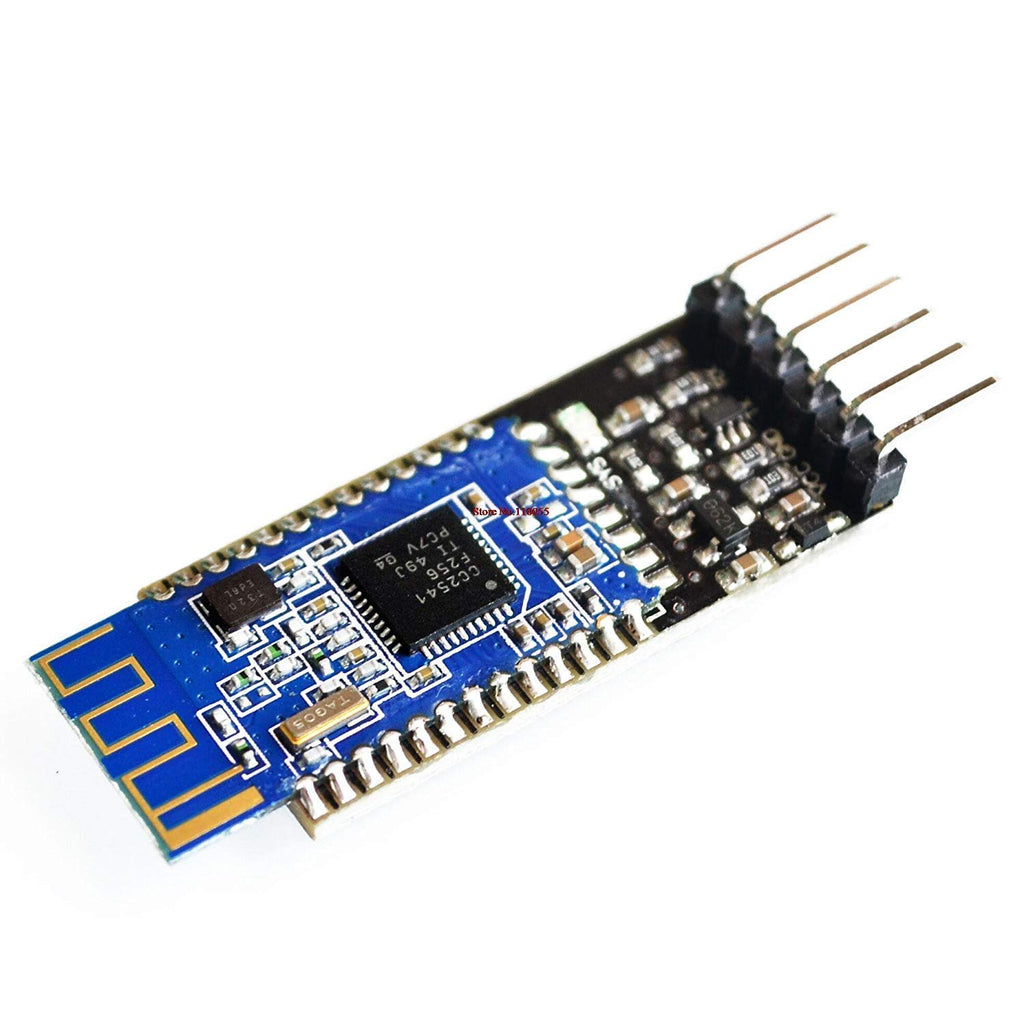

HM10 BLE Bluetooth 4.0 module

The HM-10 Bluetooth module is a widely available and inexpensive Bluetooth 4.0 module that enables wireless data communication. As the cheapest Bluetooth module with 4.0 technology, it offers the latest advancements at an affordable rate. Based on the TI CC2540 or CC2541 Bluetooth SOC, this small 3.3v SMD Bluetooth 4.0 BLE module has become a popular choice for use with the Arduino due to its standard UART serial connection, which makes it easy to connect to the board.

There are two versions of the HM-10, namely the HM-10C and the HM-10S, with both offering multiple communication methods. However, what sets the HM-10 apart from other bluetooth modules is its latest technology at the most affordable prices.

Although the HM-10 is Bluetooth version 4.0 only, it is capable of supporting iPhone 4s or later, and it can be used to add Bluetooth features to any project. One of its key features is its low power consumption, making it a suitable choice for continuous data-sending devices in IoT applications. It is worth noting that the HM-10 cannot connect to Bluetooth 2/2.1 modules such as the HC-06 and HC-05 due to its 4.0 technology.

HM10 Pinout:

Features:

• Bluetooth 4.0: The HM-10 uses the latest Bluetooth 4.0 technology, which offers a number of advantages over previous versions, including faster data transfer speeds, longer battery life, and improved security.
• Low power consumption: The HM-10 is designed to consume very little power, making it ideal for battery-powered devices.
• Long range: The HM-10 has a range of up to 100 meters in open space.
• Secure connection: The HM-10 uses a secure connection to protect your data from unauthorized access.
• Easy to use: The HM-10 is easy to use and can be configured using a simple set of AT commands.
• Affordable: The HM-10 is very affordable, making it a great option for budget-minded projects.

Applications:

• Wearable devices
• Bluetooth intelligent application
• Mobile phone accessories
• RFID labels
• Smart home appliances
• Industry control
• Data acquisition system

Package Includes:

• 1 x HM10 BLE

Specifications:
