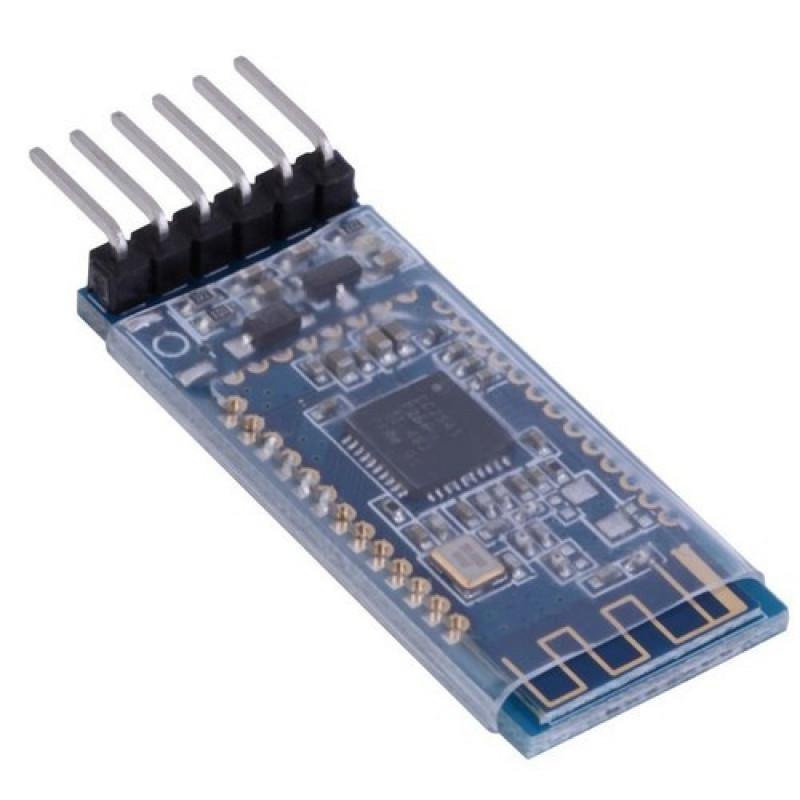

HM-10 Bluetooth Module-China Make

HM-10 Bluetooth Module-China Make

The HM-10 module is a small Bluetooth 4.0 module that utilizes the Texas Instruments CC2540 or CC2541 BLE System SoC (System on Chip). It operates on 3.3v SMD and can be controlled through the serial UART connection by sending AT commands. The main purpose of the HM-10 module is for wireless data communication, but it is crucial to note that it can only connect with Bluetooth 4.0 based modules, and not with Bluetooth 2/2.1 modules like HC-05 and HC-06.

Due to its standard UART serial connection, the HM-10 bluetooth module is widely used with the Arduino and is available in two versions: HM-10C and HM-10S. The HM-10S is primarily for data transmission, whereas the HM-10C serves as a remote control version with PIO status. The HM Bluetooth modules use CSR or TI CC254x or Cypress chips, allowing them to operate as both master and slave roles.

Also check out the HC-05 Bluetooth Module for seamless connectivity.

Pinout:

Features:

• Bluetooth 4.0 module that includes Bluetooth Low Energy (BLE) and transmits over the 2.4 GHz ISM band
• Based on the TI CC2540 or CC2541 Bluetooth SOC (System On Chip)
• Available in two versions: HM-10C and HM-10S
• This module doesn't get connected to mobile Bluetooth directly but can be connected using BLE Scanner App in mobile.
• Controlled via AT commands and designed for establishing wireless data communication
• Small 3.3v SMD Bluetooth 4.0 BLE module
• Popular for use with the Arduino due to its standard UART serial connection that makes it easy to connect to an Arduino

check out: Starson S100 Mini Bluetooth Earbuds

Applications:

• Wireless Data Communication: Facilitates wireless data transfer between devices.

• IoT Devices: Commonly used in Internet of Things (IoT) applications for remote monitoring and control.

• Wearable Technology: Suitable for fitness trackers and other wearable devices.

• Home Automation: Enables wireless control of home appliances.

• Health Monitoring: Used in medical devices for monitoring health parameters.

• Robotics: Integrates into robotic systems for wireless control and communication.

• Mobile Phone Accessories: Used in accessories like headphones and smartwatches.

• Computer Peripherals: Connects peripherals such as keyboards and mice wirelessly

Package Includes:

• 1 x HM-10 Bluetooth Module

Features of the HM-10 Bluetooth Module
