Description

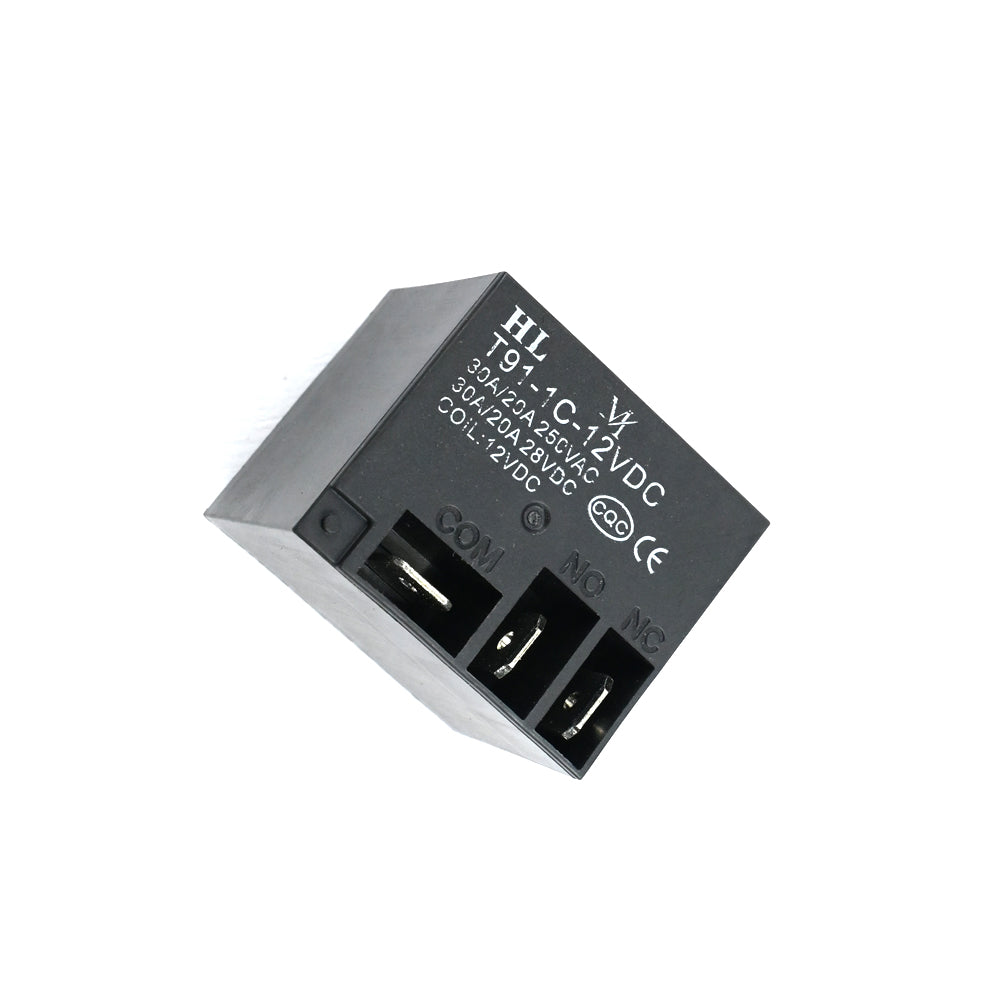

12V 30A is a general-purpose relay. Mostly, relays are used to perform switching operation without manual touch and it is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- When galvanic isolation is desired, relays are employed whenever it is necessary to control a high-power or high-voltage circuit with a low-power circuit.
- Lighting control systems.
- Industrial process controllers.
- Traffic control.
- Motor drives control.
- Protection systems of electrical power system.
- Coil Voltage: 12V DC
| Specifications | |
|---|---|
| Colour | Black |
| Voltage rating | 12V DC |
| Type | Relay |
| Current | 30A |
| Mounting Style | Through Hole |
| Dimension | 27x27.5x31mm |
| No of Pins | 5 |
| Brand | HL |
