Description

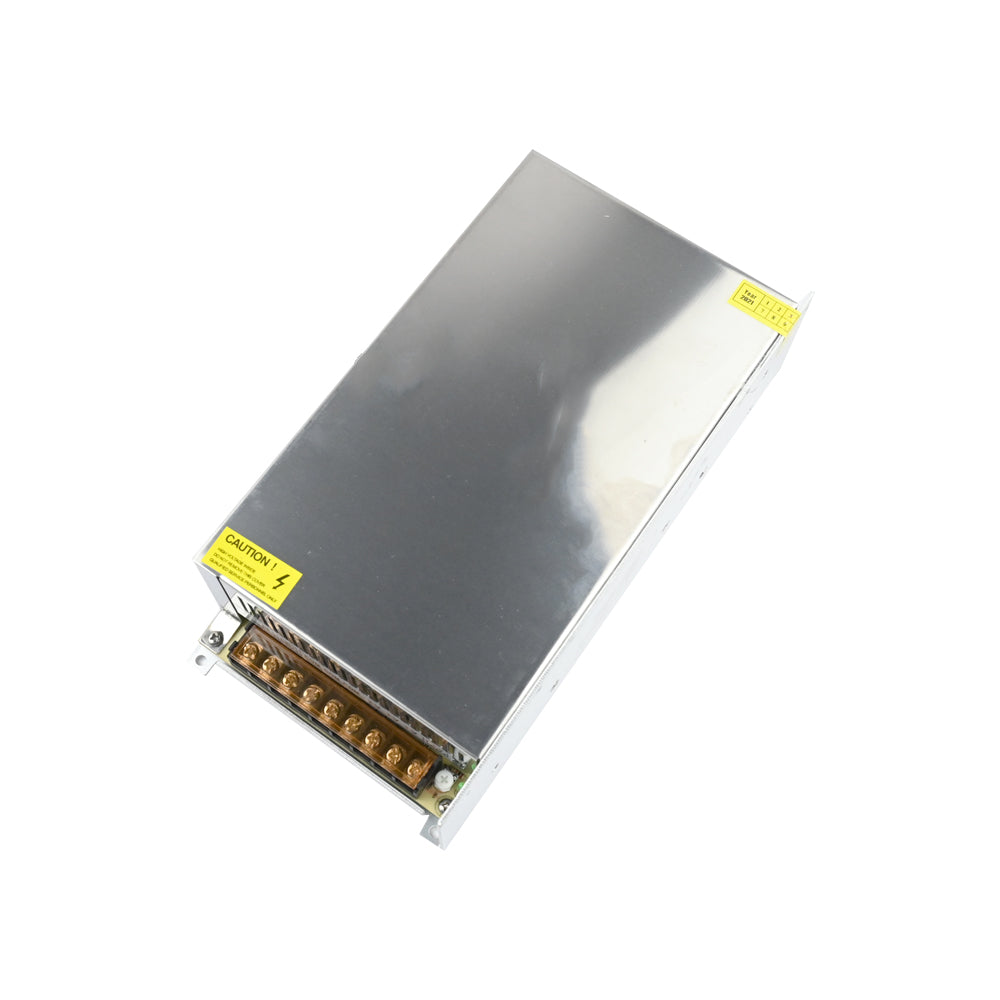

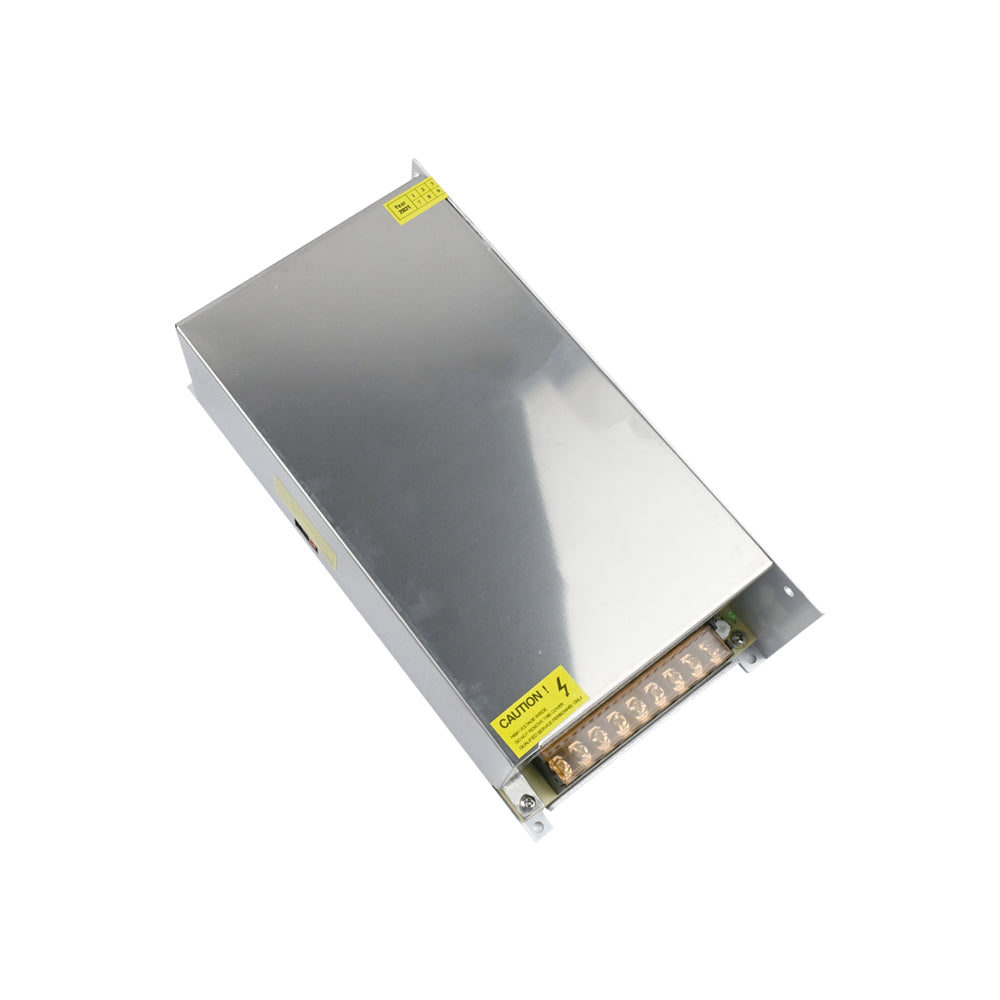

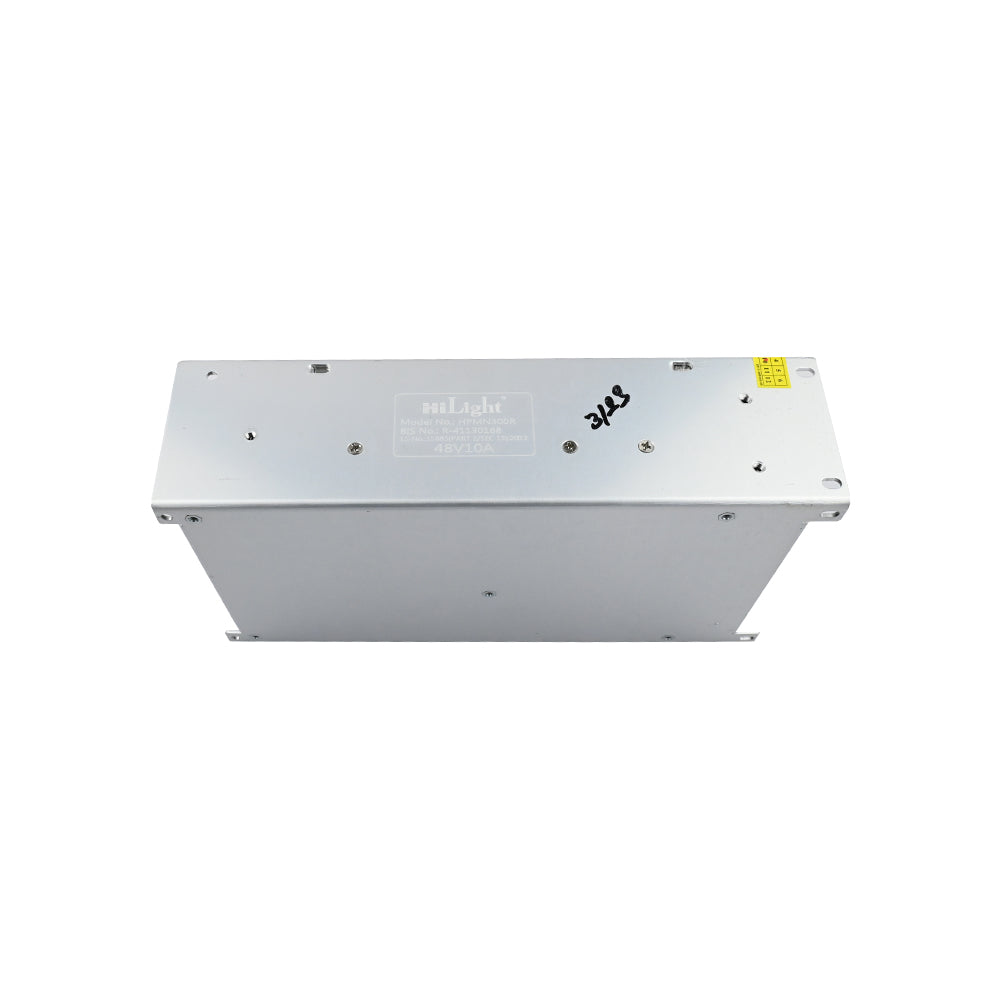

It is a Hilight 48V 10A SMPS Power Supply with Fan Cooling. It consists of 3 input terminals, which are one line, one neutral, and one ground and 6 output terminal. This power supply has an inbuilt fan on/off control circuit. Fan automatically works according to working temperature. It is enclosed by metal core and we can easily adjust the voltage. It also provides better regulation. Basically, it is a power supply which convert 220V alternating voltage into 48V DC. It is commonly used in LED Drives, Solar panels, LED luminous characters, light bars, light strips, module, and outdoor engineering lighting.
Note : 110V/220V is selected by switch before power on please check input voltage avoiding damage.
Features
-
Protects the device from an internal or external short circuit current.
- Protects the power supply from load faults such as short circuits and open circuits.

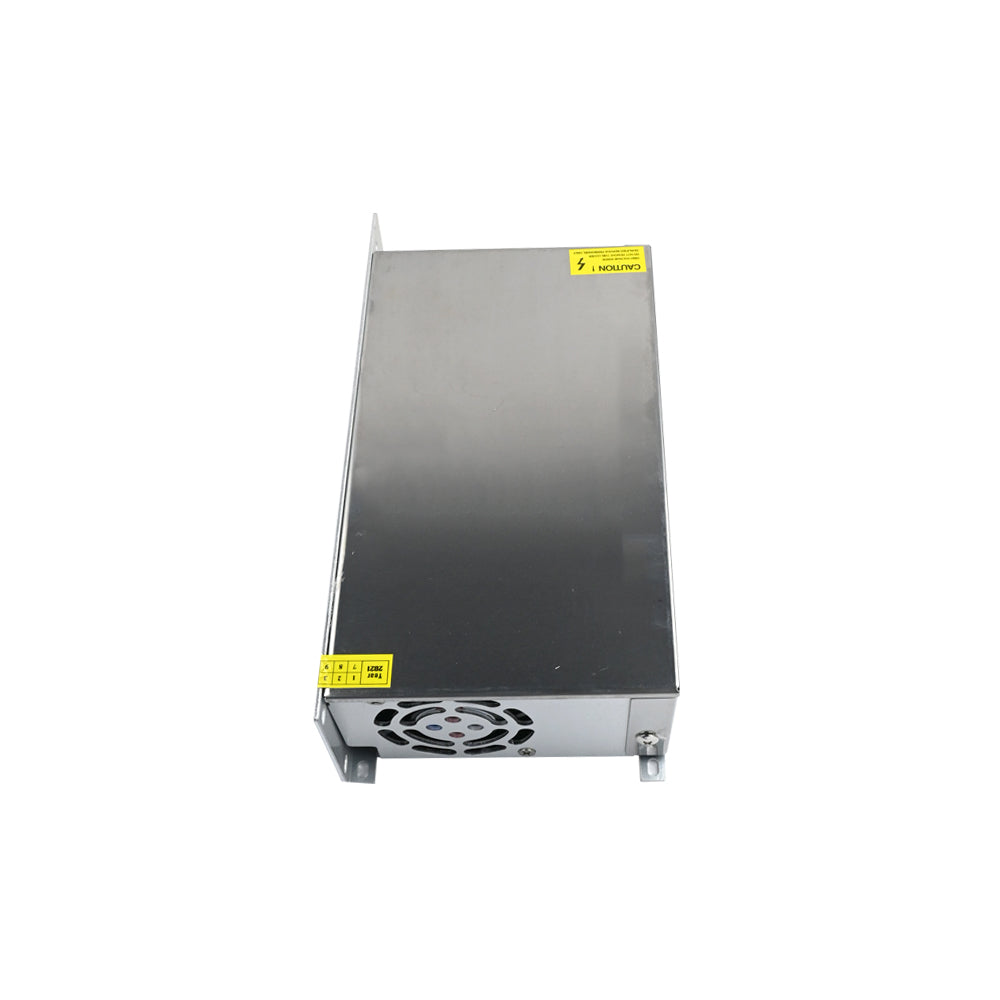

- The power supply is cooled by forced air into the device, normally using a fan.
- The power supply corrects the phase difference between voltage and current in order to optimize power output.
Specifications
| Model | HPMN300R |
| Brand | Hi-Light |
| Type | SMPS Power Supply |
| Input Voltage | 220V/110V AC (Selector Switch) |
| Output Voltage | 48V DC |
| Current | 10A |
| No. of Terminals |
09 |
| Dimension | 243*123*68.8mm |
| No. of input terminals | 03 |
| No. of output terminals | 06 |
| Country of Origin | China |
