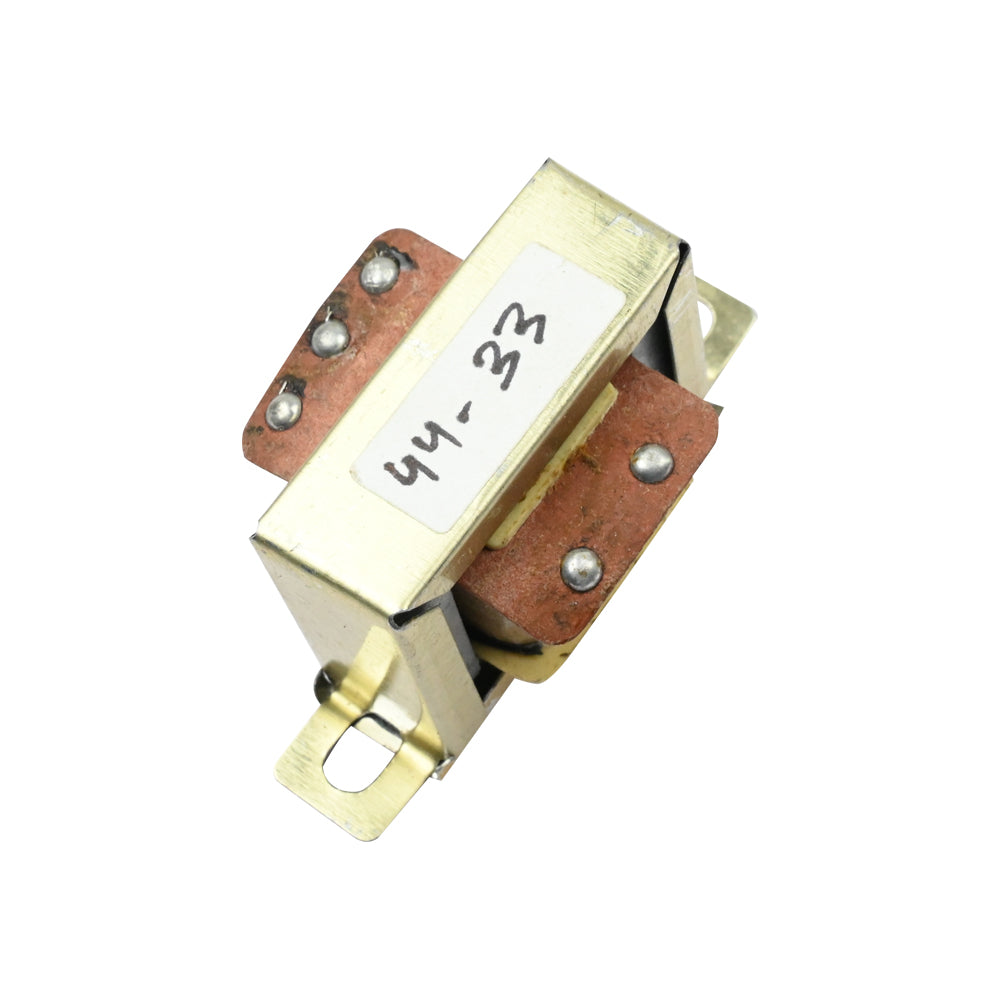

Hi-tech 6-0-6 6V 200ma Center Tapped Transformer

Sold By: HatchnHackSKU: J10-16

Sale price₹ 57.82

Tax included Shipping calculated at checkout

Out of stock


6-0-6 6V 200mA Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The Transformer act as step down transformer reducing AC - 240V to AC - 6V. The Transformer is a center tapped transformer which gives two outputs of 6V, 6V and 0V. We can connect two 6V loads or one 12V load to the transformer. A center tapped transformer has equal winding in primary and secondary coil, which is mostly prefer to used in Rectification Circuit. Like in full wave rectifier, LED Driver, SMPS, UPS DC motor Driver.


  • Soft Iron Core.
  • 200mA Current Drain
  • Center Tapped Transformer
  • Applications: On chassis AC/AC converter, Designing a battery Charger.
Frequency 50/60Hz
Output Current 200mA
Mounting Type Panel Mount
Type Transformer
Dimension 60x38x15mm
Voltage 6V
Winding Type Copper Winding
