Description

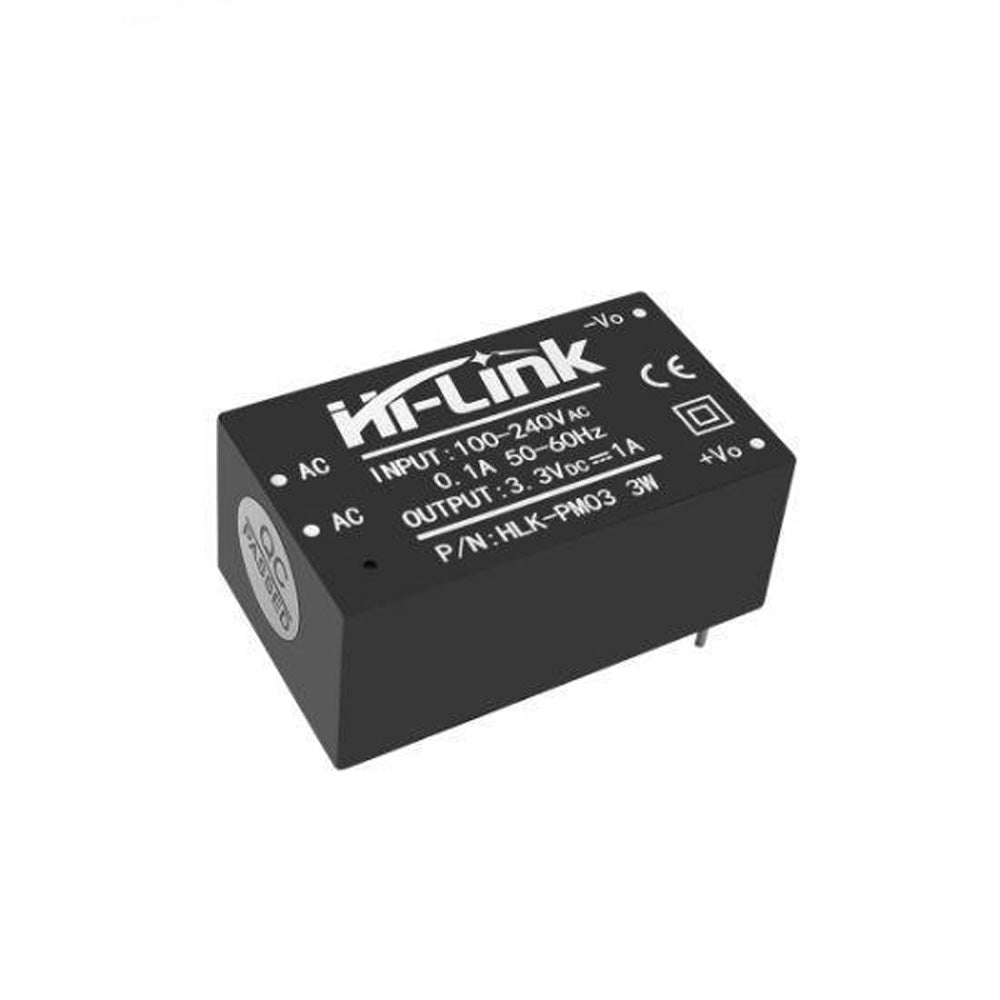

It's a Hi-Link PM03 3.3V 3W AC-DC Power Converter . This is a PCB mountable module. It has low power consumption, environmental protection, no load loss, high efficiency, high power density. It has also output overload and short circuit protection.
Features
- It is PCB mountable
- Low power consumption, environmental protection, no-load loss <0.1W
- High efficiency, high power density
- Output overload and short circuit protection
- Module | Power Supply Module | AC-DC Converter | DIY Projects | Home Automation.
Specification
| Brand | Hi Link |
| Model number | HLK-PM03 |
| Input Voltage | 100V-240V AC |
| Output | 3.3V, 900mA |
| Power | 3W |
| Input Low Voltage Efficiency | 69% @ 110V AC & Full Load output |
| Input High Voltage Efficiency | 70% @ 220V AC & Full Load output |
| Maximum input current |
0.2A |
| Maximum Input Current Surge | 10A |
| Voltage Regulation | ±0.2 % |
| Load Regulation | ±0.5 % |
| Dimension (LxWxH) | 34x20x15 (mm) |
| Pin Distance | Please Refer the Image Below |
| Country of Origin | China |
